Testo
Testo 557s Digital Manifold Gauge Kit
Look no further if you're after an absolute bargain for your next digital gauges.

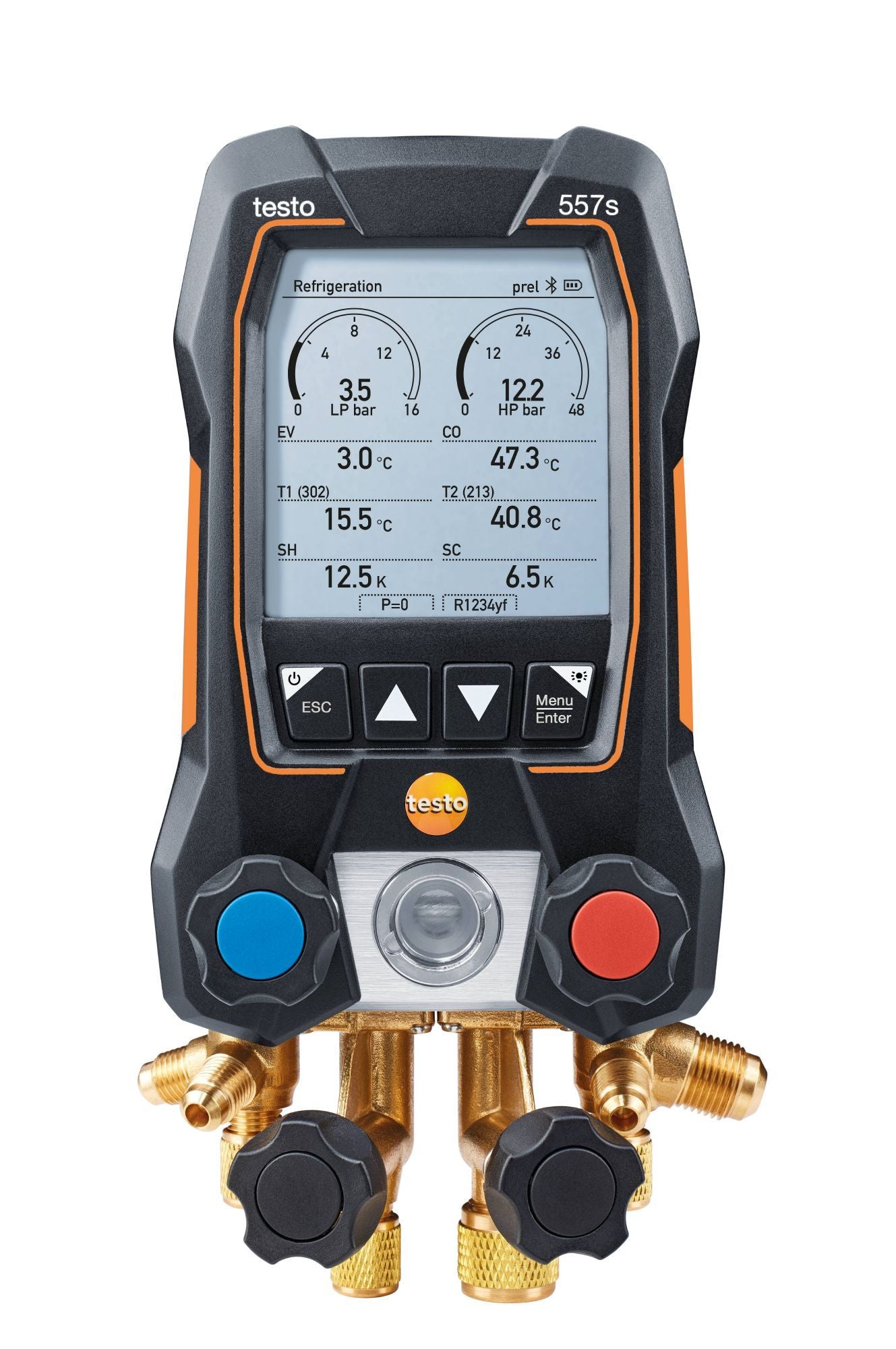

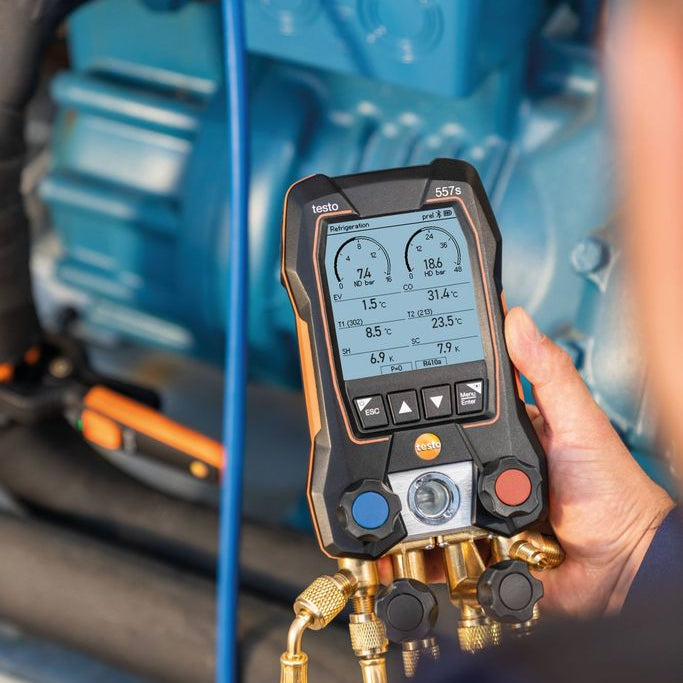

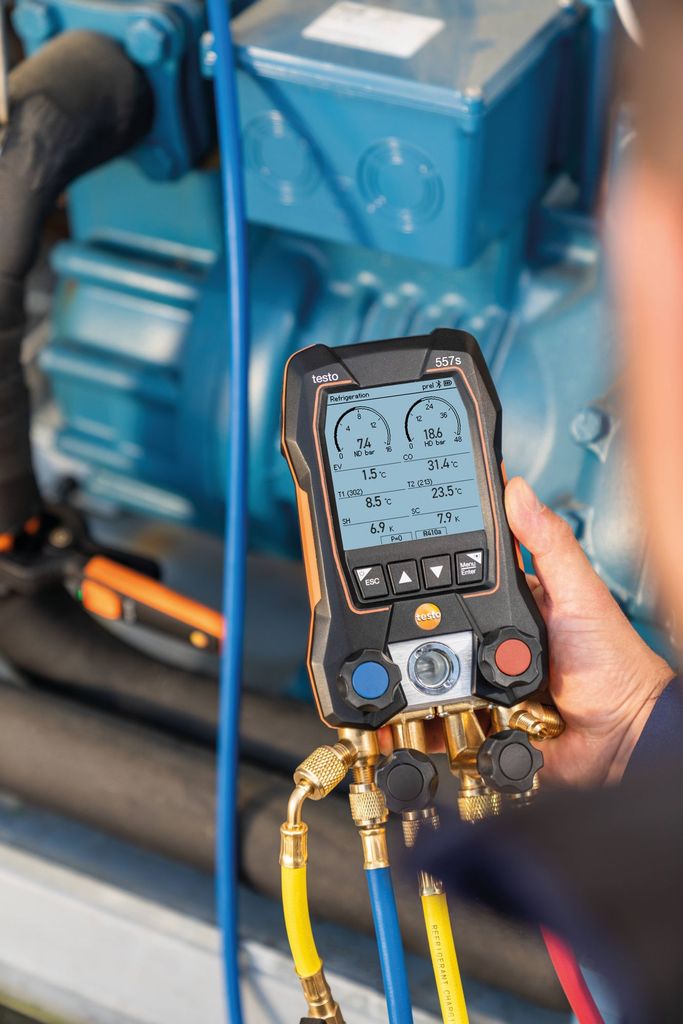

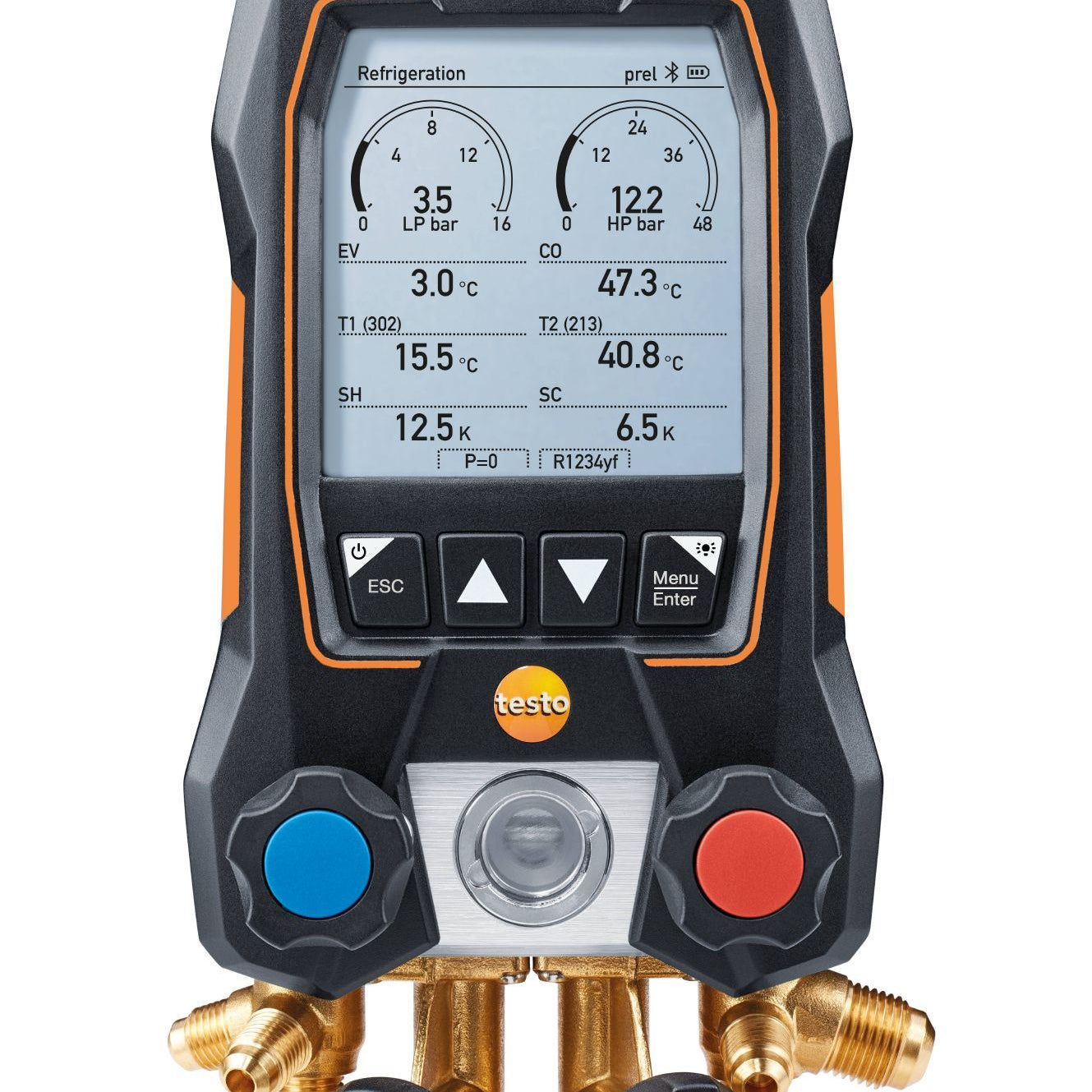

The Testo 557 digital refrigeration gauge has a 4-way valve block, a large backlit display, and sight glass. Two NTC thermistor clamp probes provide superior accuracy of simultaneous, real-time superheat and sub-cooling readings. An external vacuum probe provides fast and more reliable evacuation of the system.
If you add up the cost of buying all those instruments individually, you can see why it makes sense to own this amazing piece of kit.

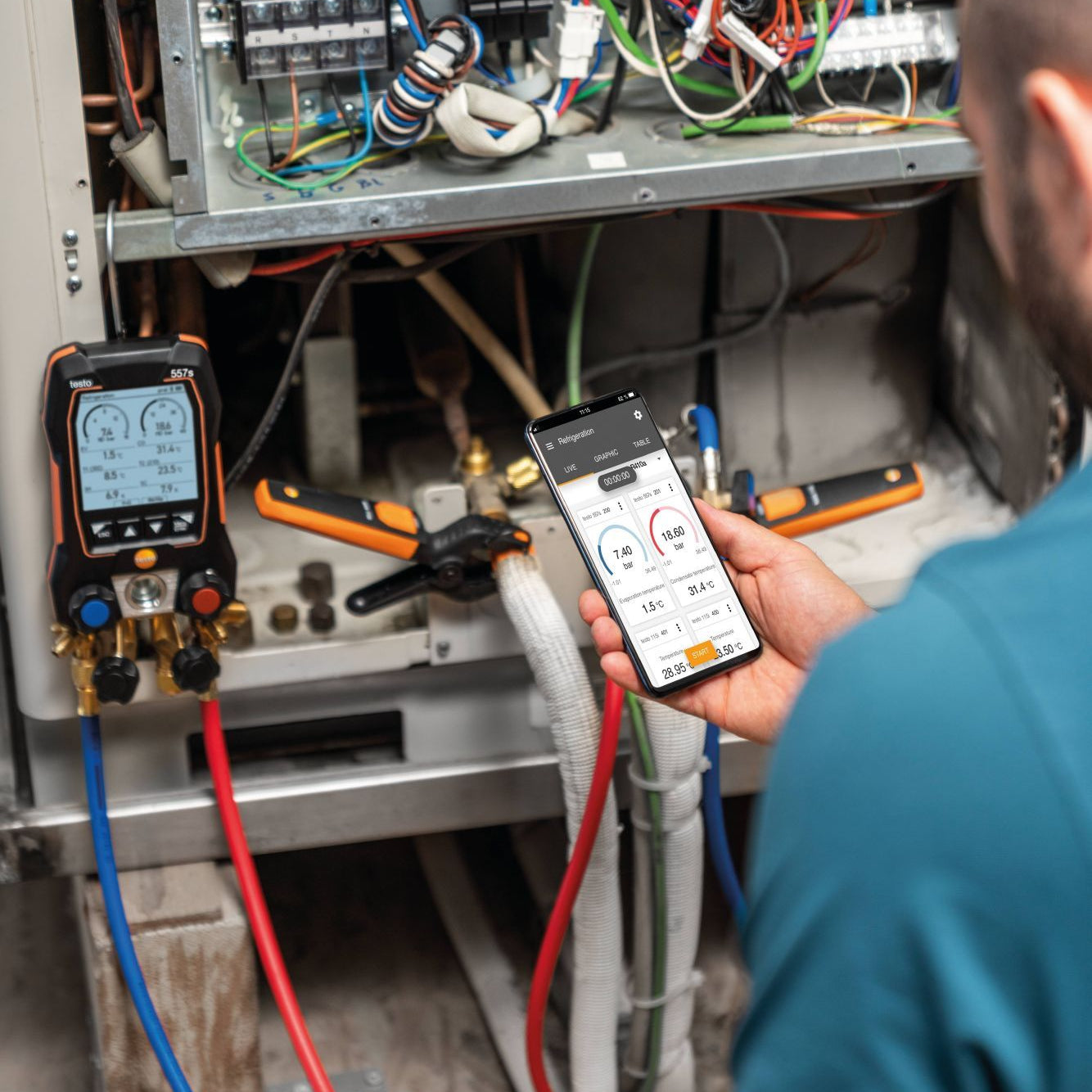

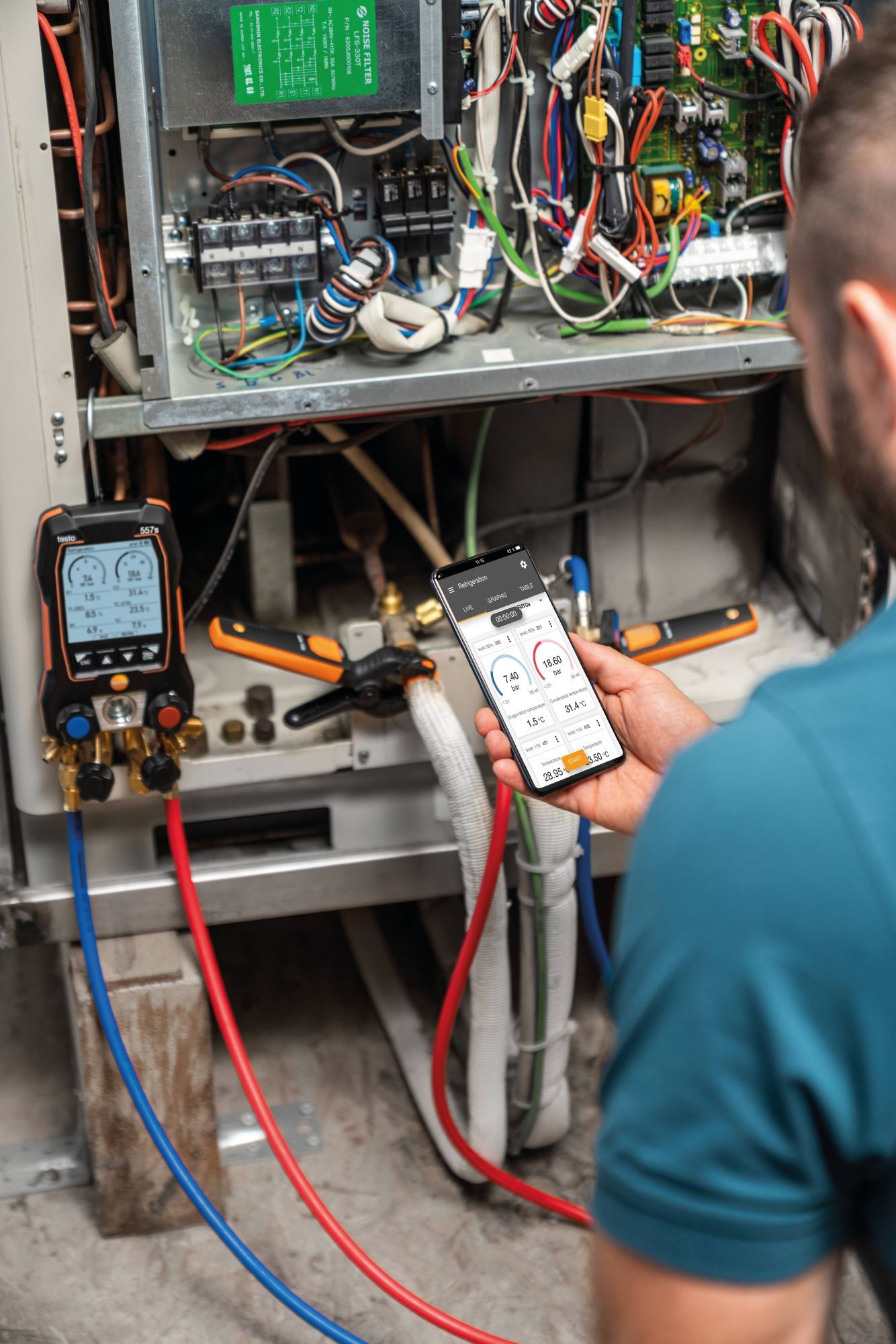

The gauges allow you to connect via Wireless Bluetooth to a Testo App, which lets you view measurement data on your Smartphone or Tablet and quickly complete and save all data corresponding to your job. You can then email your customer the service reports and invoice from the job site.
In addition to the 60 refrigerant profiles stored in the instrument, the App can also be used to download new refrigerants from the Internet directly into the digital manifold.
Key Features
- 90 Built in refrigerants
- -1 to 60 Bar Pressure
- 4-way valve block with four connections (3 x 7/16" – UNF + 1 x 5/8'' – UNF)
- Compact, easy-to-handle, robust housing with IP 54 protection class
- External vacuum probe for faster and more reliable evacuation of the system
- Wireless temperature and vacuum measurements via automatic Bluetooth connection
- Measures high side / low side pressures and temperatures
- Guided measurement menus for target superheat, vacuum, and pressure loss
- On-site monitoring and documentation via testo Smart App
- Large graphic display to evaluate results in graphic form
- 90 selectable refrigerants in the instrument
- Refrigerant management in the App with favourites and automatic updates

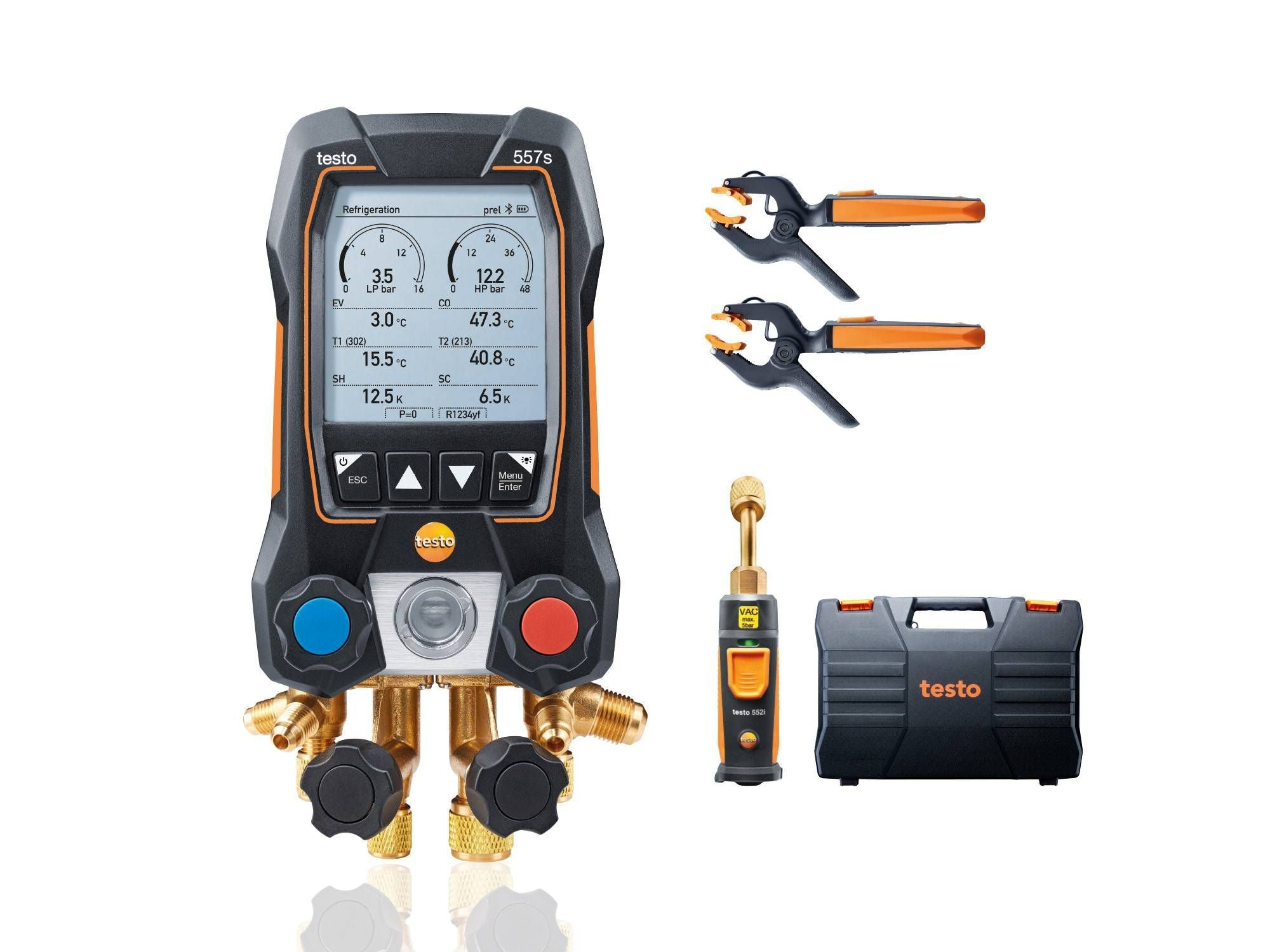

Package Includes
In this Testo 557s Smart Vacuum Kit, you will receive the following:
- Testo 557s Smart digital 4-way manifold
- 1 x Testo 552i wireless Bluetooth vacuum probe
- 2 x Testo 115i wireless Bluetooth clamp temperature probe
- Protective Case
- Batteries
- Testo Smart App (free download)
- Certificate of conformity and user's manual
Specifications
- Storage Temperature: -20 to + 60°C
- Operating Temperature: -20 to +50 °C
- Battery Type: 4 AA Batteries
- Battery Life:
- 250 hours with no illumination, no Bluetooth
- 100 hours with illumination and Bluetooth
- Auto Power Off: After 10 minutes, when not connected via Bluetooth
- Dimensions - 229 x 112.5 x 71 mm
- Resolution - 0.1 °C
- Vacuum Measurement: 0 to 26.66 mbar/0 to 20000 microns
- Low-Pressure Probe Measurement: -1 to 60 Bar
Instruction Manual
Testo 557s Smart Digital Manifold With Wireless Vacuum And Clamp Temperature Probes 0564 5571 Manual
