Description
Overview

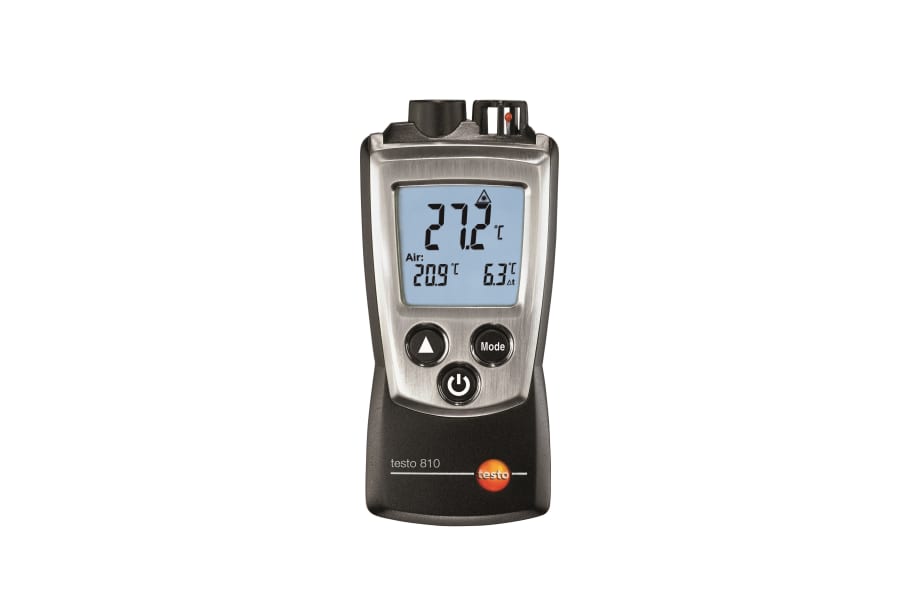

The Testo 810 infrared thermometer (SKU 0560 0810) is a versatile instrument designed for HVAC professionals, offering simultaneous, non-contact measurement of surface temperature and precise air temperature readings. This dual-channel capability allows for a comprehensive assessment of thermal conditions.
It automatically calculates and displays the temperature difference between the surface and the ambient air, providing immediate insights crucial for diagnostics in heating, ventilation, and air conditioning systems. Its compact design ensures it's always ready when you need it, fitting conveniently in your pocket.
Why It Matters
In HVAC diagnostics, understanding the relationship between surface and air temperatures is paramount. The Testo 810 streamlines this process by delivering both measurements and their difference instantly, enabling technicians to quickly identify insulation issues, radiator performance, or draft sources without complex calculations or multiple tools.
What's Included
- Testo 810 infrared thermometer with integrated NTC temperature sensor
- Protective cap
- Calibration protocol
- Belt pouch
- Batteries (2 AAA micro batteries)
Features & Benefits
- Simultaneous measurement of surface and air temperature for comprehensive analysis.
- Non-contact infrared surface temperature measurement with integrated 1-point laser for precise targeting.
- Automatic display of the temperature difference for quick diagnostics.
- Adjustable emission level to optimize accuracy across different material surfaces.
- Highly accurate air temperature measurement via integrated NTC sensor.
- Compact size for easy portability and immediate availability.
- Min./max. display and hold function to capture and review measurement values.
- Durable design with protective cap and belt pouch for enhanced safety and longevity.
Applications
- Assessing surface temperatures of radiators, air vents, and windows.
- Comparing surface temperatures with ambient air to detect heat loss or gain.
- Quick checks in heating, ventilation, and air conditioning systems.
- Identifying cold spots or drafts in buildings.
Tradie Pro Tip
Always ensure you adjust the emission level on your Testo 810 to match the material you're measuring. Different surfaces have varying emissivities, and setting this correctly ensures the most accurate non-contact temperature readings, especially on reflective or shiny materials.
Technical Specifications
General technical data
| Parameter | Value |
|---|---|
| Weight | 90 g (incl. battery and protective cap) |
| Dimensions | 119 x 46 x 25 mm (incl. protective cap) |
| Operating temperature | -10 to +50 °C |
| Protection class | IP40 |
| Battery type | 2 AAA micro batteries |
| Battery life | 50 h (average, without display illumination) |
Temperature - NTC
| Parameter | Value |
|---|---|
| Measuring range | -10 to +50 °C |
| Accuracy | ±0.5 °C |
| Resolution | 0.1 °C |
| Measuring rate | 0.5 s |
Temperature - Infrared
| Parameter | Value |
|---|---|
| Measuring range | -30 to +300 °C |
| Accuracy | ±2.0 °C (-30 to +100 °C) ±2 % of mv Remaining Range |
| Measuring rate | 0.5 s |
| Infrared resolution | 0.1 °C |
Pair With
Complement your Testo 810 with Testo Emission Tape (0554 0051) for accurate measurements on reflective surfaces, or explore our range of Testo Calibration Certificates (e.g., 0520 0002) to maintain measurement accuracy. Consider pairing it with a Testo Thermal Imager for comprehensive visual temperature analysis across your HVAC projects.
Closing CTA
Experience precision and efficiency in your HVAC diagnostics with the Testo 810 Infrared Thermometer. Add this essential tool to your kit today for reliable, dual-channel temperature measurement and enhanced project success.
