Description
- Infrared thermometer for non-contact surface temperature measurements
- 10:1 optics and high-resolution processor for accurate measurement results
- Easy one-handed operation with ergonomic gun-style design
- Adjustable emissivity settings for improved material accuracy
Key Features

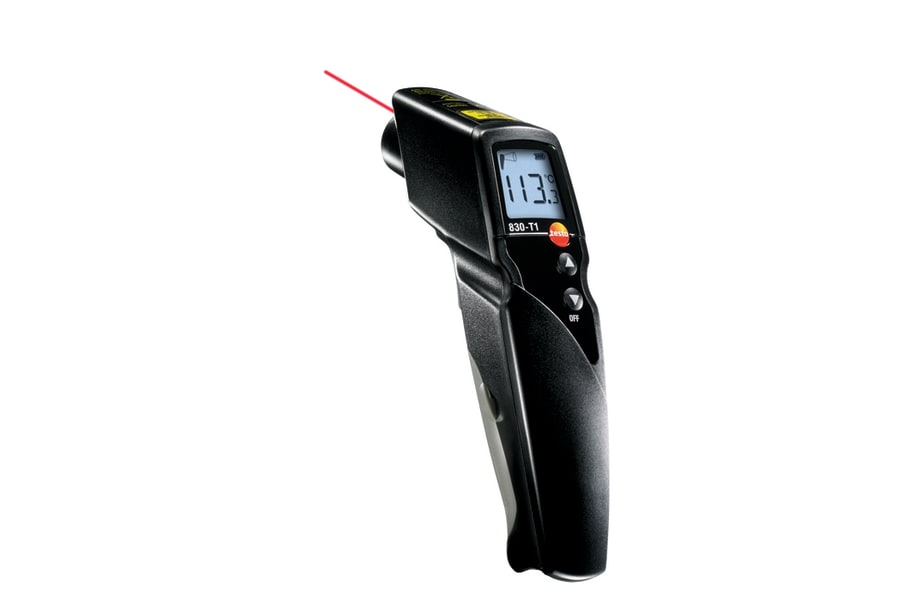

Non-contact surface temperature measurement is quick and accurate with the testo 830-T1 infrared thermometer, capturing up to two measurements per second. This makes it ideal for fast HVAC diagnostics, electrical inspections, airflow testing, and preventative maintenance checks.
- High-resolution processor with 0.1 °C resolution for accurate readings
- 10:1 optics ratio for precise measurements at medium distances
- Single-point laser targeting for accurate surface positioning
- Customisable high and low alarm limits
- Visual and audible alarm notifications when limits are exceeded
- Min/max display and hold function for recording measurements
- Comfortable ergonomic grip for long service calls
- Backlit display for easier readings in plant rooms and low-light work areas
The speed of the testo 830-T1 infrared thermometer makes larger inspection jobs faster and more efficient, helping technicians quickly identify abnormal temperatures across coils, ducts, motors, bearings, and electrical panels.
The adjustable emissivity setting allows the infrared thermometer to be matched to different material surfaces for more accurate readings. For untreated reflective surfaces with low emissivity, Testo recommends using emission tape to improve measurement consistency.
For HVAC temperature testing procedures, airflow diagnostics, and infrared measurement best practices, use the official Testo 830 infrared thermometer datasheet and user manual PDF .
| General Technical Data | |
|---|---|
|
Weight |
200 g |
|
Dimensions |
190 × 75 × 38 mm |
|
Operating temperature |
-20 to +50 °C |
|
Housing material |
ABS |
|
Battery type |
9V block battery |
|
Battery life |
Approx. 15 hours |
|
Storage temperature |
-40 to +70 °C |
| Temperature – Infrared | |
|---|---|
|
Measuring range |
-30 to +400 °C |
|
Accuracy |
±1.5 °C or ±1.5% of measured value (+0.1 to +400 °C) ±2 °C or ±2% of measured value (-30 to 0 °C) |
|
Measuring rate |
0.5 seconds |
|
Infrared resolution |
0.1 °C |
What’s Included
Testo 830-T1 infrared thermometer including batteries and calibration certificate.
Instructions & Manuals
Testo 830 infrared thermometer datasheet and instruction manual PDF
HACCP certification for HVAC temperature monitoring equipment
EU declaration of conformity for Testo 830-T1 infrared thermometer
Warranty
2 Years Manufacturer's Warranty
