Testo 830-T4 Infrared Thermometer Set

Name: Testo 830-T4 Infrared Thermometer Set
Brand: Testo
SKU: 0563 8314
Price: 711.76 AUD
Availability: InStock

🛠️ Need the Right HVAC Tool for the Job?

Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.

Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.

📩 Request a Quote

The Testo 830-T4 Infrared Thermometer Set (SKU: 0563 8314) offers unparalleled versatility for professional surface temperature measurement. This comprehensive kit includes the high-precision Testo 830-T4 IR thermometer, a robust protective leather sleeve, and a specialized cross-band surface probe, ensuring you are equipped for both non-contact and precise contact measurements on various surfaces.

Designed for rapid and accurate temperature acquisition in both trade and industrial settings, the 830-T4 allows for quick checks from a distance and detailed contact measurements when needed. Its user-friendly gun-style design ensures comfortable handling, making complex tasks straightforward.

Why It Matters

Accurate surface temperature measurement is crucial for diagnosing HVAC system issues, performing energy audits, identifying overheating components, and ensuring process control in industrial applications. The ability to perform both non-contact scans for rapid assessment and contact measurements for verification and emissivity determination significantly enhances diagnostic capabilities and operational efficiency.

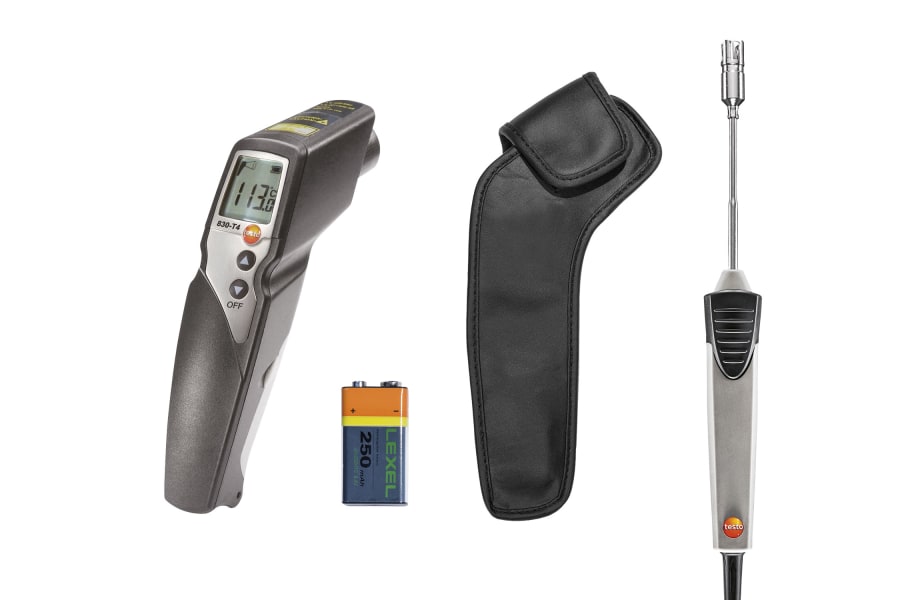

What's Included

Testo 830-T4 Infrared Thermometer
Cross-band surface probe
Protective leather case
9V block battery
Calibration protocol

Features & Benefits

Precise 2-point laser marking for clear identification of the measurement spot, ensuring accuracy.
Advanced 30:1 optics enable accurate measurement of small objects from a safe distance (e.g., 36 mm spot at 1 m).
Ergonomic gun-style design provides easy and comfortable handling during prolonged use.
Integrated limit value control with min./max. function, offering visual and acoustic alerts when thresholds are exceeded.
High resolution of 0.1°C for detecting even very small temperature differences.
Included cross-band surface probe allows for precise contact measurements, suitable for uneven surfaces.
Contact measurement capability assists in determining surface emissivity for optimized IR measurement accuracy.

Applications

HVAC diagnostics and maintenance (e.g., checking heating pipes, ventilation ducts).
Electrical component inspection to detect overheating.
Industrial process monitoring and quality control.
Building inspection for energy efficiency audits and insulation checks.
Automotive diagnostics for engine or brake system temperatures.

Tradie Pro Tip

When using an infrared thermometer, always remember that shiny or reflective surfaces can skew readings. Use the included cross-band surface probe to determine the actual surface temperature, which in turn helps you accurately set the emissivity on your IR thermometer for the most reliable non-contact measurements. If reflective surfaces are unavoidable, apply Testo's emission tape for consistent results!

Technical Specifications

General Data

Parameter	Value
Weight	200 g
Dimensions	190 x 75 x 38 mm
Operating temperature	-20 to +50 °C
Product-/housing material	ABS
Battery type	9V block battery
Battery life	15 h
Storage temperature	-40 to +70 °C

Temperature - TC Type K (NiCr-Ni)

Parameter	Value
Measuring range	-50 to +500 °C
Accuracy	±0.5 °C + 0.5 % of mv
Resolution	0.1 °C
Measuring rate	1.75 s

Temperature - Infrared

Parameter	Value
Measuring range	-30 to +400 °C
Accuracy	±1 °C or ±1 % of mv (Remaining Range); ±2 °C (-30 to -20.1 °C); ±1.5 °C (-20 to 0 °C)
Resolution	0.1 °C
Measuring rate	0.5 s

Pair With

Testo Emission Tape 0554 0051 (for reflective surfaces)
ISO Temperature Calibration Certificate (for ongoing accuracy verification)
Testo Surface Probes (for extended contact measurement needs)

Elevate your temperature measurement capabilities with the Testo 830-T4 Infrared Thermometer Set. Order now from HVAC Shop and experience precision, versatility, and reliability in every reading.

Common Questions for Testo 830-T4 Infrared Thermometer Set

What is the purpose of the 2-point laser marking on the Testo 830-T4?

The 2-point laser marking clearly indicates the exact location and size of the measurement spot on the surface. This ensures that you are measuring the intended area precisely, enhancing accuracy and confidence in your readings, especially when measuring from a distance.

How does the 30:1 optics ratio benefit my measurements?

A 30:1 optics ratio means the thermometer can measure a small spot size from a greater distance. For example, at 1 meter distance, the measuring spot diameter is only 36 mm. This allows you to accurately measure the temperature of smaller objects or components from a safe and comfortable working distance, such as heating pipes, without needing to get too close.

Why is a cross-band surface probe included with an infrared thermometer?

While infrared thermometers provide quick, non-contact measurements, a contact probe offers crucial benefits. The included cross-band surface probe allows for precise contact measurements, which can be essential for control purposes, verifying IR readings, or especially for accurately determining the emission level of a specific surface material. Knowing the correct emissivity ensures the subsequent non-contact IR measurements are as accurate as possible.
