Imperial
2 Piston Valve Multi-Refrigerant Gauge Set w/ 90cm Hoses
$335.95
$419.95
Manifold gauge sets—also called HVAC gauges or refrigeration gauges—are frequently used to diagnose and repair cooling or refrigeration systems. They measure low- and high-refrigerant pressure using mechanical or digital gauges to identify issues like leaks or to help with system evacuation and recharge.
Professionals wishing to vacuum, diagnose, charge, or evacuate the refrigerant in vehicle air conditioning systems can use our high-quality manifold gauge and hose set.

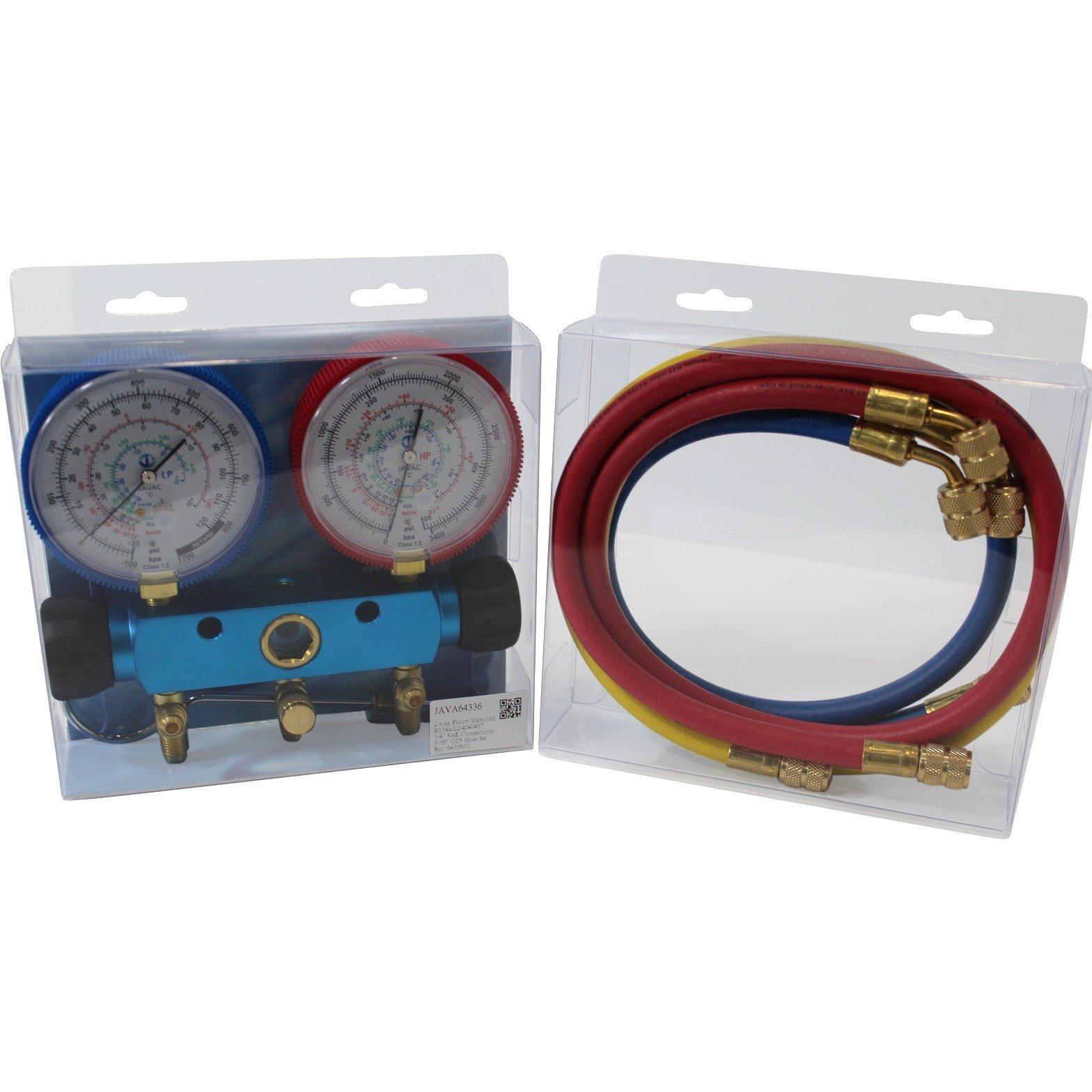

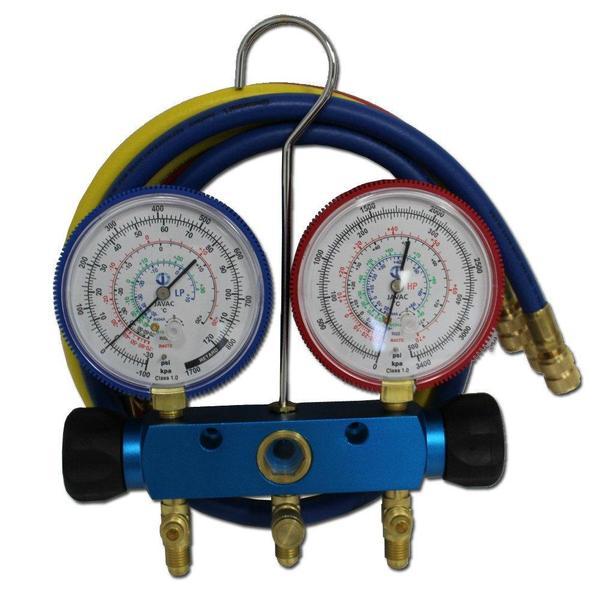

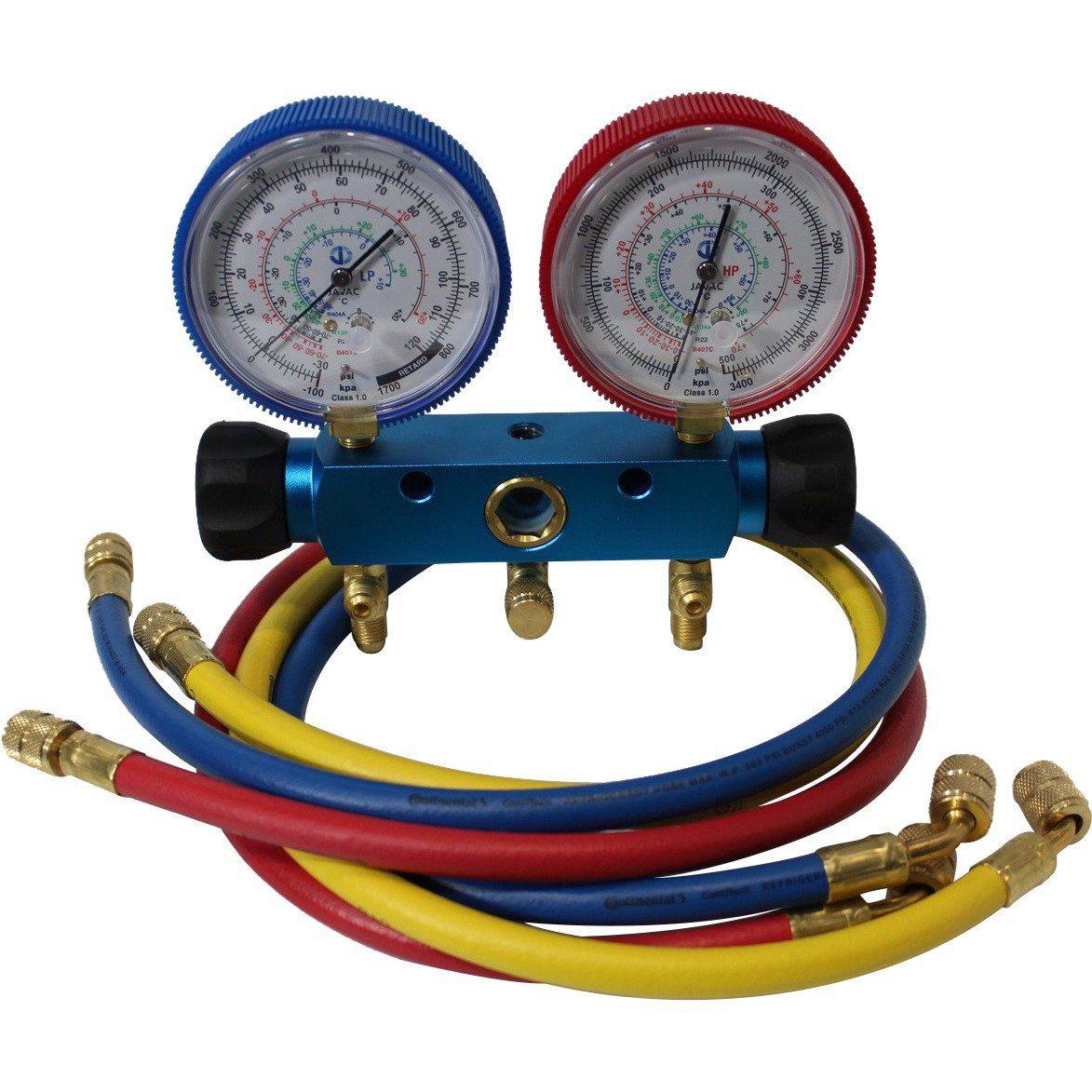

2 Piston valve multi-refrigerant manifold designed for R134a, R22, R404A and R406 refrigerants, with 90cm hose set and 70mm gauge head.
Specifications
- High quality extruded aluminium body, precisely machined and colour anodized
- Teflon diaphragm-valve mechanism, excellent sealing & large flow

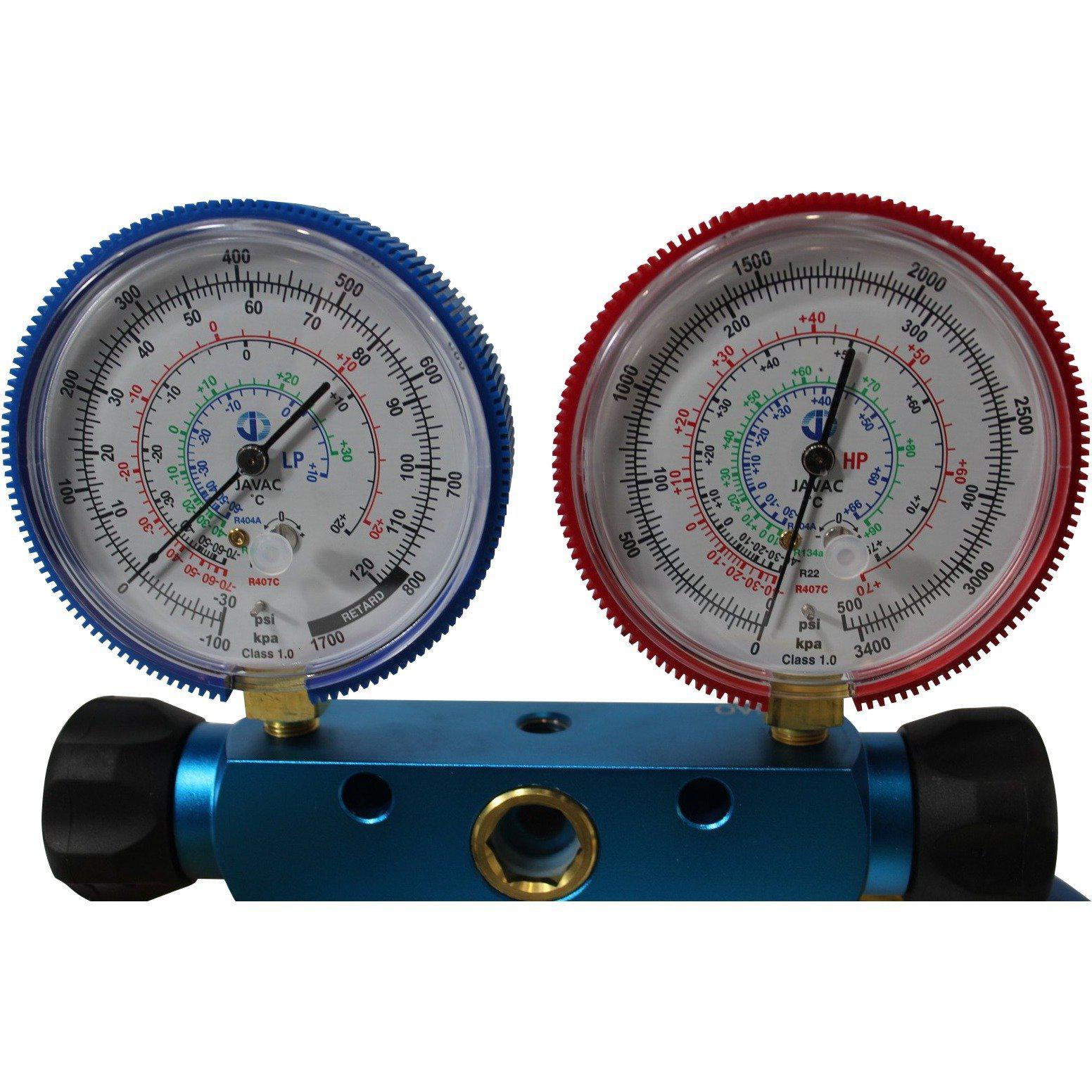

- 80mm gauges with soft cushion protective cover, class 1.0 accuracy, pulse-free pointer, zero-pointed calibration, and colour coded
- Extra large sight glass for visual refrigerant check
- Soft ergonomic with colour coded knobs * Heavy-duty swivel hanging hook
- Goodyear GY5 hose sets meet UL1963 & SAE J196 standard, 800psi (55bar) working pressure, 4000psi (276bar) burst pressure
