Description
Key Features
- Individually calibrated to strict NIST standards with an accuracy of ± 10 % of reading
- Incorporates surface mount technology for exceptional performance and reliability
- Advanced circuit design automatically compensates for ambient temperature changes
- Field cleanable sensor with extended range from atmosphere down to 0 microns
- Selectable measurement units in Microns, Torr, in/hg or mBar
What's Included

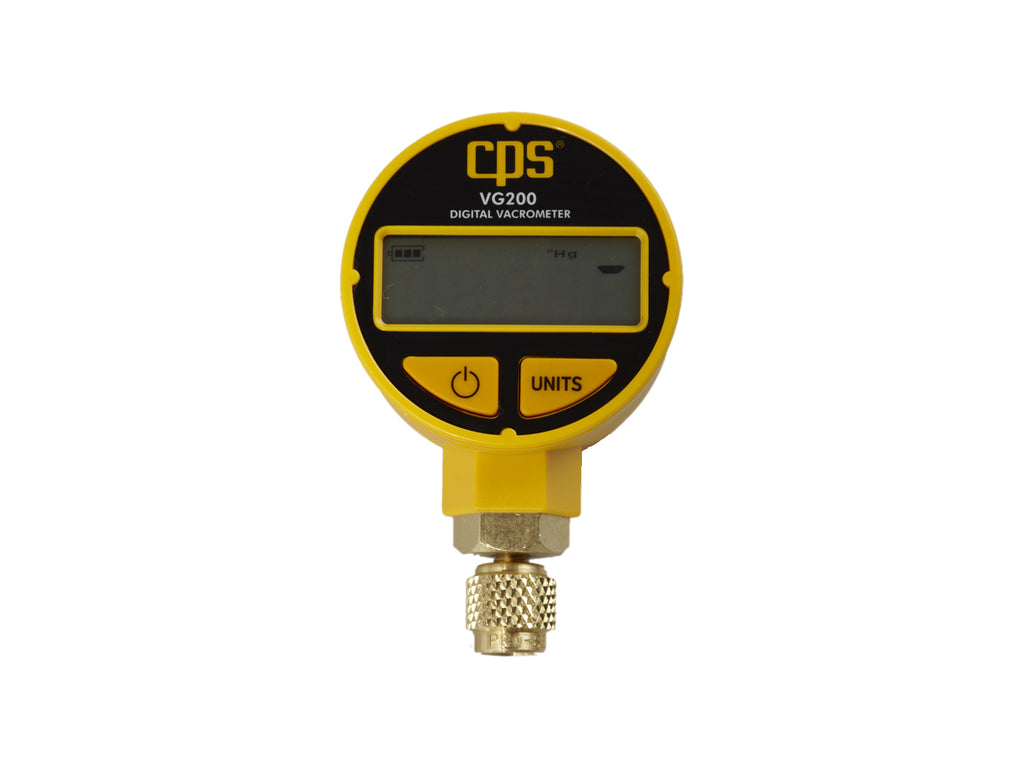

- CPS Digital Vacuum Gauge VG200
- Gauge Hook
- Adapter "T-fitting"
- Padded Vinyl Case
Technical Specifications
| Specification | Details |
|---|---|
| Sensor Type | Self-heated thermistor bridge with integral temperature compensation |
| Operating Pressure Range | Atmospheric pressure to 0 microns |
| Maximum Working Pressure | 400 PSIG |
| Burst Pressure | 800 PSIG |
| Operating Temperature Range | 0°C to 50°C (32°F to 122°F) |
| Power Source | One 9V alkaline battery |
| Battery Life | 20 hours of continuous use |
| Connection | Standard 1/4" female SAE refrigerant hose w/ core depressor |
