Fieldpiece
MG44 : Vacuum Gauge Wireless Probe with LCD
$572.95
$716.95

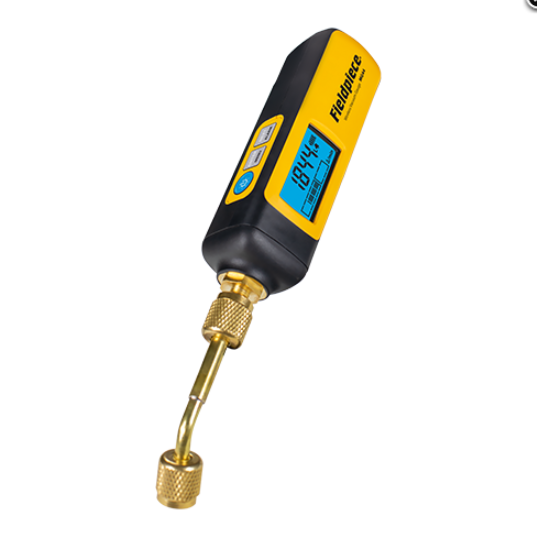

MG44 Digital Wireless Probe Vacuum Gauge
MG44: Micron Gauge Impact & Weather Resistant designed for the field.
Like every piece of Fieldpiece hardware, the Wireless Vacuum Gauge (MG44) is built to make your work easier. It helps eliminate misleading measurements by allowing you to connect it at the system port – even those awkward, hard-to-reach spots. It’s also housed in a rugged impact- and weather-resistant case.
FEATURES
- Confidently perform evacuations with a reliable, leak-proof seal.
- Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
-
There are three ways to use:
- View from up to 300 metres away [line of sight] via the Job Link® mobile app
- View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT
- View direct from the MG44’s display.
-
Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including
- bar graph
- rate
- rate meter
- IP54-rated weather-resistant.
- Rugged over-molded construction for extreme impact resistance.
- Range 50 to 25,000 microns
- Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals

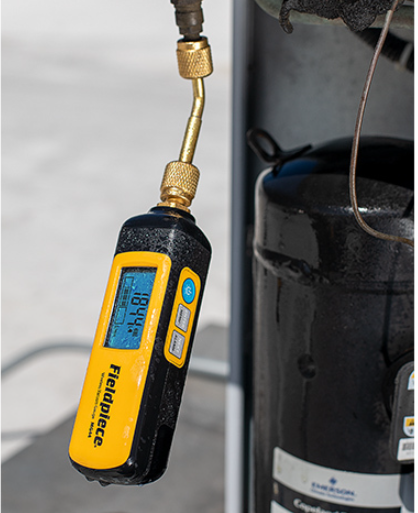

Install anywhere – even one-handed.
The new, smaller cylindrical shape of the Wireless Vacuum Gauge with its no-slip grip, and the addition of a reversible angled coupler—means the MG44 is easy to manipulate and install in the toughest spots.
Fieldpiece delivers the tools needed for your diagnostic measurements. Save the results in your service or commisioning PDF report. Free to download for the base user.
(MG44)
