Description
Built for trade pros. Copeland ZR three-phase scrolls are the go-to replacement compressors for Australian commercial A/C and light-med refrigeration using R22 or R407C. They’re proven tough on rooftops, quiet in plant rooms, and efficient where it counts — so you’re back off the ladder faster, with fewer call-backs. Fair dinkum.
Who it’s for
Licensed HVAC & refrigeration techs, service contractors, and apprentices needing a dependable 3-phase scroll for packaged A/C, commercial splits, rooftops, heat pumps and rack retrofits
Key Features & Trade Benefits
- Scroll reliability (ZR series): Robust compression with low vibration → fewer noise complaints and longer life on rooftop installs.
- 3-phase TFD-522 motor: 380–420 V, 50 Hz startup with balanced load → smoother starts, less stress on contactors.
- POE oil pre-charge: Compatible with R22/R407C retrofits → quicker changeouts, no mucking around with oil swaps.
- Stub tube connections: Brazing-ready stubs → clean, fast piping on replacements.
- Compact & quiet: Helps meet noise expectations in offices, clinics and retail fitouts.
- Phase-rotation friendly: Easy to verify correct rotation at start-up → avoid “runs but no pumping” surprises.
Why This Product Matters
When you’re up on a roof in 40-degree heat, you want a compressor that just slots in and gets the job done. The ZR series gives you predictable performance on legacy R22 systems and R407C retrofits, with a POE charge that plays nicely across these gases. Last week in Brisbane we swapped a tired unit on a small office rooftop — wired, brazed, nitrogen tested, evacuated, and live within the hour. Client happy, crew back on the road. Too easy.
Shopping around? You can compare a popular model like ZR160KCE-TFD-522 for current pricing and lead times.
Pro Tip
On first start, confirm correct rotation: suction pressure should drop and discharge should rise within seconds. If not, swap two supply phases or fit a phase monitor. It’ll save a return visit — and your Saturday. She’ll be right after that.
Compatibility & System Info
- Refrigerants: R22 and R407C (check model sheet for any R134a approvals on specific sizes). ZR series are not R410A models — use ZP series for R410A.
- Electrical: 3-phase, 380–420 V, 50 Hz (suffix TFD-522).
- Oil: POE factory charge.
- Connections: Stub tube (sizes vary by model; see table below).
What’s Included

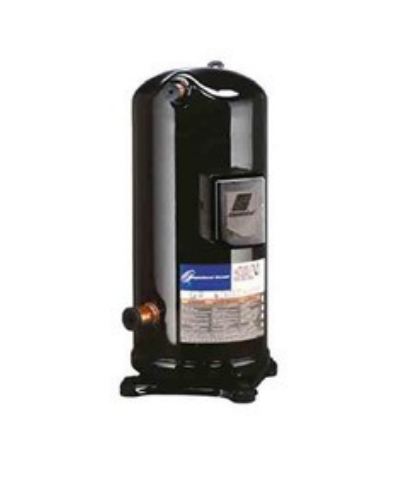

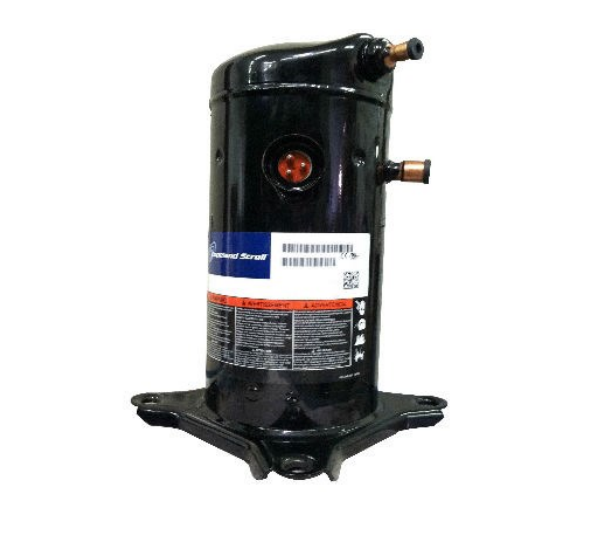

- Copeland ZR scroll compressor (ZR**KCE-TFD-522)
- Factory POE oil charge
- Stub connections ready for brazing
- Manufacturer documentation
Specifications (Snapshot)
Quick reference for common 3-phase models. Always verify with the model datasheet before ordering.
| Model | Phase / Voltage | Refrigerant | Displacement (m³/h) | Weight | Notes |
|---|---|---|---|---|---|
| ZR61KCE-TFD-522 | 3φ 380–420 V 50 Hz | R22 / R407C | ≈14.3 | – | Compact rooftop & small commercial A/C. |
| ZR72KCE-TFD-522 | 3φ 380–420 V 50 Hz | R22 / R407C | – | ≈30.5 kg | Low sound power; packaged A/C & multi-split. |
| ZR81KCE-TFD-522 | 3φ 380–420 V 50 Hz | R22 / R407C | – | – | High-capacity commercial duty. |
| ZR160KCE-TFD-522 | 3φ 380–420 V 50 Hz | R22 / R407C | – | – | Popular replacement — see live pricing. Open model page. |
| ZR190KCE-TFD-522 | 3φ 380–420 V 50 Hz | R22 / R407C | – | – | Large rooftop/plant — verify stub sizes before ordering. |
Specs above are excerpted from Copeland model sheets and distributor listings; confirm final selection against the OEM datasheet for your exact operating envelope.
FAQs
Can I drop a ZR scroll into an old R22 system?
Usually, yes — the ZR series supports R22 and R407C. Make sure you address oil, charge, and expansion device sizing per the datasheet, and follow Australian refrigerant-handling rules. See federal guidance.
Do I need a phase monitor?
Highly recommended. Incorrect phase rotation means “running” but not pumping. Verify rotation at first start and add a monitor on sensitive sites to prevent reverse-phase restarts.
Is this compressor okay for R410A?
No — ZR is for legacy R22/R407C duty. For R410A, spec a Copeland ZP series scroll.
Warranty & Returns
All HVAC Shop products are backed by the manufacturer’s warranty (minimum 12 months). Returns accepted within 30 days for unused items in original packaging. Read Shipping & Returns.
Related Products (hand-picked for a smoother install)
- Nylog Blue Gasket & Thread Sealant — handy insurance against weeps at stubs and service ports.
- Fieldpiece Vacuum Pack — pull down fast and prove a tight system before charge.
- Imperial PolarShield 72″ Hoses — tough hoses that hold up on hot decks.
Local Jobsite Note (AU)
Working coastal Sydney rooftops or steamy Brisbane plant rooms? Salt air and heat cycles are brutal. Keep brazes clean, nitrogen-purge, then evacuate properly — you’ll avoid acid burnouts and keep the site manager off your back. No worries. Here’s a quick vacuum set-up refresher.
Model Reference Quick Jumps
ZR61KCE-TFD-522
3-phase variant for small commercial splits/ducted units. Approx. 14.3 m³/h displacement; POE; R22/R407C.
ZR72KCE-TFD-522
Reliable rooftop choice with low sound power and ~30.5 kg weight for easy handling.
ZR81KCE-TFD-522
Suited to higher loads in packaged A/C and multi-zones. Verify envelope and line sizes per datasheet.
ZR190KCE-TFD-522
Top-end model for heavier commercial duty — confirm stub dimensions and MCC before ordering.
Compliance reminder: Australian refrigerant handling requires licensing and adherence to the current Code of Practice. Check the official guidance before site work.
