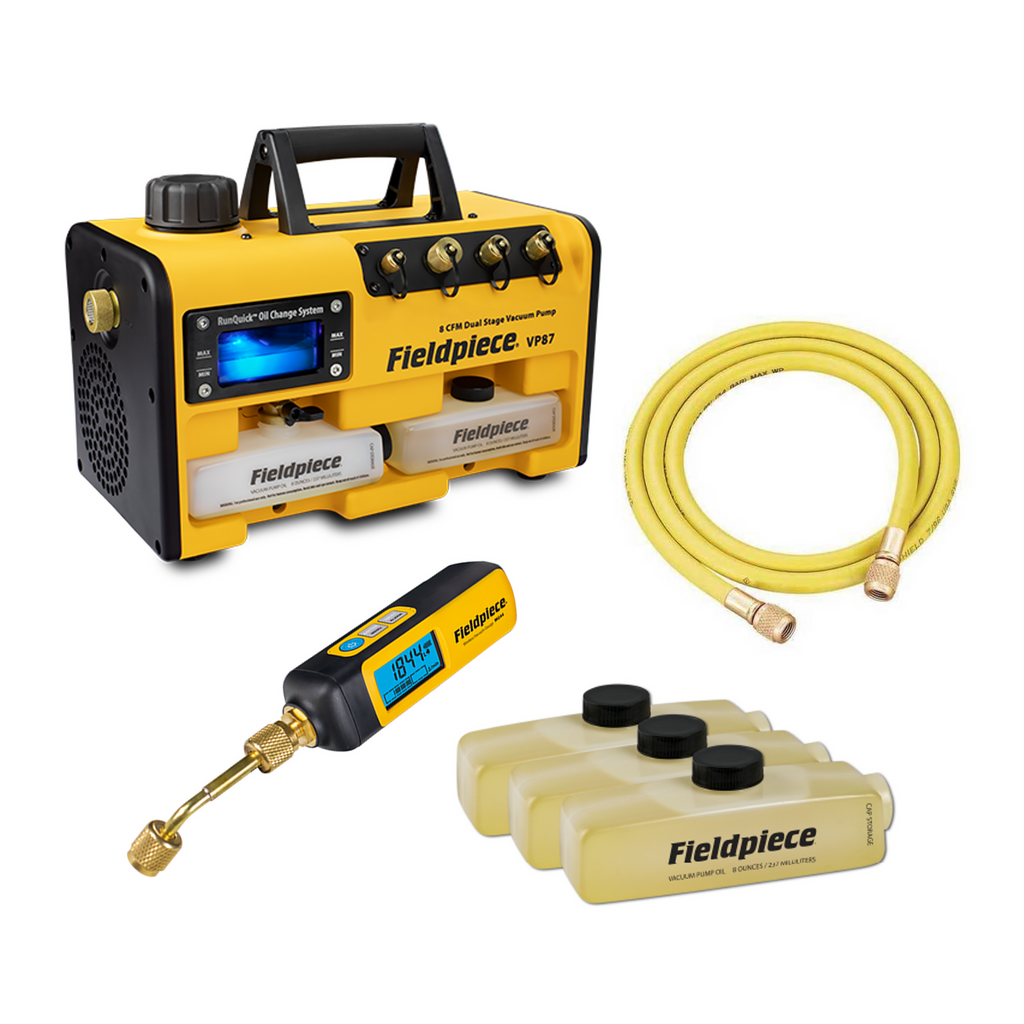

Fieldpiece Vacuum Pack

This Fieldpiece  HVAC-R exclusive Vacuum Pack for air conditioning and refrigeration includes:

• 1 x Fieldpiece VP87 227 L/M 8 CFM A2L Certified 2 Stage Vacuum Pump - VP87INT
• 1 x Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44
• 1 x Fieldpiece High Grade Vacuum Pump Oil - OIL8x3
• 1 x Imperial Standard Charging Hose Yellow 240cm 1/4 SAE - 808-MRY

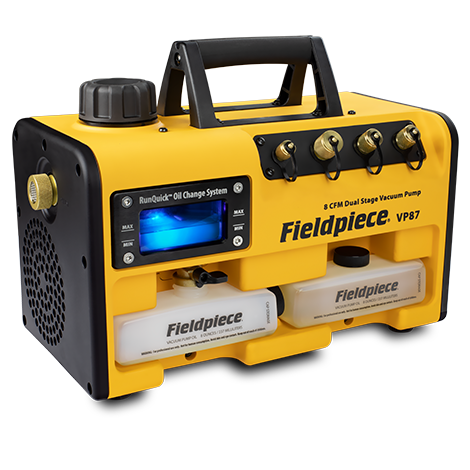

Fieldpiece VP87 227 L/M 8 CFM A2L Certified 2 Stage Vacuum Pump - VP87INT

The NEW Fieldpiece VP87INT High-Efficiency Vacuum Pump

• 8 CFM (227 l/m) flow rate with 15 microns ultimate vacuum
• 3/4 HP DC motor for power-to-weight and low voltage operation
• RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
• Extra oil bottle storage
• Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
• Backlit oil reservoir to view condition of oil and system
• Water-resistant to withstand direct rain
• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections

• Sturdy base stays upright

• Small footprint – 1,346 cubic inches

• Quarter-turn gas ballast with LED indicator

• Convenient, removable cord storage

• Error messages: Indicate wrong power source or other errors
• Suitable for A2L class refrigerants
• R32, R1234YF, R1234ZE, R512A, 419B, 439A and other

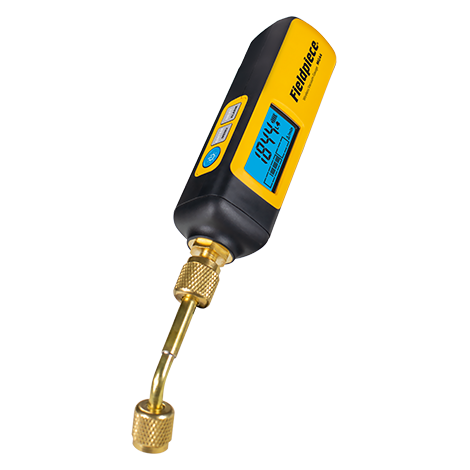

Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

The NEW MG44 Micron Gauge Impact and Weather Resistant designed for the field

• Confidently perform evacuations with a reliable, leak-proof seal.
• Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
• There are three ways to use:
• View from up to 300 metres away (line of sight) via the Job Link® mobile app

• View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT

• View direct from the MG44’s display.
• Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including:
• bar graph

• rate

• rate meter
• IP54-rated weather-resistant.
• Rugged over-molded construction for extreme impact resistance.
• Range 50 to 25,000 microns
• Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals

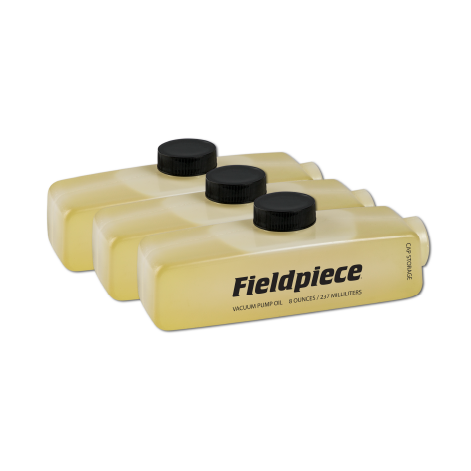

Fieldpiece High Grade Vacuum Pump Oil - OIL8x3

Oil to suit the VPX7, VP87 and VP67.

Need oil you can count on? Our vacuum pump oil, OIL8X3, is just what you need. Conveniently available in three eight-ounce containers, our specially-designed vacuum pump oil is specifically devised to function with the latest generation of vacuum pumps – VPX7, VP87 and VP67. Pull vacuums quickly, confidently and cleanly.

• Three 250 ml containers of vacuum pump oil
• Low vapor pressure ideal for pulling vacuums
• Wide temperature range helps oil perform in any conditions
• Highly refined for consistent performance
• Ensures proper sealing and lubrication
• Designed to work with our RunQuick® Oil Change System

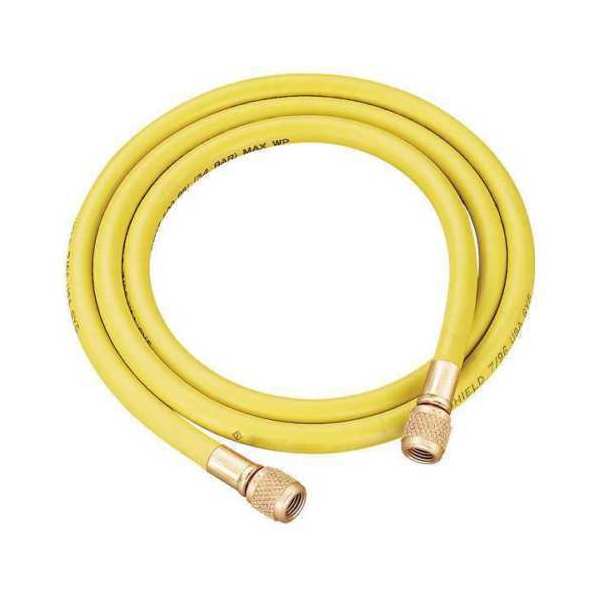

Imperial Standard Charging Hose Yellow 240cm 1/4 SAE - 808-MRY

All Imperial® PolarShield® charging hoses are UL recognized and meet UL-1963, SAE-J2196 & EPA requirements for strength, pressure and refrigerant permeation.

Rugged, Multi-Refrigerant Nylon Barrier Construction - PolarShield hoses are compatible with all CFC, HFC & HCFC refrigerants (R22, R32, R410A, R404A, R407C, R134a).

High-Pressure - PolarShield hoses feature 800 PSI working pressure and 4,000 PSI burst pressure with a 5-to-1 safety factor.



• 1 x Yellow 8’ (96") with 1/4" SAE Fittings

WARRANTY

1 Year from Date of Purchase (​excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)
