ATB1 : Temperature Thermocouple bead Type K

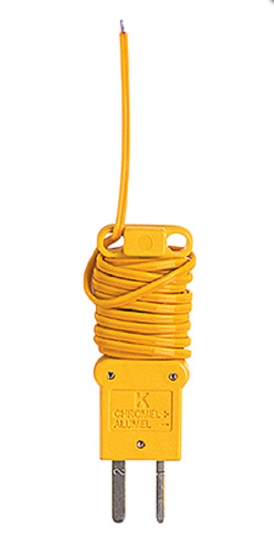

ATB1 - K-Type Thermocouple

The ATB1, K-type bead thermocouple is used to take temperatures of air, surfaces, or liquids up to 400°F. Use the ATB1 for outdoor dry bulb temperatures when finding target superheat. The ATB1 can be used with any of our meters that measure temperature and any thermometer accepting a K-type thermocouple.

The wrap-tab allows the thermocouple wire to conveniently store on the plug. Just wrap the excess wire around the wrap-tab and feed it through one of the eyes. Keep a few of them set at different lengths for fast, job-specific, switching between thermocouples. No more tangled messes in your tool bag.

SPECIFICATIONS

• Accuracy: +/- 2°C ; ±0.5°C after field calibration between 0°C to 80°C
• Temperature range: -46°C to 204°C
• Thermocouple conductors: K-type nickel chromium/nickel aluminum.
• Probe insulation: Calibration and atmosphere will affect maximum useful temperature in applications. The wire insulation is designed to withstand a maximum continuous use at 204°C
• Plug: K-type thermocouple male mini plug.

---
