Clamp Meters

Clamp meters are one of the fastest ways to check current draw on compressors, fan motors, heaters and control circuits without breaking the circuit. For HVAC/R work, the “right” clamp meter isn’t just about max amps — it’s about True RMS accuracy, safe CAT ratings, and features that match real fault-finding on 230–240V systems.

If you’re building a proper electrical kit, also browse our Electrical Testing range and full Multimeters collection for complementary meters, testers and accessories.

How to choose the best clamp meter for HVAC work

1) True RMS (important on modern equipment)

Inverter-driven systems (VSD/VFD), electronic control boards and “non-sinusoidal” loads can throw off basic average-responding meters. A True RMS clamp meter is the safer pick for accurate readings on modern HVAC gear.

2) AC only vs AC/DC clamp meters

AC clamp meters suit most standard compressor and fan motor checks.
AC/DC clamp meters add DC current measurement (handy for broader electrical diagnostics and certain control applications).

3) Inrush / start current capture

If you diagnose hard starts, nuisance trips or marginal start components, look for an inrush feature so you can capture the brief startup current spike.

4) Microamps (µA) for flame rectification work

If you work on gas heating (flame rectification), a meter with a microamp range can save time when chasing intermittent flame-sense faults.

5) LoZ (Low impedance) mode for ghost voltage

Some meters include LoZ to help eliminate “ghost” readings caused by induced voltage in long cable runs — useful in plant rooms and commercial sites.

6) Jaw size vs flexible (Rogowski) clamp

Solid jaw: fast daily service checks on typical conductors.
Flexible clamp: better for large cables, awkward switchboard access and tight bundles.

7) Safety (CAT rating + good habits)

Choose a meter with a CAT rating appropriate to where you’ll measure (e.g. distribution vs final subcircuits), and follow safe isolation practices. Safe Work Australia summarises this as “test for dead before you touch” — test your tester on a known live source, test the circuit, then re-test the tester.

Important: Electrical work on fixed wiring/switchboards should be performed by qualified persons in accordance with applicable Australian requirements and site procedures.

Popular clamp meter picks (quick shortcuts)

These are common “fit-for-purpose” options many HVAC techs look for — choose based on features, not just price:

Compact daily carry

Fieldpiece SC260 Compact Clamp Meter — simple, portable, job-ready.
UNI-T UT210E Mini Clamp Meter — compact option for quick checks.

True RMS HVAC diagnostics

Fieldpiece SC440 True RMS Clamp Meter — HVAC-focused feature set.

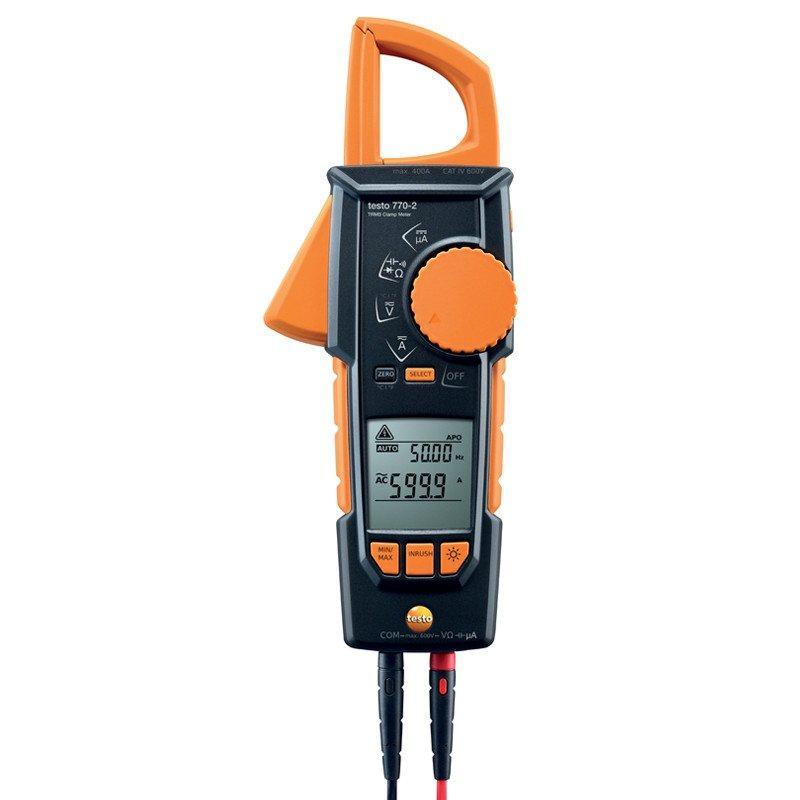

Testo 770-1, 770-2 or 770-3 — popular Testo clamp meter line-up.

Large cables / awkward access (flex clamp)

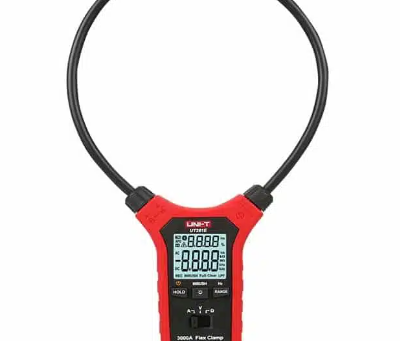

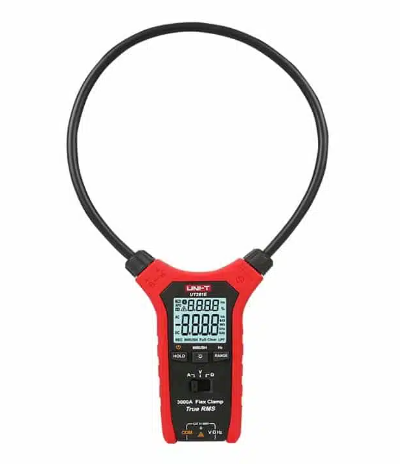

UNI-T UT281E True RMS Flex Clamp Meter — flexible coil for tight spaces.
UNI-T UT281A PRO Flex Clamp — flex clamp option with higher CAT rating (check your use case).

Need the full electrical kit? Pair your clamp meter with accessories like quality leads and cases from Fieldpiece Accessories and protective storage in our Tool Bags & Meter Cases range.

Clamp meter tips that prevent wrong readings

Clamp one conductor only: If you clamp active + neutral together, the magnetic fields cancel and the reading can drop toward zero.
Centre the conductor in the jaw (and fully close the jaw) for best accuracy.
Use True RMS when measuring distorted waveforms (common on inverter/VSD equipment).
Confirm ranges & units (A vs mA vs µA) before logging values for a fault report.

Want a refresher on what clamp meters do (and how they differ from multimeters)? Read: What is a Clamp Meter? and How to Use a Multimeter.

FAQs (Clamp Meters)

What’s the difference between a clamp meter and a multimeter?

A clamp meter specialises in measuring current by clamping around a conductor. Many also measure voltage, resistance and continuity. A multimeter is typically the go-to for voltage and component checks; clamp meters shine for fast current draw and inrush checks.

Do I need True RMS for HVAC work?

If you work on inverter-driven systems, electronic drives or equipment with distorted waveforms, True RMS helps deliver more reliable readings than basic averaging meters.

What CAT rating should I choose?

Choose a CAT rating suited to where you’ll measure (e.g. distribution vs final subcircuits). If you’re unsure, choose the safer higher-rated option and follow site electrical safety procedures.

Why does my clamp meter sometimes read zero amps?

A common cause is clamping around more than one conductor (e.g. active + neutral together), which cancels the magnetic field. Clamp a single conductor and ensure the jaw fully closes.

Can clamp meters measure DC current?

Some models can measure DC current (often using Hall-effect sensing). If you need DC current measurement, check the product specs and ranges before buying.

Do you sell flexible clamp meters?

Yes — flex clamps are ideal for larger cables and tight access. Browse the flex options in this collection (look for “flex clamp”).
