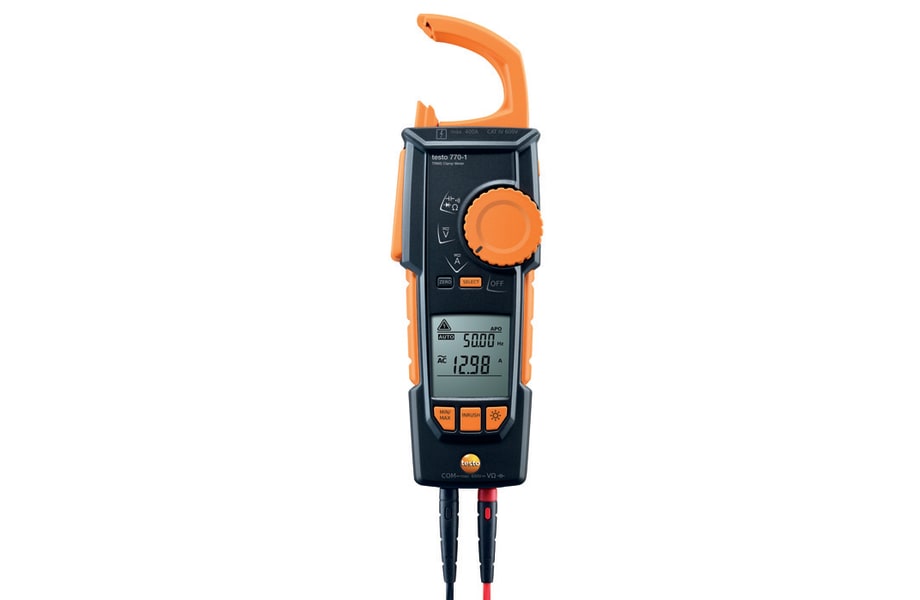

Testo 770-1 Hook Clamp Meter

The Testo 770-1 Hook Clamp Meter is a solid choice for electrical work across all types of HVAC systems. This unit simplifies measuring current on tightly packed cables, letting you focus on the job rather than fumbling with leads.

Its clever hook design lets you grab and separate wires without a heap of hassle, which is a real lifesaver when you're trying to get a reading in a cramped control panel or on a dusty rooftop unit in the Aussie summer heat.

Best For

• HVAC technicians and service teams
• Apprentice electricians working on mechanical systems
• Facilities maintenance crews
• Anyone needing safe, non-contact current measurement

Compatibility

This clamp meter is designed for general electrical measurement in HVAC environments. It's suitable for testing AC and DC voltage up to 600V and AC and DC current up to 400A, covering most residential and light commercial HVAC electrical circuits, motor windings, and control systems.

It meets CAT III 600 V safety standards. If you're running a different model, check fittings and specs before ordering.

Features

• Unique Hook-On Function: Easily separates and grabs individual wires for non-contact current measurement, even in tight spots.
• Retractable Post: Fast and easy release of hooked wires, boosting efficiency on the job.
• Automatic Configuration: The meter identifies the measurement type and sets itself up, saving time and reducing error.
• True Root Mean Square (TRMS): Ensures accurate readings for distorted waveforms found in modern electrical systems.
• Inrush Current Capture: Essential for diagnosing starting issues on compressors and fan motors.
• Min/Max/Hold Functions: Capture transient peaks and lows, or hold stable readings for easy logging.
• Large Two-Line Display: Clear readout of measurements for better visibility in varying conditions.

Technical Specifications

What's in the Box

• Testo 770-1 Hook Clamp Meter (400 A)
• Set of test leads
• 3x AAA batteries
• Instruction manual
• Quick start guide
• Certificate of conformity

Using It on the Job

1. Always perform a safe isolation procedure or wear appropriate Personal Protective Equipment (PPE) when working with live electrical circuits.
2. Power on the 770-1. It will automatically detect many common measurement types, but confirm your desired function.
3. For non-contact current measurements, use the unique hook design to safely grab a single conductor.
4. When checking voltage, resistance, or continuity, connect the included test leads securely to the appropriate jacks and the circuit under test.
5. Utilise the inrush current function to diagnose startup issues on motors and compressors.
6. After use, power off the meter, disconnect leads, and store it safely to protect against knocks and dust.

Limitations & Safety Notes

• This meter is for electrical measurements only; it does not measure temperature, pressure, or vacuum.
• The unit is rated for CAT III 600 V. Do not attempt to measure voltages or currents exceeding this rating.
• Always inspect test leads for damage before each use and replace them if necessary to prevent electrical hazards.
• Adhere to Australian standards and Safe Work Australia guidance for all electrical testing procedures.
• The automatic measurement detection is a convenience, but always double-check the displayed function matches what you intend to measure.

When you're trying to snag a single wire in a messy control box, use the hook feature to grab it without accidentally touching other conductors. It saves a lot of fumbling and keeps you safer when dealing with live circuits.

Pair With

Pair the Testo 770-1 with a quality digital multimeter for more precise voltage/resistance work, and consider an insulation tester for comprehensive motor winding diagnostics. A reliable transport case is also a good idea to protect your gear on site.
