Description

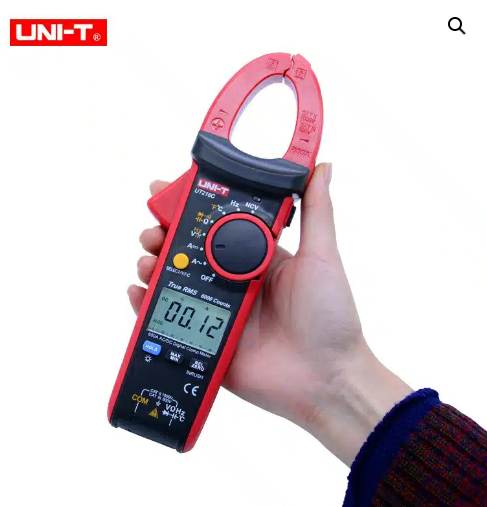

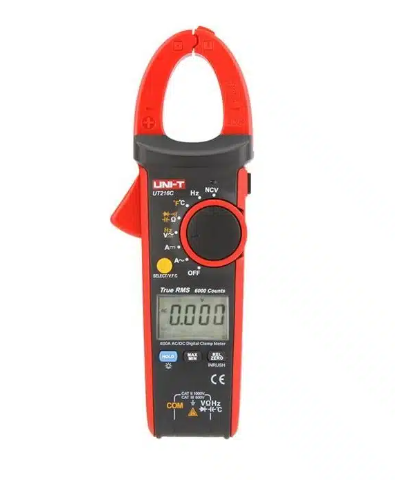

The Uni-T UT216C is a professional-grade 600A True RMS digital clamp meter engineered for technicians working in demanding environments like HVAC, aerospace, and commercial electrical sectors. This versatile tool is designed to handle complex electrical systems with precision, offering both AC and DC current measurements up to 600A. Its ergonomic double-injection grip ensures durability and comfort during long shifts in the field.

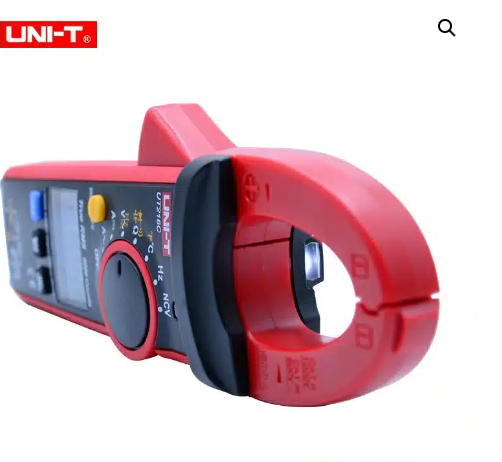

Featuring a 6000-count display and a 30mm jaw capacity, this meter is ideal for measuring larger cables and fitting into tight switchboards. It integrates advanced functions like Inrush current measurement, VFC (Variable Frequency Control), and Non-Contact Voltage (NCV) detection, making it a comprehensive diagnostic tool for modern electrical infrastructure.
Why It Matters
In the world of HVAC and commercial electrical work, accuracy is non-negotiable. The UT216C’s True RMS capability ensures you get reliable readings even on non-linear loads and noisy circuits, preventing costly misdiagnoses and ensuring system safety across high-risk CAT IV 600V environments.

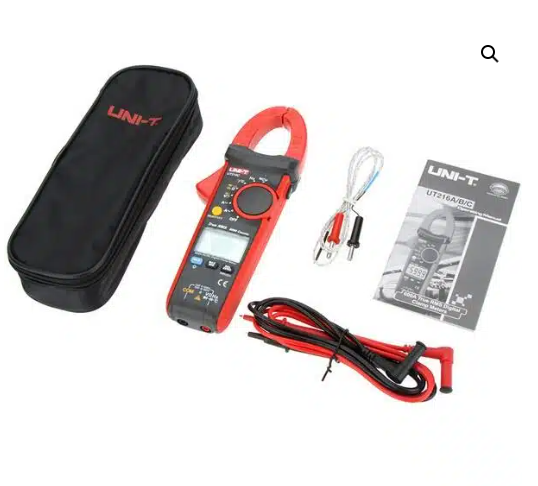

What’s Included
- ✓ Uni-T UT216C Clamp Meter

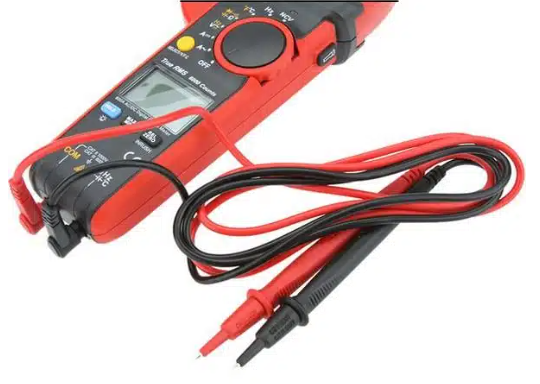

- ✓ High-quality Test Leads
- ✓ Point Contact Temperature Probe (K-type)
- ✓ Durable Carrying Bag
- ✓ 3 x AAA Batteries
- ✓ Comprehensive English Manual
Features & Benefits
- ✓ True RMS Measurement: Provides accurate readings for distorted waveforms and complex AC loads.
- ✓ Inrush Current Mode: Captures the initial surge current of motors and HVAC compressors for better troubleshooting.
- ✓ VFC (Variable Frequency Control): Enables stable measurements on Variable Frequency Drives (VFDs) by filtering high-frequency noise.
- ✓ AC/DC Current & Voltage: Measures up to 600A AC/DC and 1000V DC / 750V AC for broad application coverage.
- ✓ Built-in Flashlight & Backlight: Ensures visibility in dark server racks or ceiling voids.
- ✓ Safety Rated: CAT IV 600V and CAT III 1000V compliance for peace of mind in industrial settings.
Applications
- ✓ Commercial HVAC motor and compressor diagnostics.
- ✓ Aerospace and rail electrical maintenance.
- ✓ Solar PV installation and troubleshooting (DC current testing).
- ✓ General commercial electrical board maintenance.
Tradie Pro Tip
When testing HVAC compressors, use the Inrush current mode to identify failing start capacitors or seized motors before they cause a total system shutdown. This allows you to recommend preventative maintenance to your clients based on real data.
Pair With
- ✓ Digital Manifolds
- ✓ Refrigerant Leak Detectors
- ✓ Insulation Resistance Testers
Keep Your Space Clean
Ready to upgrade your diagnostic kit with a tool that works as hard as you do? Get the Uni-T UT216C from HVAC Shop today and experience professional accuracy on every call.
