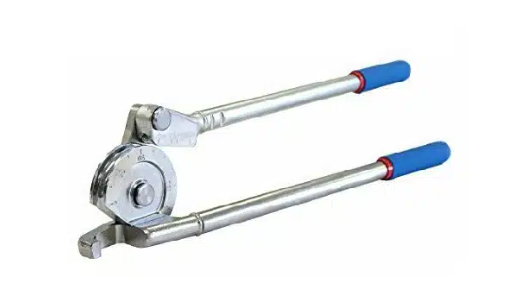

Imperial 364-FHA Lever Bender Range
$139.95
$174.95

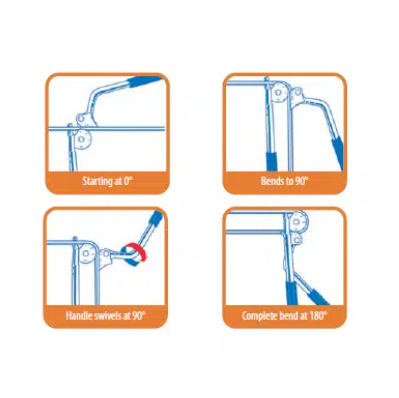

Each tool bends one size. Open-side type which slips over the tube at any point. Makes smooth, tight radius bends up to 180° with minimum effort. No scoring or flattening of tubing. Calibrated to show angle of bend. Wide hook grips tubing securely.
FEATURES:
- Each tool bends only one size.
- Conforms to Federal Specification GGG-B-191a Type III, Class 2.
- For bending annealed copper, Brass, Steel, Stainless Steel and aluminium tubing only.
SPECIFICATIONS:
1 x Lever Tuber Bender (1 size) and packaging box.
SPECIFICATIONS:

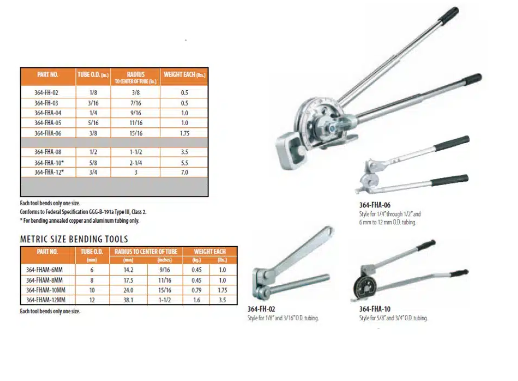

Part No
|
Tube O.D
(In) |
Radius
(To Center of the tube) |
WEIGHT EACH
(lbs) |

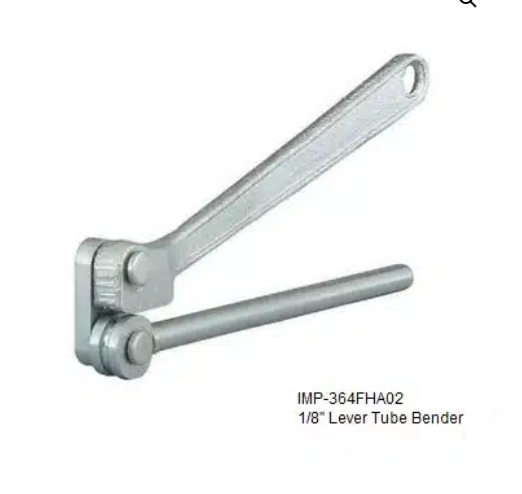

IMP-364FHA02 | 1/8 | 3/8 | 0.5 |
IMP-364FHA03 | 3/16 | 7/16 | 0.5 |
IMP-364FHA04 | 1/4 | 9/16 | 1.0 |
IMP-364FHA05 | 5/16 | 11/16 | 1.0 |
IMP-364FHA06 | 3/8 | 15/16 | 1.75 |
IMP-364FHA07 | 7/16 | 1-1/2 | 3.5 |
IMP-364FHA08 | 1/2 | 1 1/2 | 3.5 |
IMP-364FHA10 | 5/8 | 2 1/4 | 5.5 |
IMP-364FHA12 | 3/4 | 3 | 7.0 |
