Overview

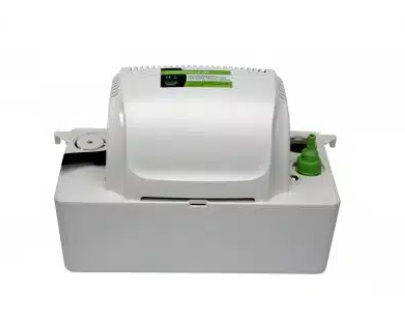

The DiversiTech WHISPA-Q-TANK 2L Condensate Pump is a high-performance solution engineered for HVAC systems where silent operation is the top priority. This pump utilizes state-of-the-art Ultra-Quiet Piston Technology (UQT) to ensure that condensate removal occurs without the disruptive mechanical noise typical of standard pumps. Its sleek, ultra-cool design is not just about aesthetics; it is built for durability and long-term reliability in demanding environments.
Designed to be both compact and versatile, the WHISPA-Q-TANK provides an effective solution for managing water runoff from air conditioning units and boilers. Its 2-liter capacity and effective 6-meter lift make it a powerhouse in a small frame, allowing for flexible installation in tight spaces while maintaining high efficiency.
Why It Matters
In modern HVAC design, the comfort of a space is measured not just by temperature, but by sound levels. The WHISPA-Q-TANK operates at a whisper-quiet 19 dBA, ensuring that occupants in noise-sensitive environments remain undisturbed. By combining a high-flow rate with ultra-low noise output, this pump solves the common problem of intrusive drainage sounds in high-end residential and commercial settings.
What's Included
- ✓ 1x WHISPA-Q-TANK 2L Condensate Pump
- ✓ Detailed Installation Instructions
- ✓ 12-Month Manufacturer Warranty
Features & Benefits
- Ultra-Quiet Piston Technology (UQT): Provides near-silent operation at only 19 dBA.
- Powerful Lift: Offers an effective continuous 6-meter lift for versatile routing options.
- Safety First: Equipped with a built-in safety switch to prevent overflows and system damage.
- Debris Protection: Features an integrated debris filter at the inlet hole to protect the internal piston mechanism.
- Compact Design: Small footprint allows for mounting in various positions and tight spaces.
Applications
- Hotels and high-end guest suites
- Theatres and recording studios
- Residential bedrooms and nurseries
- Boardrooms and meeting spaces
- Medical facilities and quiet zones
Technical Specifications
| Specification | Value |
|---|---|
| Max Flow Rate | 16 L/h |
| Sound Level | 19 dBA |
| Max Lift | 6 Metres |
| Connection Type | Stripped Wire / Hardwired |
| Tank Capacity | 2 Litres |
Tradie Pro Tip: When installing the WHISPA-Q-TANK, always ensure the inlet filter is accessible for routine maintenance. Cleaning the debris filter once a year will prevent the UQT piston from clogging and ensure the pump maintains its ultra-quiet dBA rating for years to come.
Pair With
- 1/4 inch Clear Vinyl Condensate Tubing
- High-Efficiency Wall Mounted Air Conditioning Units
- HVAC Shop Condensate Drain Cleaner Tablets
Keep Your Space Clean
Ensure your HVAC system remains efficient and quiet by choosing the DiversiTech WHISPA-Q-TANK. Upgrade your condensate management today and enjoy the peace of mind that comes with ultra-quiet pumping technology. Shop the full range at HVAC Shop for all your installation needs.
