Description

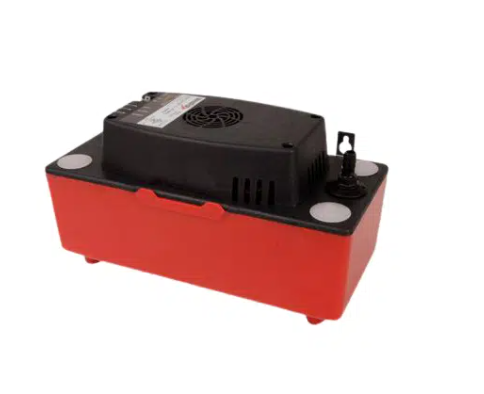

The DiversiTech Redbox CP-22-230 is a high-performance 2-litre condensate pump engineered specifically for demanding HVAC/R applications. While standard pumps often struggle with lift, the CP-22 delivers an impressive 22 feet (6.7 meters) of vertical lift, providing superior drainage capabilities for complex installations. Its robust construction ensures long-term reliability in removing condensate from air conditioning units, furnaces, and refrigeration systems.
This pump is designed with the technician in mind, featuring four reinforced inlet holes for maximum installation flexibility and a clear indicator display for immediate status monitoring. To ensure quiet operation, the Redbox integrates elastomeric motor mounting gaskets and vibration-dampening rubber feet, making it an ideal choice for residential and light commercial settings where noise reduction is a priority.
Why It Matters
Condensate management is critical to preventing water damage and mold growth within a building. The CP-22-230 goes beyond basic functionality by including a built-in overflow safety switch with SPDT-isolated contacts. This allows for seamless integration with building automation systems or direct connection to air handler shut-down circuits, providing peace of mind and protection against overflow accidents.
What's Included
- ✓ 1 x DiversiTech Redbox 2 Litre Tank Pump (CP-22-230)
- ✓ Built-in Removable Check Valve
- ✓ Integrated Overflow Safety Switch
- ✓ Stainless Steel Metal Hang Tabs
Features & Benefits
- Advanced Vibration Isolation: Features an elastomeric motor mounting gasket and rubber feet to significantly reduce operating noise.
- Visual Status Indicators: Three-light display system (Green for power, Yellow for pump running, Red for high-level alarm).
- Installation Versatility: Four inlet holes allow for multiple drainage lines to be connected simultaneously from different angles.
- Easy Maintenance: The check valve is easily removable, allowing for quick cleaning without dismantling the entire system.
- Rugged Mounting: Shatterproof stainless steel hang tabs with a hole-and-slot design permit secure mounting on 8-inch centers.
- Thermal Resilience: Suitable for use with condensate temperatures up to 60°C (continuous) and 70°C (inlet).
Technical Specifications
| Specification | Detail |
|---|---|
| Flow Rate | 1.6 LPM |
| Discharge Head (Lift) | 6.7 Meters (22 ft) |
| Reservoir Capacity | 1.9 Litres |
| Input Supply | 230V AC / 60Hz / 1 Amp |
| Dimensions | 30 x 15 x 17 cm |
Applications
- ✓ High-efficiency condensing furnaces
- ✓ Commercial and residential air conditioning units
- ✓ Industrial humidifiers
- ✓ Refrigeration display cases
Tradie Pro Tip: Always utilize the 1/4 inch quick-connect terminals to wire the safety overflow switch into the air handler's low-voltage circuit. This ensures that if the pump ever fails or the drain line clogs, the system shuts down before a flood can occur.
Pair With
- Standard Clear Vinyl Tubing (3/8" ID)
- Condensate Drain Pan Treatments / Pan tablets
- HVAC Shop PVC Fittings and Adaptors
Don't risk water damage with a substandard pump. Upgrade to the DiversiTech Redbox CP-22-230 for unmatched lift and reliability. Order today from HVAC Shop for fast delivery!
