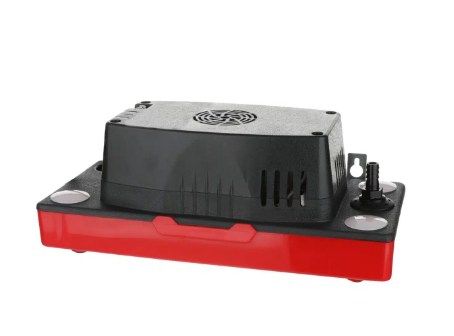

The DiversiTech CP-22LP-230 Redbox is a premium low-profile condensate pump designed specifically for installations where vertical clearance is extremely limited. Standing at only 10cm tall, this 230-volt powerhouse provides a reliable drainage solution for high-efficiency furnaces and humidifiers without sacrificing performance. It effectively moves condensate with a significant 6.7 meters of lift, ensuring your system remains dry and functional even in challenging layouts.
Engineered for quiet operation and durability, the CP-22LP-230 features an elastomeric motor mounting gasket and vibration-dampening rubber feet. These design elements work together to minimize noise transfer, making it an ideal choice for residential applications where silent operation is a priority. The unit also includes a 1.4-litre reservoir capable of handling condensate temperatures up to 70°C.
Why It Matters
In modern HVAC installations, space is often at a premium. A standard pump may not fit under low-hanging equipment or within tight crawl spaces. The CP-22LP-230 solves this logistical hurdle while providing advanced safety features like a built-in overflow switch and clear status indicators, protecting the property from potential water damage and providing the installer with peace of mind.
What's Included
- 1 x DiversiTech CP-22LP-230 Low Profile Condensate Pump
- Integrated Removable Check Valve
- Stainless Steel Hang Tabs
- Built-in Overflow Safety Switch
Features & Benefits
- Low Profile Design: Only 10cm tall, making it the perfect solution for tight spaces under furnaces or equipment.
- Vibration Isolation: Elastomeric motor mounts and rubber feet significantly reduce operational noise and vibration.
- Status Indicator Lights: Easy-to-read LEDs show status at a glance: Green (Power), Yellow (Running), and Red (High-level Alarm).
- Versatile Installation: Features four inlet holes with reinforced walls, allowing for flexible piping configurations.
- Maintenance Friendly: Equipped with a removable check valve for quick cleaning and stainless steel hang tabs for secure mounting.
- Safety First: Includes an overflow safety switch with SPDT isolated contacts for easy connection to air handlers or building automation systems.
Applications
- High-efficiency gas furnaces
- Residential and commercial humidifiers
- Air conditioning evaporator coils in low-clearance areas
- Dehumidification systems
Technical Specifications
| Attribute | Specification |
|---|---|
| Max Lift | 6.7 Meters |
| Flow Rate | 6 Litres per minute |
| Voltage | 230 Volt AC / 60 Hz |
| Reservoir Capacity | 1.4 Litres |
| Temp Rating | 70°C (Inlet) |
Tradie Pro Tip: When installing in dusty environments or with high-efficiency furnaces that produce acidic condensate, always utilize the removable check valve feature for annual cleaning. This prevents debris buildup from sticking the valve open, which can lead to short-cycling of the pump motor.
Pair With
- Clear Vinyl Condensate Tubing
- DiversiTech Condensate Neutralizer Kits
- HVAC Shop PVC Drain Fittings
Keep Your Space Clean
Don't let limited space compromise your HVAC performance. Ensure efficient water removal and protect your property with the DiversiTech CP-22LP-230. Order yours from HVAC Shop today for reliable, low-profile condensate management.
