Description
The UT196 Solar Pro is a heavy-duty True RMS digital multimeter engineered specifically for the renewable energy sector and high-voltage industrial environments. As solar installations move toward higher voltages to improve efficiency, technicians require tools that can safely handle the load. The UT196 meets this challenge head-on, offering the capability to measure up to 1700V DC and 1500V AC, far exceeding the limits of standard handheld meters.
Built for the field, this professional-grade instrument features an IP65 rating, meaning it is completely dust-tight and resistant to water ingress. Whether you are troubleshooting utility-scale PV arrays in the desert or maintaining industrial HVAC systems in a damp plant room, the UT196 provides the reliability and precision needed to get the job done safely.
Why It Matters
In high-voltage solar applications, safety and accuracy are non-negotiable. The UT196 Solar Pro is CAT III 1000V and CAT IV 600V safety rated, providing essential protection against transient overvoltages. Its Low-Pass Filter (LPF) and Low Impedance (LoZ) modes allow technicians to diagnose complex electrical issues, such as ghost voltages or motor drive noise, which can often lead to incorrect readings on lesser equipment.
What's Included
- UT196 Solar Pro Multimeter
- High-Quality Test Leads

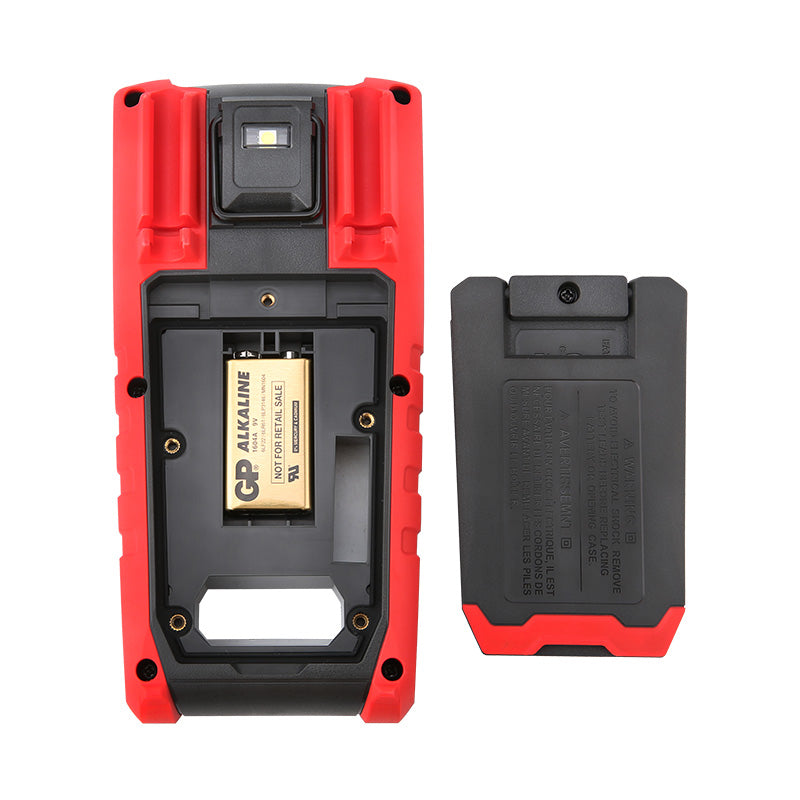

- 9V Battery
- Durable Carrying Bag
- English User Manual
Features & Benefits
- True RMS Measurement: Ensures accurate readings for both linear and non-linear AC loads.
- High Voltage Range: Safely measures up to 1700V DC and 1500V AC for solar and industrial grids.
- Rugged Design: IP65 rated for weather resistance and 2-meter drop protection for durability in the field.
- LoZ Mode: Eliminates ghost voltages to ensure you are measuring actual circuit potential.
- Visual & Audible Alarms: Built-in flashlight and backlight include visual alerts for enhanced safety in loud or dark environments.
- Dual Display: Features a 6000-count display with an analog bar graph for real-time visual tracking of fluctuations.
Technical Specifications
| Specification | Range | Accuracy |
|---|---|---|
| DC Voltage | 1700V | ±(0.2% + 5) |
| AC Voltage | 1500V | ±(0.8% + 3) |
| Frequency | Up to 1MHz | ±(0.08% + 4) |
| Resistance | Up to 60MΩ | ±(0.8% + 2) |
| Capacitance | Up to 60mF | ±(1.9% + 5) |
Applications
- Utility-scale Photovoltaic (PV) system maintenance and commissioning.
- Industrial high-voltage electrical distribution diagnostics.
- Variable Frequency Drive (VFD) and motor controller troubleshooting.
- Outdoor electrical grid inspections and repairs.
Tradie Pro Tip: When commissioning high-voltage solar arrays, use the Peak Hold function to capture transient voltage spikes that might occur during switching operations. This can help identify potential weaknesses in the inverter or string protection before they lead to failure.
Pair With
- HVAC Shop AC Current Clamp Probes
- Insulated Tool Kits (1000V Rated)
- MC4 Connector Test Lead Adapters
Keep Your Space Clean & Safe
The UT196 Solar Pro is the ultimate companion for the modern renewable energy professional. Ensure your measurements are precise and your safety is guaranteed with this high-voltage specialist tool. Shop with confidence at HVAC Shop and upgrade your diagnostic toolkit today!
