Description
Overview

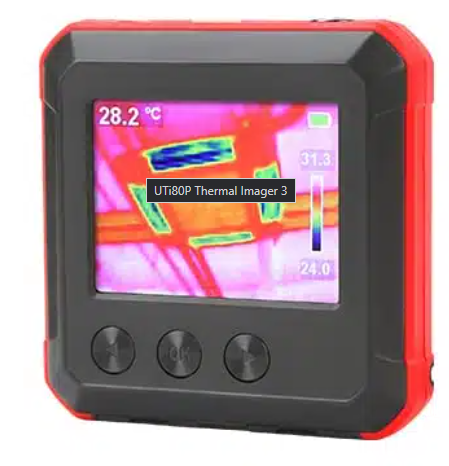

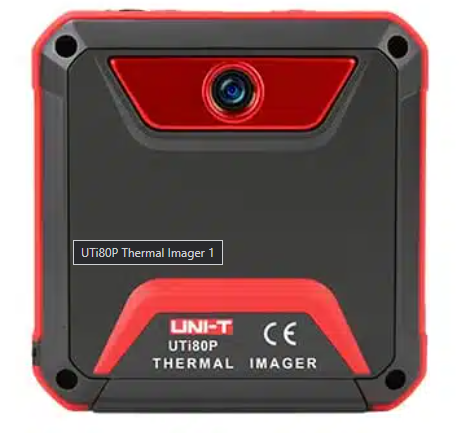

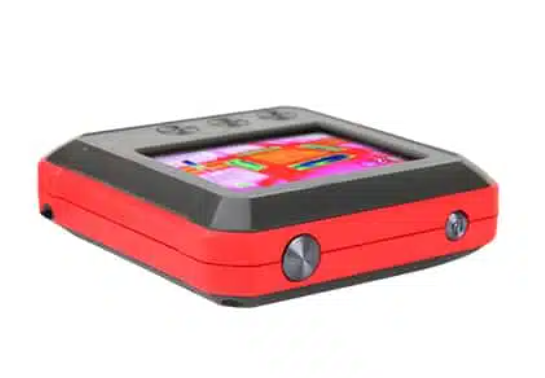

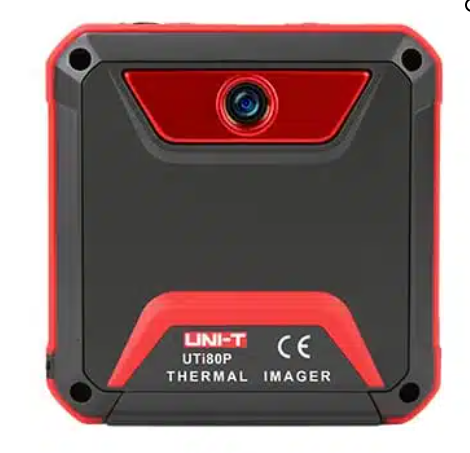

Step beyond the limitations of standard infrared thermometers with the Uni-T UTi80P, a pocket-sized thermal imager designed for precision and portability. Featuring an 80×60 IR resolution, this device maps 4,800 individual temperature points, providing a clear visual representation of heat distribution across your target area. It is the ultimate tool for technicians who need to identify thermal anomalies that the naked eye simply cannot see.
Equipped with a 2.4-inch TFT LCD display, the UTi80P offers instant feedback with high and low temperature tracking. Its ultra-compact design allows it to fit easily into a pocket or tool belt, making it an essential companion for on-the-go inspections. Whether you are checking for energy loss or monitoring industrial equipment, this imager delivers professional-grade data in a user-friendly format.
Why It Matters
In the HVAC and electrical trades, speed and accuracy are paramount. The UTi80P eliminates guesswork by highlighting exact hot spots or cold zones, allowing you to diagnose faults before they lead to system failure. This proactive approach not only saves time during maintenance but also provides documented visual proof of issues to clients, enhancing your professional service delivery.
What's Included
- ✓ 1 × Uni-T UTi80P Thermal Imager
- ✓ 1 × 16GB Micro SD Card
- ✓ 1 × Micro USB Charging Cable
- ✓ 1 × Protective Carry Case
- ✓ 1 × 12-Month Australian Warranty
Features & Benefits
- Wide Temperature Range: Measures accurately from -10°C to 400°C, covering both refrigeration and heating applications.
- Visual Clarity: 80 × 60 IR resolution provides 4,800 pixels of thermal data for detailed heat mapping.
- Compact Portability: Weighing only 125g and measuring 76mm × 76mm, it is one of the most portable imagers on the market.
- Advanced Reporting: Includes PC software to analyze pixel data and generate professional reports via USB connection.
- Dynamic Palettes: Choose between Iron, Rainbow, and Grey palettes to optimize visibility for different environments.
- Auto Tracking: Automatically identifies and marks the hottest and coldest spots on the screen in real-time.
Applications
- ✓ Electrical: Inspecting switchboards for overloaded circuits or loose connections.
- ✓ HVAC/R: Identifying duct blockages, refrigerant leaks, or coil performance issues.
- ✓ Automotive: Tracing overheating components, engine faults, or electrical shorts.
- ✓ Building Maintenance: Detecting thermal bridges, insulation gaps, and moisture ingress.
Technical Specifications
| Feature | Specification |
|---|---|
| IR Resolution | 80 × 60 pixels |
| Temp Range | -10°C to 400°C |
| Thermal Sensitivity | ≤150mK (0.15°C) |
| Field of View | 50° × 38° |
| Frame Rate | 9Hz |
Tradie Pro Tip
When inspecting electrical cabinets, start with a wide view to see the overall thermal profile, then move closer for specific component analysis. Use the Iron palette for electrical work as it provides the best contrast for high-heat signatures against neutral backgrounds.
Pair With
- ✓ Uni-T Digital Multimeters
- ✓ HVAC Leak Detectors
- ✓ Airflow Anemometers
Upgrade your diagnostic capabilities with the pocket-sized precision of the Uni-T UTi80P. Order yours from HVAC Shop today and start seeing the unseen!
