Description
Overview

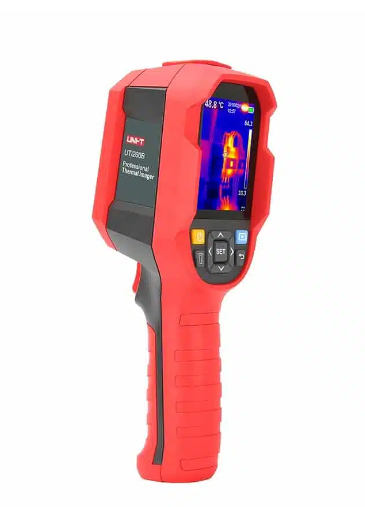

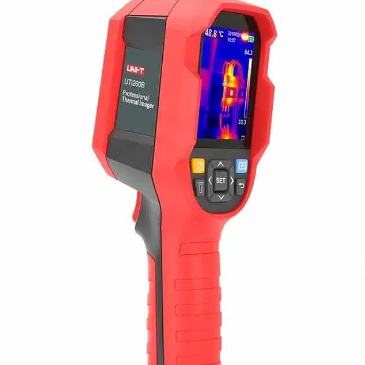

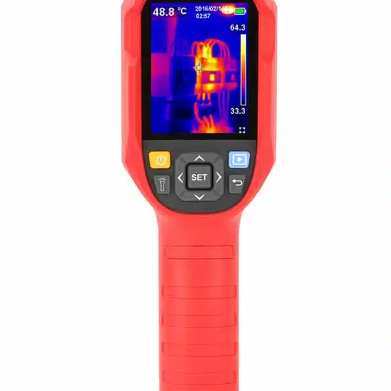

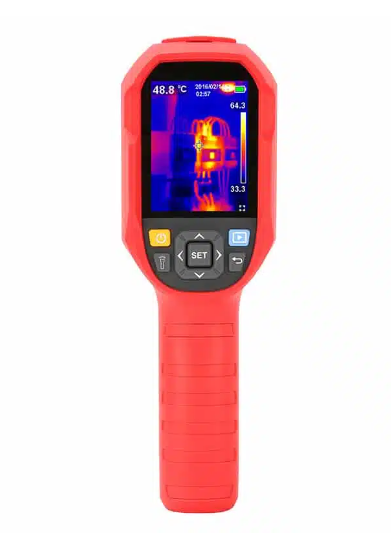

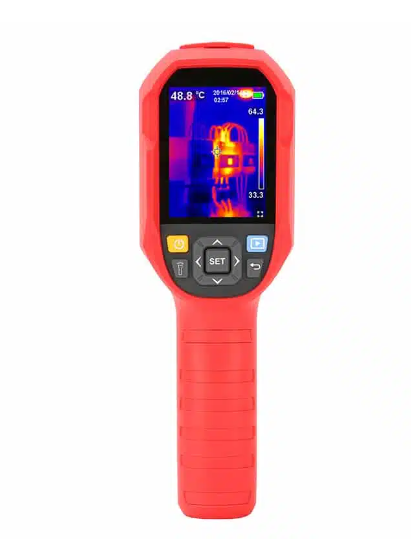

The Uni-T UTi260B is a high-performance infrared thermal imaging camera engineered for professionals who demand precision and durability in the field. Featuring a 256 x 192 thermal resolution, this device delivers 49,152 data points, allowing you to visualize heat patterns and temperature variations with exceptional clarity on its 2.8-inch TFT LCD display.
Equipped with a broad temperature detection range from -15°C to 550°C, the UTi260B is a versatile powerhouse for diagnosing everything from overloaded circuit breakers to underperforming HVAC systems. Its focus-free design and high frame rate of 25Hz ensure you can scan large areas quickly without losing image quality or missing critical thermal spikes.
Why It Matters
In the HVAC and electrical trades, being able to see the unseen is the difference between a quick fix and a catastrophic failure. The UTi260B allows you to identify hotspots, insulation gaps, and mechanical friction before they become costly hazards, providing verifiable proof of work to clients through high-resolution imagery and professional reporting software.
What's Included
- ✓ 1 x UTi260B Thermal Imaging Camera
- ✓ 1 x Type-C USB Charging/Data Cable
- ✓ 1 x 16GB Micro SD Card
- ✓ 1 x User Manual
- ✓ 1 x 12-Month Australian Warranty
Features & Benefits
- High-Resolution Imaging: 256 x 192 pixel sensor provides sharp thermal details for accurate diagnostics.
- Rugged Build: IP65 rated for dust and water resistance with a 2-meter drop-proof certification.
- Multiple Display Modes: Choose between Thermal, Visible Light, Fusion (blending), and Picture-in-Picture to pinpoint locations.
- Real-Time Analysis: Includes high/low temperature auto-tracking and customizable buzzer alarms for rapid detection.
- Extended Storage: The included 16GB card stores thousands of snapshots for later review and report generation.
- Adjustable Emissivity: Fine-tune settings from 0.01 to 1.00 to account for different surface materials like copper, PVC, or concrete.
Technical Specifications
| Feature | Specification |
|---|---|
| Thermal Resolution | 256 x 192 pixels |
| Temp Range | -15°C to 550°C |
| Field of View (FOV) | 56° x 42° |
| Frame Rate | 25Hz |
| Thermal Sensitivity | ≤50mK |
| Battery | Li-ion 5000mAh (USB Rechargeable) |
Applications
- ✓ Electrical distribution board inspections for loose connections or overloaded circuits.
- ✓ HVAC/R system troubleshooting, including duct leaks and compressor performance.
- ✓ Plumbing and underfloor heating leak detection.
- ✓ Building envelope inspections to find insulation gaps and thermal bridging.
Tradie Pro Tip
When using the UTi260B on highly reflective surfaces like polished copper or stainless steel, remember to adjust your emissivity settings or apply a piece of matte electrical tape to the target area to get a truly accurate temperature reading.
Pair With
- Digital Multimeters - Verify the electrical load once you have identified a hotspot.
- Anemometers - Correlate temperature readings with airflow data in HVAC ducts.
- Moisture Meters - Confirm if a thermal anomaly is caused by hidden water ingress.
Keep Your Space Efficient
Equip your toolkit with the Uni-T UTi260B and bring professional-grade thermal diagnostics to your next job. Order today at HVAC Shop for fast delivery across Australia.
