Description
Product Overview

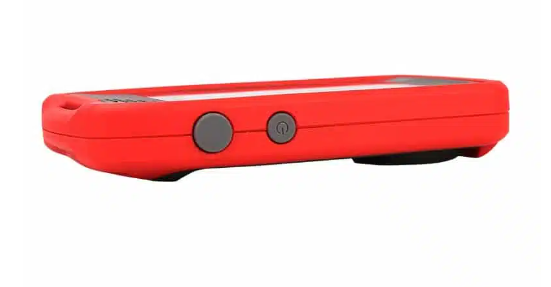

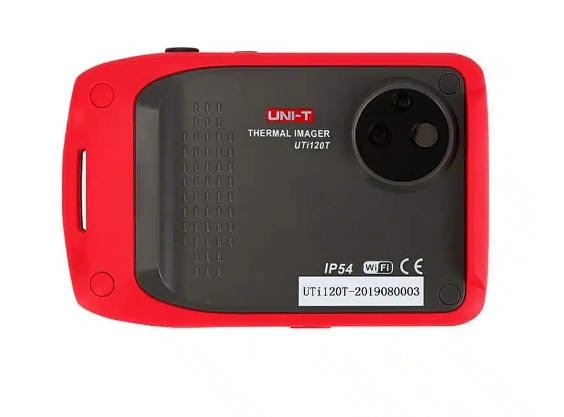

The Uni-T UTi120T Pocket-Sized Thermal Imager is a high-performance diagnostic tool designed to bridge the gap between basic spot infrared thermometers and high-end, bulky thermal cameras. Featuring a 120×90 pixel IR resolution, this compact device provides an instant visual heat map, allowing technicians to see exactly where thermal anomalies are occurring rather than guessing with a single-point laser.
With its intuitive 3.5-inch LCD touchscreen and sleek, portable design, the UTi120T is engineered for efficiency. It captures detailed thermal data across a wide temperature range of -20°C to 400°C, ensuring you can troubleshoot everything from refrigeration cycles to high-load electrical circuits with complete confidence.
Why It Matters
In the HVAC and electrical trades, being able to "see" heat is a massive advantage. The UTi120T reduces labor costs and diagnostic time by visually pinpointing hidden faults like poor heat dissipation, loose electrical connections, or ductwork leaks. By storing these images on the included 16GB micro SD card, you can provide professional, data-backed evidence to your customers, significantly increasing your service credibility.
What's Included
- ✓ 1 x UTi120T Thermal Imager
- ✓ 1 x Protective Carrying Bag

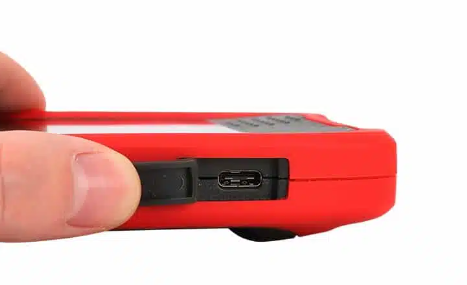

- ✓ 1 x Micro USB Charging Cable
- ✓ 1 x 16GB Micro SD Card
- ✓ 12-Month Warranty
Features & Benefits
- High Sensitivity: Thermal sensitivity (NETD) of <60mk ensures precise detection of even the smallest temperature variations.
- Multiple Display Modes: Switch between thermal, visible light, and image blending to easily identify specific components.
- Advanced Connectivity: Built-in WiFi allows for seamless data sharing and integration with PC software for professional reporting.
- Rugged Design: An IP54 rating protects the unit against dust and water splashes, making it durable enough for any job site.
- Smart Tracking: Automatically tracks high and low temperature points within the frame for rapid troubleshooting.
Applications
- Electrical panel inspections and identifying overloaded circuits.
- HVAC/R system diagnostics, including evaporator coil and compressor analysis.
- Mechanical maintenance for monitoring bearing friction and motor heat.
- Building inspections for detecting insulation gaps and water ingress.
Technical Specifications
| Feature | Specification |
|---|---|
| IR Resolution | 120 × 90 pixels |
| Temperature Range | -20°C to 400°C |
| Frame Rate | 25Hz / 9Hz |
| Accuracy | ±2°C or ±2% |
| Battery | 3.7V 5000mAh Li-ion |
Tradie Pro Tip: Use the "Image Blending" mode when working in dense electrical cabinets. Overlapping the thermal image with a digital photo allows you to read component labels while still seeing the heat hotspots, making your reports much easier for clients to understand.
Pair With
- Uni-T Digital Multimeters
- HVAC Shop Airflow Anemometers
- Infrared Leak Detectors
Upgrade your diagnostic game today. Equip yourself with the Uni-T UTi120T and stop guessing where the problem lies. Order now from HVAC Shop for reliable delivery and professional support.
