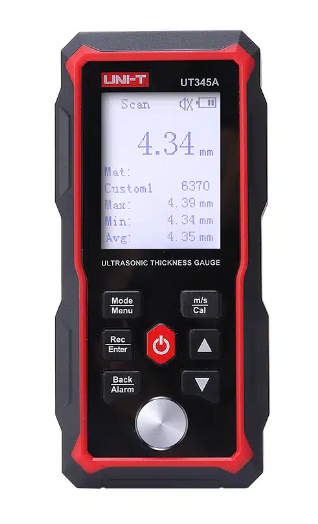

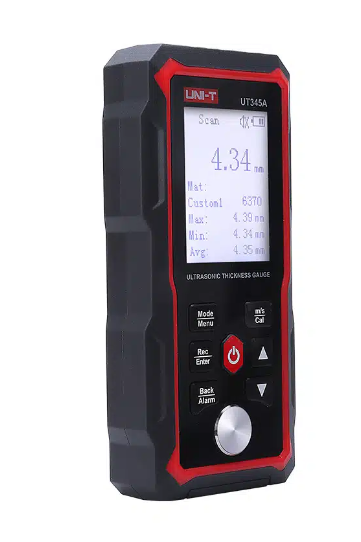

Uni-T UT345A Ultrasonic Thickness Gauge

The Uni-T UT345A is an intelligent ultrasonic thickness gauge engineered with high-performance and low-power microprocessor technology. Utilizing ultrasonic measurement principles, this device provides precise data on the thickness and sound velocity of metals and various other materials. It is a critical tool for detecting material thinning in pipes and pressure vessels caused by corrosion, as well as verifying the dimensions of plates and machined components.

Equipped with a 2.4-inch LCD and a highly sensitive probe, the UT345A offers reliable performance in demanding environments. Its ability to store 300 groups of data allows technicians to track measurements over time, ensuring comprehensive reporting and analysis for industrial maintenance and quality control.

Why It Matters

Structural integrity is paramount in high-pressure systems and heavy industries. The UT345A empowers technicians to perform non-destructive testing, identifying potential failure points before they become hazards. By accurately measuring wall thickness, you ensure compliance with safety standards and extend the operational life of expensive industrial assets.

What's Included

• 1 x Uni-T UT345A Ultrasonic Thickness Gauge
• 1 x High-Sensitive Probe
• 1 x Type-C Charging Cable
• 1 x Protective Cloth Case
• 1 x English User Manual
• 12-Month Warranty

Features & Benefits

• Integrated Lithium Power: Features a built-in 3.7V 2000mAh battery for up to 16 hours of continuous operation.
• Advanced Data Logging: Store up to 300 groups of measurements, including sound velocity and unit preferences.
• High Precision: Offers an accuracy of ±0.1mm for thicknesses under 10mm and ±(1%H+0.1)mm for thicker materials.
• User-Friendly Calibration: Includes an auto-calibration function to ensure measurement accuracy before every use.
• Safety Alerts: Built-in buzzer alarm notifies users when measurements fall outside of set parameters.
• Versatile Modes: Supports single measurement, continuous measurement, and sound velocity measurement.

Technical Specifications

Applications

• Petroleum and Chemical processing facilities
• Metallurgy and Shipbuilding inspection
• Aviation and Aerospace component testing
• HVAC pressure vessel and heavy pipework maintenance

Tradie Pro Tip: Always use a high-quality ultrasonic coupling gel and ensure the surface is free of loose debris or heavy scale. Consistent pressure on the probe is the secret to getting repeatable, accurate readings on curved pipe surfaces.

Pair With

• Ultrasonic Coupling Agent
• Industrial Pipe Wrenches
• HVAC Shop Thermal Imaging Cameras

Keep Your Operations Safe

Don't leave material integrity to guesswork. Ensure your systems are running within safe thickness tolerances with the precision of Uni-T. Shop the UT345A at HVAC Shop today for reliable measurements and industrial-grade durability.
