Description
Overview

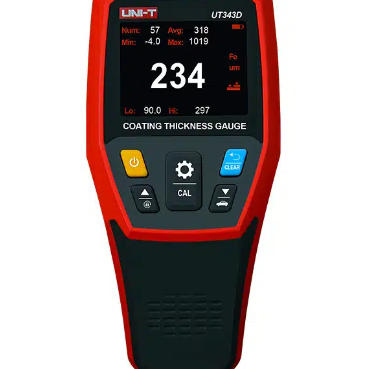

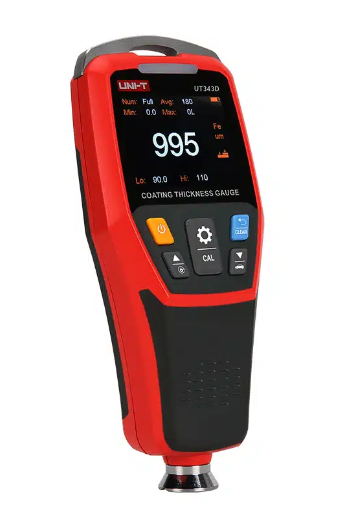

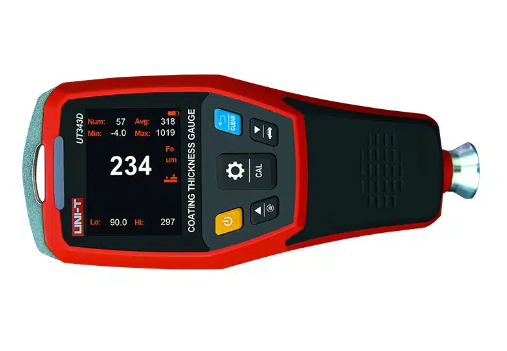

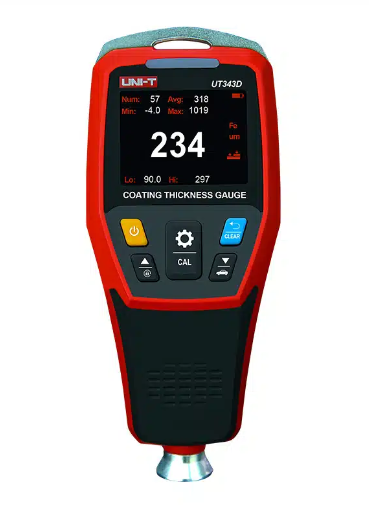

The Uni-T UT343D is a high-performance coating thickness gauge designed for precision measurement on both ferrous and non-ferrous materials. Equipped with a vivid 2.0-inch TFT LCD, this device provides clear readings with an auto-rotatable screen, ensuring you can easily view data from any angle during inspection. Whether you are checking paint depth on a car or protective coatings on industrial machinery, the UT343D delivers laboratory-grade accuracy in a portable, rugged format.
What sets this unit apart is its advanced "Quick Test" feature. By allowing users to set specific thickness ranges, the device uses a 3-colour LED system and an audible alarm to immediately notify you if a coating falls outside your preset parameters. This significantly speeds up batch testing and quality control processes, making it an essential tool for high-volume environments.
Why It Matters
Consistent coating thickness is critical for corrosion protection and aesthetic finish. The UT343D eliminates guesswork by providing data-driven insights, storing up to 500 sets of measurements that can be exported via USB to PC analytical software. This ensures your projects meet strict industry standards and provides a digital paper trail for quality assurance records.
What's Included
- ✓ Uni-T UT343D Coating Thickness Gauge
- ✓ Micro USB Interface Cable
- ✓ Calibration Standard Pieces (Ferrous/Non-Ferrous)
- ✓ 2 x 3V Batteries (R03)
- ✓ Protective Cloth Bag
- ✓ PC Software (Downloadable/Included)
- ✓ 12-Month Warranty
Features & Benefits
- Dual Substrate Detection: Automatically identifies ferrous (iron/steel) and non-ferrous (aluminum/copper) metals.
- Visual & Audio Feedback: 3-colour LED (Red/Green/Yellow) and audio alarms for instant pass/fail testing.
- High-Resolution Display: 2.0-inch TFT LCD with 320x240 pixel resolution and adjustable brightness.
- Smart Data Management: Internal memory for 500 groups of data with USB connectivity for detailed PC analysis.
- Professional Accuracy: Measures up to 1250um with a resolution of 0.1um for fine coatings.
- Auto-Rotatable Screen: Display content flips automatically for comfortable viewing in tight spaces.
Applications
- ✓ Automotive painting and body shop inspections
- ✓ Industrial powder coating and galvanizing quality control
- ✓ Metal fabrication and anti-corrosion layer testing
- ✓ Used car appraisal and insurance assessment
- ✓ Laboratory and manufacturing R&D
Technical Specifications
| Specification | Range / Detail |
|---|---|
| Measuring Range | 0 to 1250 micrometers (um) |
| Accuracy | ±(3%H+1)um |
| Resolution | 0.1um (0-99.9um); 1um (100-1250um) |
| Measurement Mode | Single / Continuous / Max / Min / Avg |
| Data Storage | 500 Groups |
Tradie Pro Tip: Always perform a zero-point calibration on the bare substrate you are about to measure. Different metals have varying magnetic properties; calibrating to the specific material before testing ensures the highest possible accuracy for your coatings.
Pair With
- ✓ Uni-T Infrared Thermometers
- ✓ HVAC Shop Hard Tool Cases
- ✓ Precision Cleaning Kits
Get Professional Results Today
Don't leave your coating quality to chance. The Uni-T UT343D provides the precision and reliability you need to deliver perfect results every time. Order yours from HVAC Shop today and take advantage of our fast shipping and technical support.
