Uni-T

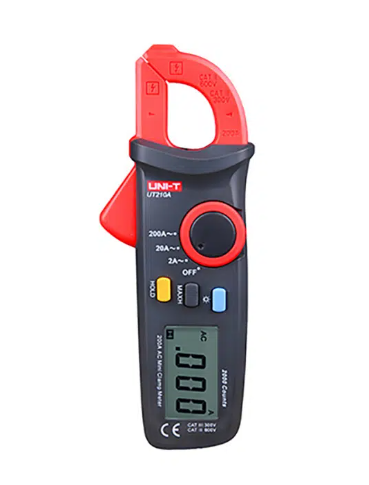

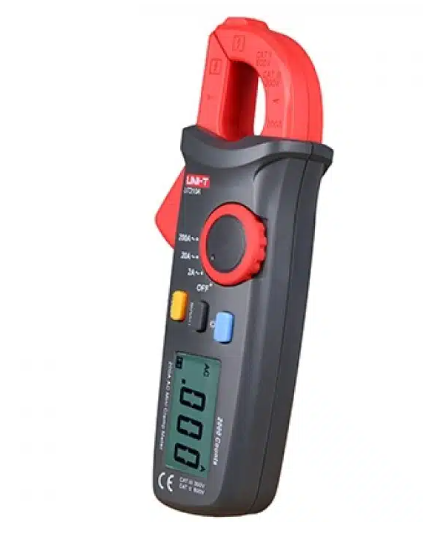

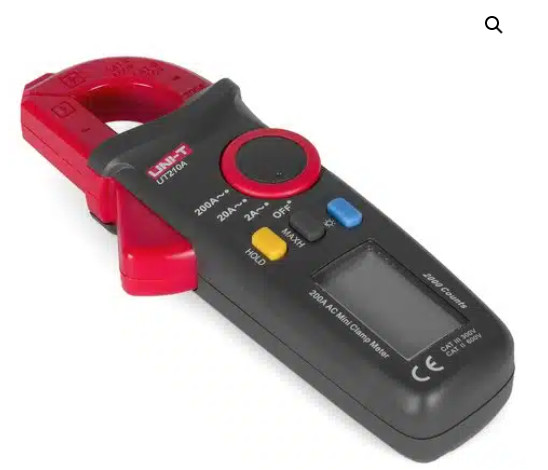

Uni-T UT210A 100A AC/ DC Mini Clamp
$64.95
$81.95
UT210 series mini clamp meters are designed to work well in limited space environments. These are essential tools for mechanical and electrical equipment maintenance, home appliance installation and electrician duties.
The UT210A is the entry-level Mini Clamp meter offering exceptional value for money and reliability. Easy to use and rugged designed powered by 2 x AA batteries.
FEATURES:
- CAT II 600V / CAT III 300V rating
- Ergonomic and lightweight
- Auto range, 2~3 times/s sampling rate
- Auto power off, low battery indication
- AC current (A)
- Continuity buzzer
- 2000 count display
- 16mm jaw opening
- LCD backlight, data hold
- 12-month warranty.
INCLUDES:
1 x UT210A, 1 x English user manual, 1 x Batteries and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT210A | UT210D | UT210E |
| AC current (A) | 200A | ±(2.5%+20) | ±(2.5%+8) | |
| 100A | ±(2.5%+5) | |||
| DC current (A) | 200A | ±(2%+3) | ||
| 100A | ±(2%+3) | |||
| AC voltage (V) | 600V | ±(1%+3) | ±(1%+3) | |
| DC voltage (V) | 600V | ±(0.7%+3) | ±(0.7%+3) | |
| Resistance (Ω) | 20MΩ | ±(1%+2) | ±(1%+2) | |
| Frequency (Hz) | 60kHz | ±(0.1%+4) | ||
| Capacitance (F) | 20mF | ±(4%+5) | ±(4%+5) | |
| Temperature | -40~1000℃ | ±(1%+3) | ||
| -40~1832℉ | ±(1.5%+5) | |||
| Features | ||||
| Display count | 2000 | 2000 | 2000 | |
| Continuity buzzer | √ | √ | √ | |
| Auto range | √ | √ | ||
| Jaw opening | 16mm | 17mm | 17mm | |
| Diode test | Around 3.0V | √ | √ | |
| General Characteristics | ||||
| Power | AAA (R03) x 2 | |||
| Display | 39.3mm x 26.5mm | |||
| Product colour | Red and grey | |||
| Product net weight | UT210A: 150g (batteries included); UT210D/E: 170g | |||
| Product size | UT210A: 158mm x 60mm x 33.5mm; UT210D/E: 175mm x 60mm x 33.5mm | |||
| Standard accessories | Batteries, test leads (UT210D/UT210E), point contact temperature probe (/UT210D) | |||
| Standard individual packing | Box, English manual, carrying bag (UT210D/UT210E) | |||
