Description

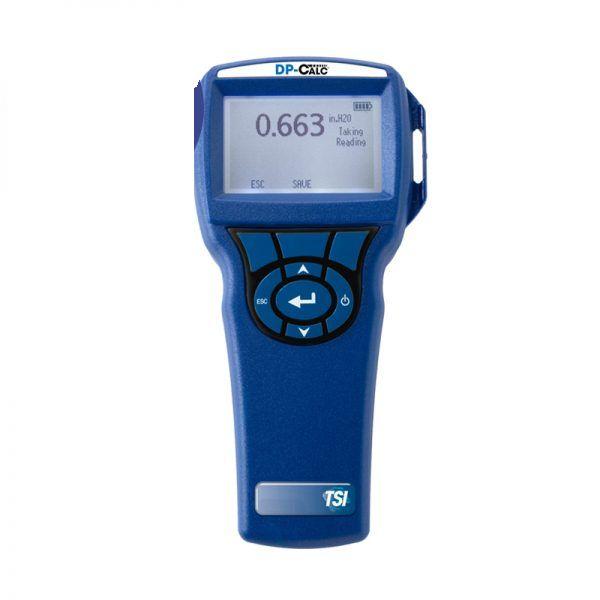

The TSI DP-Calc 5825 Micromanometer is a professional-grade differential pressure meter and duct velocity instrument trusted by Australian HVAC commissioning engineers, test-and-balance (TAB) technicians, and facility managers. Whether you're traversing a duct with a pitot tube, measuring static pressure across an AHU, or logging filter pressure drop over time, the 5825 delivers accurate, repeatable results in a robust field-ready housing.
With onboard data logging for 12,700+ samples across 100 test IDs — each stamped with time and date — the TSI 5825 micromanometer eliminates manual note-taking and makes post-job reporting fast and defensible. It's the go-to differential pressure meter for HVAC professionals across Australia who need a reliable TAB instrument that keeps up with demanding commissioning schedules.
Browse the full TSI instrument range, explore all digital manometers, or see our complete Test & Measurement range at HVAC Supply Shop.
Please note: This product has an approximate 2-week lead time. Contact us before ordering if you need urgent delivery.
Key Features
- Differential and static pressure: −15 to +15 in. H₂O (−3,735 to +3,735 Pa)
- Calculates and displays duct velocity when used with a pitot tube
- Data logging: 12,700+ samples with time and date stamp across 100 test IDs
- Variable time constant for stable readings in turbulent airflow
- Statistics mode: min, max, average
- Programmable K factors for custom pitot tube coefficients
- Robust construction rated for field use
Specifications
| Pressure range | −15 to +15 in. H₂O (−3,735 to +3,735 Pa) |
| Measurement modes | Differential pressure, static pressure, duct velocity (with pitot tube) |
| Data logging | 12,700+ samples, 100 test IDs, time & date stamp |
| Statistics | Min, max, average |
| K factor | Programmable |
| Time constant | Variable |
| Construction | Robust field-rated housing |
Applications
- HVAC commissioning and system troubleshooting
- Testing, adjusting, and balancing (TAB) airflow systems
- Pitot tube duct traverses for volume flow measurement
- Static pressure measurements across fans, coils, and AHUs
- Pressure drop across filters, diffusers, and dampers
- Environmental and indoor air quality (IAQ) airflow testing
Instructions & Manuals
- TSI DP-Calc 5825 Spec Sheet (PDF)
- TSI Indoor Air Quality Handbook (PDF)
- TSI HVAC Assessment Handbook (PDF)
Warranty
1-year manufacturer's warranty. Supported locally in Australia through HVAC Supply Shop.
