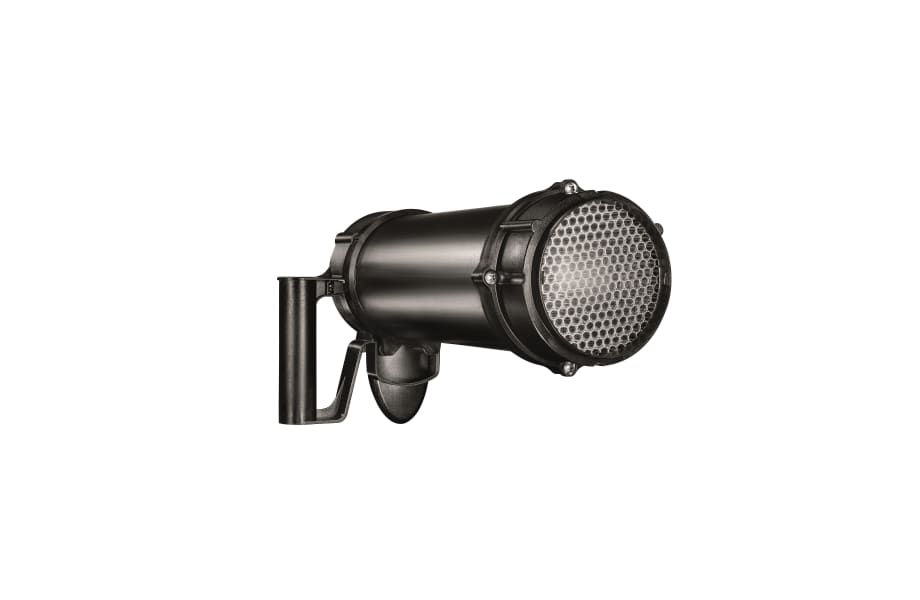

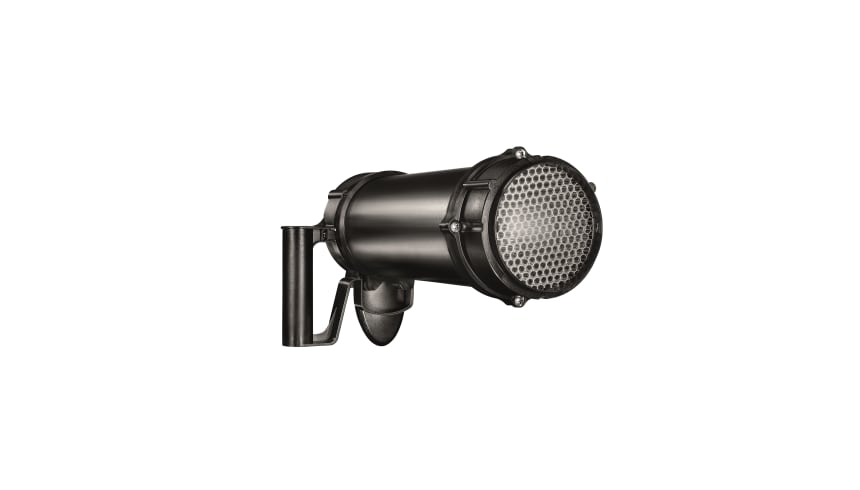

Testovent 417 Flow Straightener

The Testovent 417 Flow Straightener is your go-to accessory for getting reliable airflow readings, especially on tricky swirl outlets. If you've ever tried to measure volume flow from a diffuser and got inconsistent numbers because of turbulent air, you know the struggle.

This unit helps redirect that chaotic air into a steady stream, making your vane anemometer readings accurate every time. It's built tough enough for regular use on site, ensuring your commissioning or maintenance reports are always based on solid data.

Best For

• HVAC technicians and installers
• Commissioning specialists
• Service and maintenance teams
• Anyone needing accurate airflow measurements from swirl diffusers or grilles

Compatibility

This flow straightener is designed to be used with the Testo 417 Rotating Vane Anemometer, the Testo 440 Air Velocity and IAQ measuring instrument, and 100mm vane probes from the Testo 435 and Testo 480 series. It requires optional Testovent 417 measurement funnels to operate correctly. If you're running a different model, check fittings and specs before ordering.

Features

• Accurate Readings: Corrects swirling airflow to ensure precise volume flow measurements.
• Broad Compatibility: Works seamlessly with Testo 417, Testo 440, and 100mm vane probes for Testo 435/480.
• Reliable Data: Essential for obtaining consistent and repeatable measurement results on turbulent swirl outlets.
• Durable Construction: Housing made from PA66 GF30% for trade-level resilience.

Technical Specifications

What's in the Box

• 1 x Testovent 417 Flow Straightener (SKU: 0554 4172)
• Note: Measurement funnels and anemometer are sold separately.

Using It on the Job

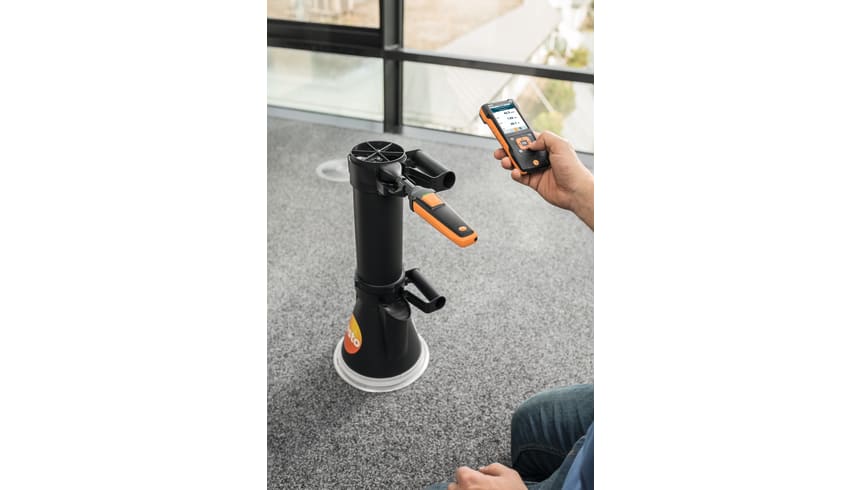

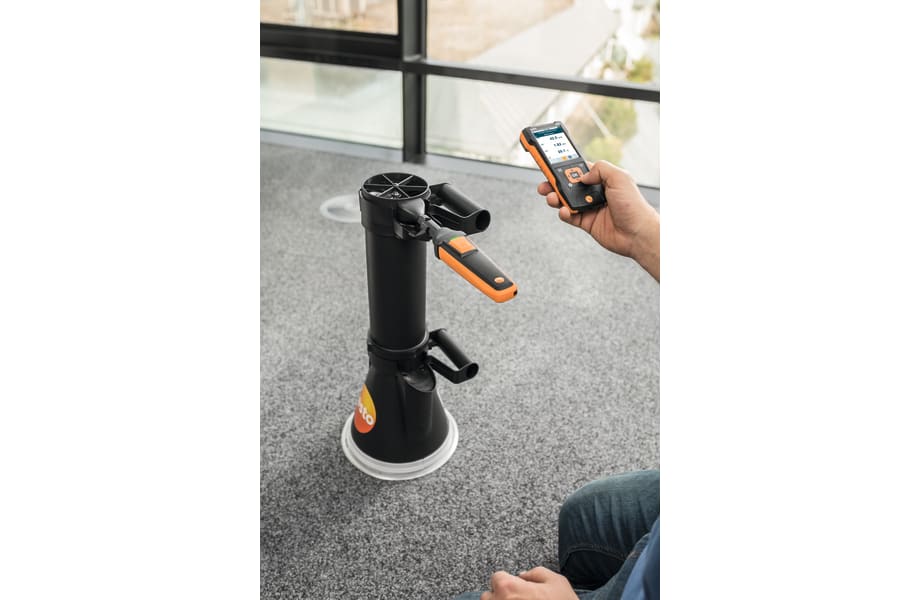

1. First, attach the Testovent 417 Flow Straightener to the correct Testovent measurement funnel (sold separately) for your application.
2. Next, connect your compatible Testo vane anemometer, such as the Testo 417 or a Testo 440 with a 100mm vane probe, to the assembled straightener and funnel.
3. Position the measurement funnel firmly and flat against the swirl outlet or grille from which you need to take volume flow readings.
4. Take your measurements using your Testo instrument. The flow straightener will ensure the air hitting the vane is uniform, preventing artificially high or low readings from turbulent air.
5. Utilise your instrument's 'hold' function to capture stable readings once the flow has equalised.
6. After use, carefully disconnect the components, clean them if necessary, and store them securely in their designated cases to prevent damage.

Limitations & Safety Notes

• This unit requires separate purchase of Testovent 417 measurement funnels and a compatible Testo vane anemometer.
• Only designed for redirecting turbulent airflow for measurement; not for structural support or handling corrosive materials.
• Always refer to the instruction manuals for both the flow straightener and your Testo measuring instrument for full operational and safety guidance.
• Do not operate outside the specified temperature range of 0 to +50 °C to avoid damage and ensure measurement accuracy.
• Ensure all connections are secure before taking readings to prevent air leakage and inaccurate data.

Trying to get a stable volume flow reading from a swirl diffuser without one of these is a nightmare. You'll be chasing numbers all day. This tool is cheap insurance for accurate commissioning reports, especially on larger commercial fit-outs where airflow balance is critical.

Pair With

Pair with the Testo 417 Rotating Vane Anemometer or the Testo 440 Air Velocity and IAQ Measuring Instrument, along with the Testovent 417 measurement funnels, for a complete volume flow measurement setup.
