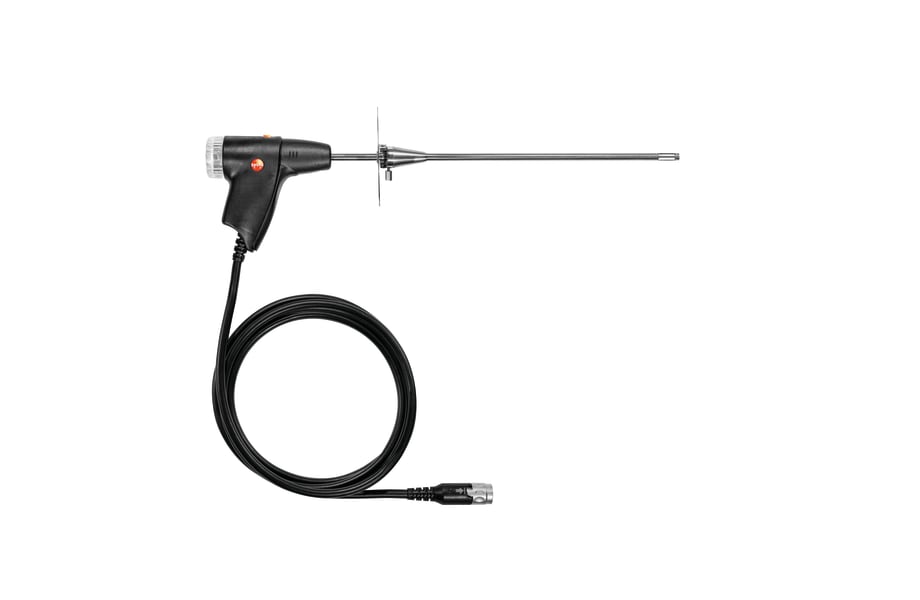

Testo Modular Flue Gas Probe 335mm

This Testo modular flue gas probe (0600 8764) is built for HVAC techs and industrial operators needing accurate combustion analysis. It's designed for durability and ease of use in tough Australian conditions, letting you swap out probe shafts quickly on the job.

No more fiddling around when you're up on a boiler or on a dusty rooftop. This probe is engineered to give you reliable readings without the usual fuss.

Best For

• HVAC technicians and industrial burner tuners
• Emissions testing and compliance teams
• Refrigeration mechanics servicing large commercial systems

Compatibility

This probe is a direct fit for Testo 340 and Testo 350 series combustion analysers, connecting via a secure bayonet lock. It's designed to handle NO₂/SO₂ measurements. If you're running a different model, check fittings and specs before ordering.

Features

• Modular Design: Quick-change click system allows for easy probe shaft replacement, saving time and hassle on the job.
• High Temperature Range: Integrated NiCr-Ni thermocouple measures flue gas temperatures accurately up to 1000 °C (1832 °F).
• Secure Bayonet Lock: Ensures a reliable connection for both flue gas path and temperature channel to your Testo analyser.
• NO₂/SO₂ Special Hose: Comes with a durable 2.2-metre special hose, specifically rated for NO₂/SO₂ applications.
• Robust Construction: Features a metal housing and an 8mm diameter probe shaft built for the demands of industrial use.

Technical Specifications

What's in the Box

• Testo Modular Flue Gas Probe (0600 8764) with 335mm shaft
• Integrated NiCr-Ni Thermocouple (Tmax 1000 °C)
• NO₂/SO₂ Special Hose (2.2 m length)
• Cone for attachment

Using It on the Job

1. Confirm your Testo 340 or 350 analyser is calibrated and ready for use.
2. Securely attach the probe's bayonet fitting to the analyser, ensuring a tight seal for both gas and temperature channels.
3. Insert the 335mm probe shaft into the flue, using the provided cone for proper positioning and sealing to prevent ambient air ingress.
4. Allow the temperature reading to stabilise before taking your measurements to ensure accuracy.
5. After use, carefully remove the probe and inspect the shaft and hose for any signs of wear or blockage.
6. Clean the probe and replace any particle or sintered filters as needed to maintain accuracy for your next job.

Limitations & Safety Notes

• Only for use with compatible Testo 340 and Testo 350 series combustion analysers.
• Ensure the probe shaft is fully cooled before attempting to swap it out to prevent burns.
• Always wear appropriate PPE, including eye protection and heat-resistant gloves, when working near hot flues or combustion gases.
• Regularly check the hose and probe for damage; replace worn components to prevent leaks and ensure accurate readings.
• Follow Australian standards and Safe Work guidance for all combustion analysis procedures.

Tradie Pro Tip

Keep an eye on your particle filters. A clogged filter will throw off your readings and make your pump work harder. Swapping them regularly means you're always getting reliable data and extending the life of your analyser.

Pair With

Pair with replacement particle filters, sintered filters, or an extension hose for reaching tricky spots in large plant rooms. Explore our range of Testo Analysers for other testing and diagnostic needs.
