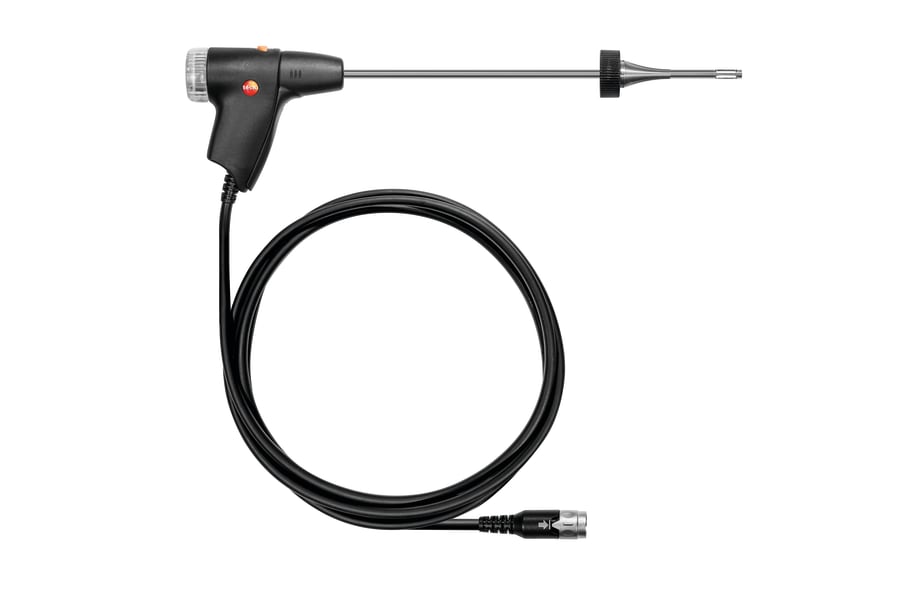

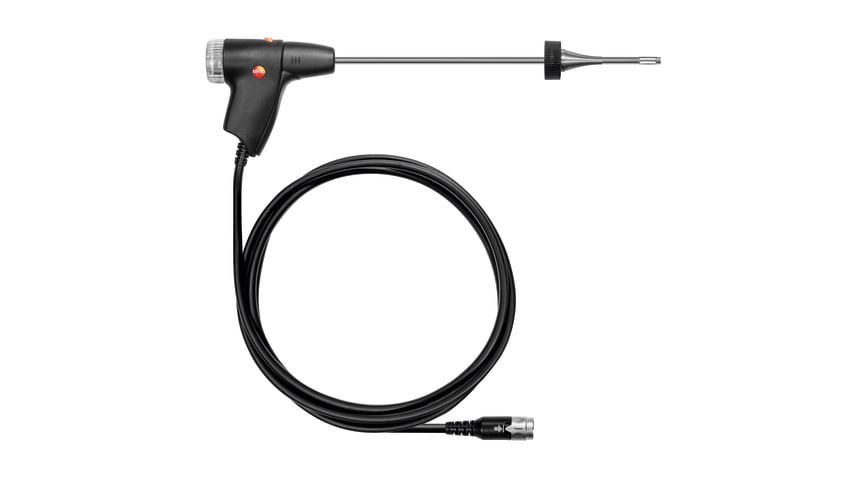

Testo Modular Flue Gas Probe 300mm

This Testo modular flue gas probe is built for the trade, offering quick, reliable temperature and combustion gas sampling from flues. It's a key piece of kit for anyone doing boiler servicing, commissioning new heating systems, or performing routine maintenance on gas appliances.

When you're up on a roof or in a tight plant room doing combustion analysis, fumbling with probes slows you down. This unit's quick-change system and robust design mean less time wasted and more accurate readings.

Best For

• Combustion analysis and efficiency checks
• Boiler and furnace servicing
• Heating system commissioning
• HVAC technicians, plumbers, and gas fitters

Compatibility

This flue gas probe is designed to integrate seamlessly with the Testo 300 series of flue gas analysers. This includes the 'Smart', 'Advanced', 'Ultra-Smart', and 'Heat pump kit' variants. Its bayonet lock system ensures a secure connection for both the flue gas path and the temperature channel.

If you're running a different model, check fittings and specs before ordering.

Features

• Quick-Change Click System: Allows for fast and flexible replacement of the 300 mm probe shaft, saving time on site.
• Integrated Dirt Filter: Protects your analyser and its sensitive sensors from contamination by soot and other particles in the flue gas.
• NiCr-Ni Thermocouple: Built into the probe shaft for reliable temperature measurements up to 500 °C.
• Bayonet Lock Connection: Provides a secure and convenient connection for the flue gas path and temperature channel to your Testo analyser.
• TÜV-Tested: Offers assurance of performance and compliance with relevant standards.

Technical Specifications

What's in the Box

• Modular flue gas probe with 300 mm probe shaft
• Integrated dirt filter
• Cone for attachment
• NiCr-Ni thermocouple (Tmax 500 °C)
• Hose (2.2 m length)

Using It on the Job

1. Prepare Analyser: Ensure your Testo 300 flue gas analyser is calibrated and ready for use according to the manufacturer's instructions.
2. Connect Probe: Attach the modular flue gas probe to your analyser using the bayonet lock for both the gas path and temperature channel. Ensure it clicks securely into place.
3. Insert Probe: With appropriate PPE, carefully insert the 300 mm probe shaft into the flue. Use the cone for proper sealing and positioning if required by the flue port.
4. Take Readings: Allow readings to stabilise before recording flue gas temperature, O2, CO, and other relevant parameters.
5. Remove & Clean: Once readings are complete, carefully remove the probe. Allow it to cool down, then inspect and clean the dirt filter and probe shaft to remove any soot or debris.
6. Storage: Store the probe in a suitable case to protect it from damage and contamination.

Limitations & Safety Notes

• Maximum temperature rating is 500 °C; do not exceed this to avoid sensor damage.
• Always wear appropriate Personal Protective Equipment (PPE) when working with hot flues and combustion gases.
• Ensure the probe is securely fitted to the analyser and the flue to prevent leaks and inaccurate readings.
• Regularly check and clean the integrated dirt filter to maintain accuracy and protect the analyser.
• Follow Australian standards and Safe Work guidance for all combustion analysis and heating system work.

Tradie Pro Tip

Don't skimp on cleaning the dirt filter. A clogged filter will reduce sample flow and give you dodgy readings, not to mention risk contamination inside your expensive analyser. Keep it clear!

Pair With

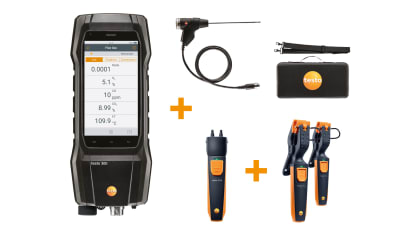

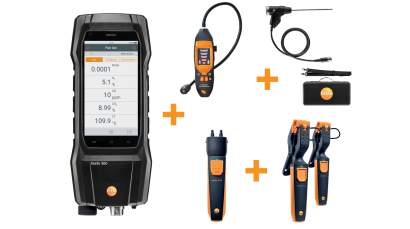

Pair this probe with a Testo 300 Flue Gas Analyser, and keep a pack of Spare Particle Filters on hand. Consider a Hose Extension for those hard-to-reach flues.
