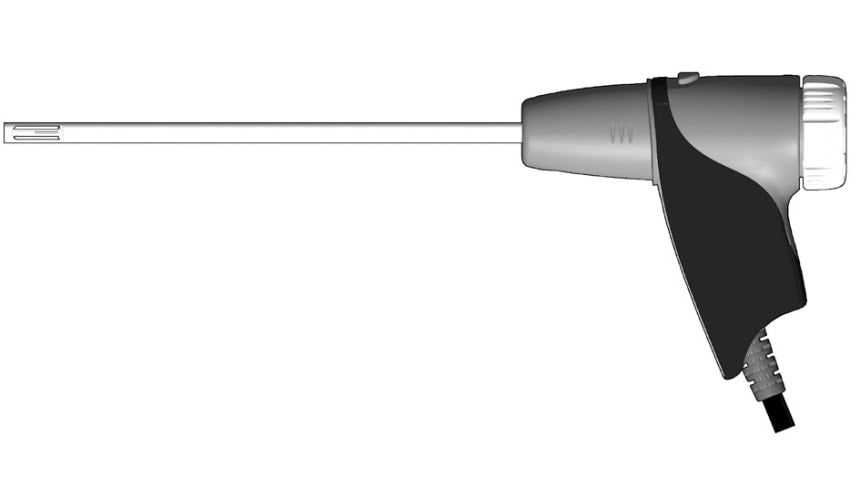

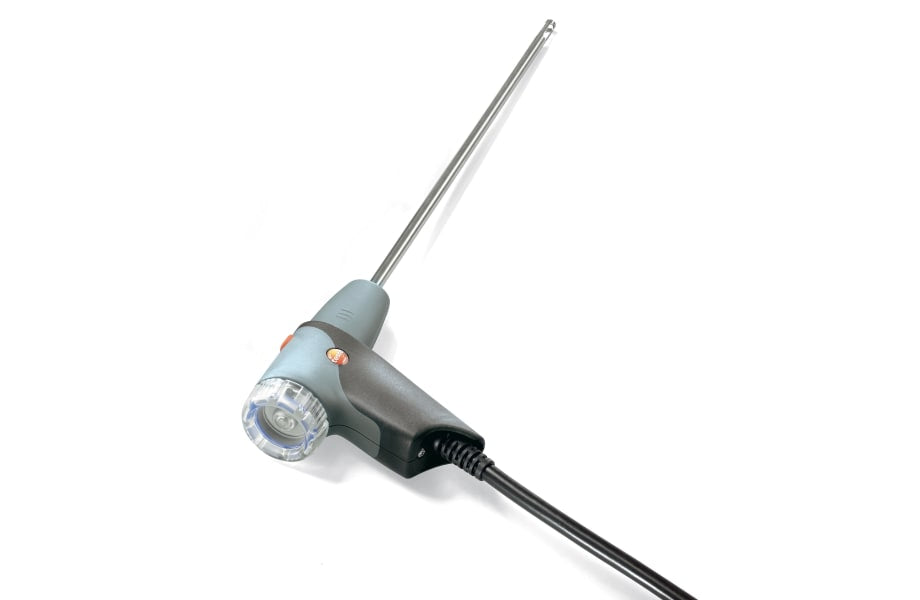

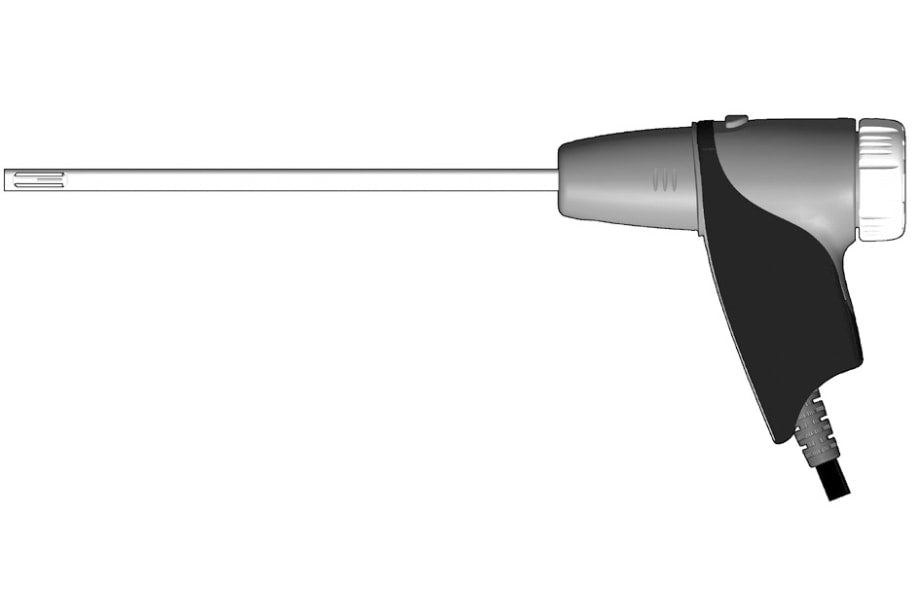

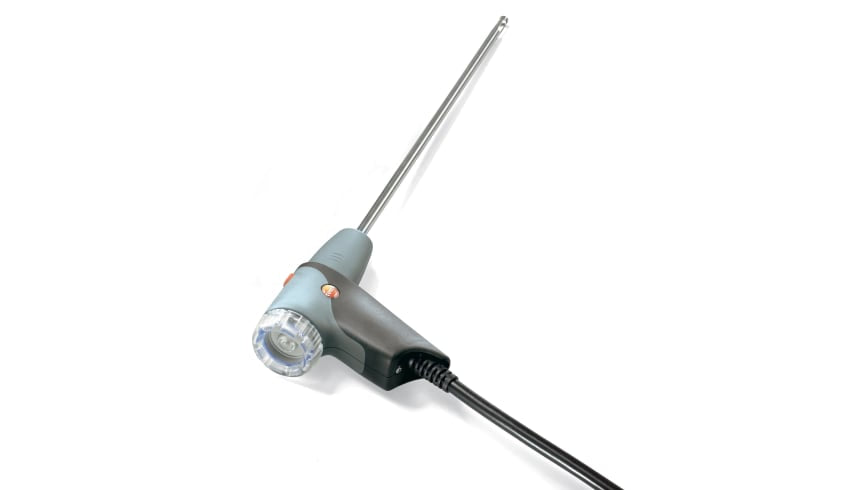

Testo Modular Flue Gas Probe 180mm

This Testo modular flue gas probe, SKU 0600 9760, is your go-to for accurate temperature and flue gas measurements on combustion appliances.

With a robust 180mm shaft, it’s built for daily use in Australian conditions, making it easy to get into tight spots or high flues without a drama. I've used these myself; the quick-change system saves a heap of time when you need to swap shafts.

Best For

• HVAC service technicians performing combustion analysis.
• Commissioning and maintenance of gas appliances and boilers.
• Apprentices learning flue gas diagnostics.

Compatibility

This modular flue gas probe is designed to work seamlessly with Testo 300 series flue gas analysers, including the 'Smart', 'Advanced', 'Ultra-Smart', and 'Heat Pump' kits. It connects via a bayonet lock for the gas path and temperature channel, ensuring a secure fit.

If you're running a different model, check fittings and specs before ordering.

Features

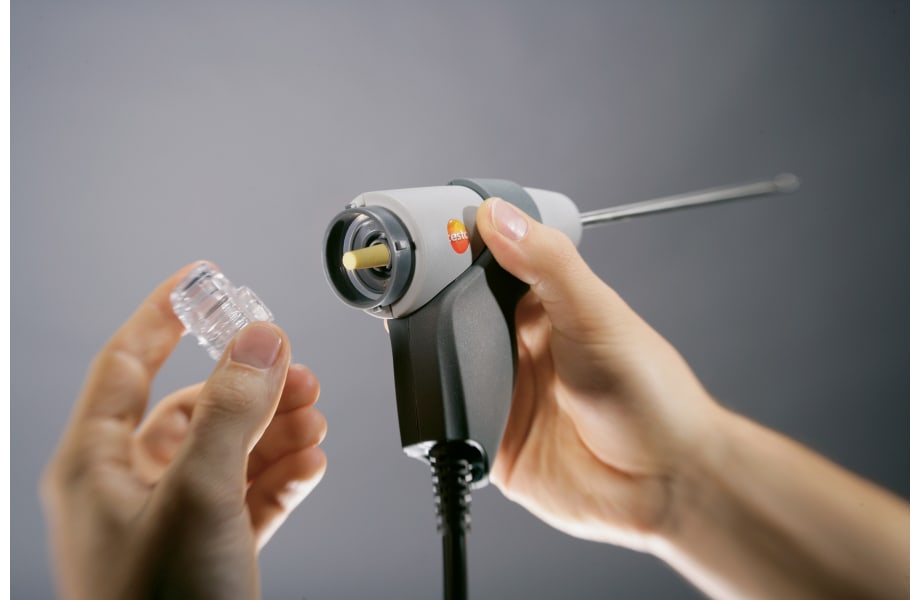

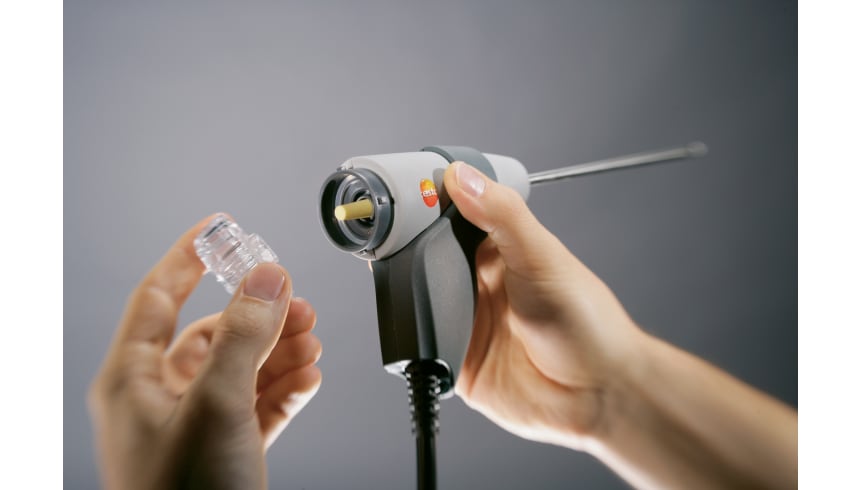

• Quick-Change Click System: Allows for fast and flexible replacement of the probe shaft, saving time on site.
• Integrated Thermocouple: Features a NiCr-Ni thermocouple for accurate temperature measurements up to 500 °C.
• Bayonet Lock Connection: Securely connects the flue gas path and temperature channel to your Testo analyser.
• Integrated Dirt Filter: Protects your analyser's internal sensors from soot, dust, and other contaminants found in flue gases.
• TÜV-tested: Independently tested for reliability and performance.

Technical Specifications

What's in the Box

• Testo Modular Flue Gas Probe (180 mm shaft)
• Integrated Thermocouple (NiCr-Ni)
• Integrated Dirt Filter
• Cone for Attachment
• Hose (2.2 m length)

Using It on the Job

1. Ensure the appliance is running stably and safely before taking readings.
2. Connect the probe to your compatible Testo flue gas analyser using the bayonet lock. Make sure it clicks securely into place.
3. Insert the probe shaft into the flue gas test port, ensuring the cone provides a good seal to prevent ambient air ingress.
4. Allow the analyser and probe to stabilise according to the manufacturer's instructions before logging data.
5. After use, remove the probe, disconnect it from the analyser, and check the dirt filter for blockages. Clean as needed.

Limitations & Safety Notes

• Rated for maximum temperatures up to 500 °C; exceeding this can damage the thermocouple.
• Regularly check and replace the dirt filter to protect your analyser's sensors and maintain accurate readings.
• Always follow appliance manufacturer guidelines and Safe Work Australia practices when performing combustion analysis.
• Only use with compatible Testo flue gas analysers to ensure correct functionality and secure connections.

Tradie Pro Tip

Don't forget to zero out your analyser with the probe attached and in fresh air before every use. It's a simple step that makes a huge difference to your combustion readings and keeps your reports accurate for the customer.

Pair With

This probe is a natural fit with any Testo 300 series Flue Gas Analyser. Consider stocking up on Spare Particle Filters to ensure you're always ready for the next job.
