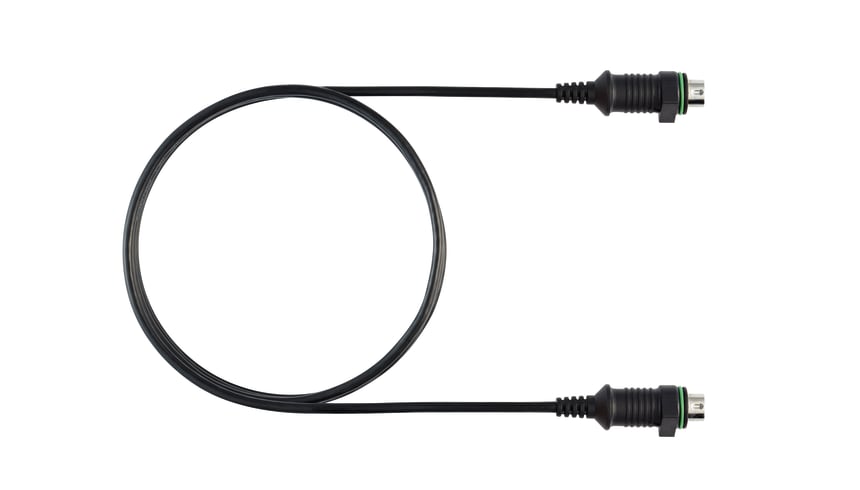

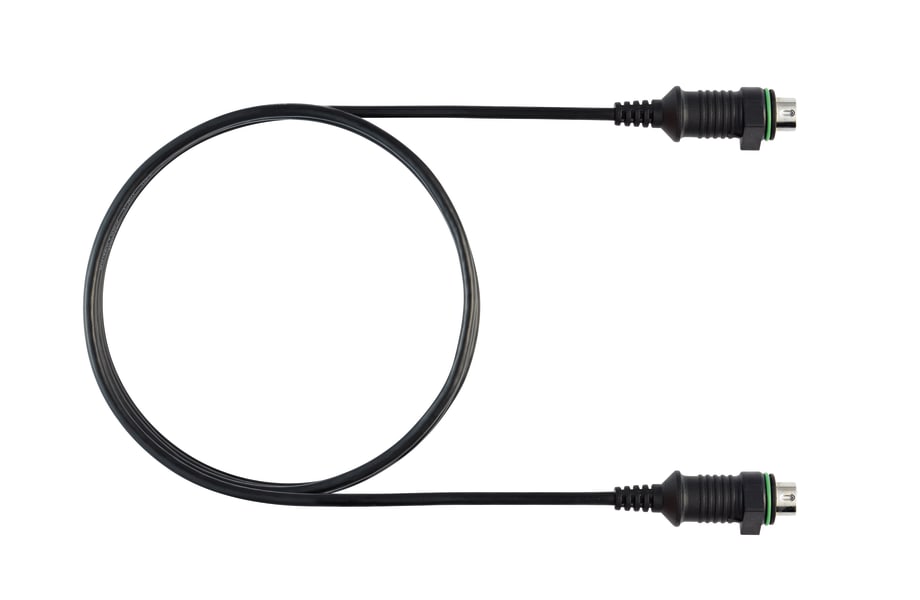

Testo MiniDIN Connection Cable

This Testo MiniDIN connection cable is built to link your Testo 552 Digital Vacuum Gauge directly to a Testo 570 Digital Manifold. It's a key component for techs needing more precise vacuum readings and reliable data logging during field service. Having the right cable on hand prevents frustrating delays, especially when you're under the pump on a hot Australian summer day.

This cable ensures your Testo instruments communicate effectively, making critical evacuation work smoother and more accurate.

Best For

• HVAC technicians and refrigeration mechanics
• Service teams using Testo 552 vacuum gauges and 570 digital manifolds
• Apprentices learning digital manifold system operation

Compatibility

This cable is designed specifically for connecting the Testo 552 Digital Vacuum Gauge to the Testo 570 Digital Manifold. It features MiniDIN connections on both sides, ensuring a secure and reliable link between these compatible instruments. If you're running a different model, check fittings and specs before ordering.

Features

• Direct Compatibility: Engineered to link Testo 552 vacuum gauges with Testo 570 digital manifolds.
• Enhanced Vacuum Readout: Provides the Testo 570 manifold with a higher resolution vacuum reading from the connected 552 gauge.
• Data Logging & Printing: Enables the 570 manifold to store and print measurements taken by the 552 vacuum gauge, streamlining report generation.
• Secure MiniDIN Connectors: Features robust MiniDIN connections on both ends for a reliable, tight fit that won't easily dislodge.
• Optimal Length: Generous 1.46 metre (approximately 57.5 inches) cable provides flexibility on diverse job sites.

Technical Specifications

What's in the Box

• 1 x Testo MiniDIN Connection Cable (1.46 m length)

Using It on the Job

1. Ensure both your Testo 552 vacuum gauge and Testo 570 manifold are powered off before attempting to connect the cable.
2. Locate the MiniDIN ports on both devices. These are typically clearly marked to avoid confusion.
3. Carefully insert one end of the cable into the Testo 552 and the other into the Testo 570 until they click securely into place. Never force the connections to avoid damaging the pins.
4. Once connected, power on your devices. The manifold should now recognise the connected vacuum gauge for enhanced readings and data functions.
5. After completing your vacuum measurements, power off both devices before disconnecting the cable. This helps to prevent wear and tear on the delicate ports and pins.

Limitations & Safety Notes

• This cable is only for use with the specified Testo 552 Digital Vacuum Gauge and Testo 570 Digital Manifold models. Compatibility with other Testo instruments or third-party devices is not guaranteed.
• Handle cables carefully to avoid kinks, sharp bends, or damage to the connectors, which can lead to intermittent readings or signal loss.
• Always keep the MiniDIN connections clean and free from dirt, dust, or moisture to ensure reliable signal transmission and prevent corrosion.

Tradie Pro Tip

"Always coil your cables neatly after use. Tossing them into the bottom of the toolbox can lead to damaged pins and signal drops just when you need them most on a critical vacuum. A tidy cable is a reliable cable."

Pair With

Pair with Testo digital manifold gauges, high-quality vacuum pumps, and a range of other Testo accessories for comprehensive HVAC system diagnostics and servicing.
