Description
Precision Airflow Measurement
The Testo 0635 9532 digital vane probe (Ø 16 mm) is a wired solution designed for accurate air velocity and volume flow measurements in ventilation ducts. When paired with a compatible Testo multifunction measuring instrument, it provides reliable data essential for HVAC professionals.
This probe ensures precise and intuitive determination of air velocity and volume flow, making complex measurements straightforward. Its intelligent calibration concept means only the probe needs to be sent for calibration, allowing your measuring instrument to remain in continuous use.
Key Features & Applications
Features & Benefits
- Intuitive parallel determination of air velocity and volume flow.
- Precise measurements from +0.6 to +50 m/s for high accuracy.
- Integrated telescope, extendable to 0.85 m with scaling, for easy immersion depth reading.
- Clearly structured measurement menu (with compatible instrument) for volume flow calculation.
- Intelligent calibration concept ensures exceptionally accurate results and continuous instrument use.
Applications

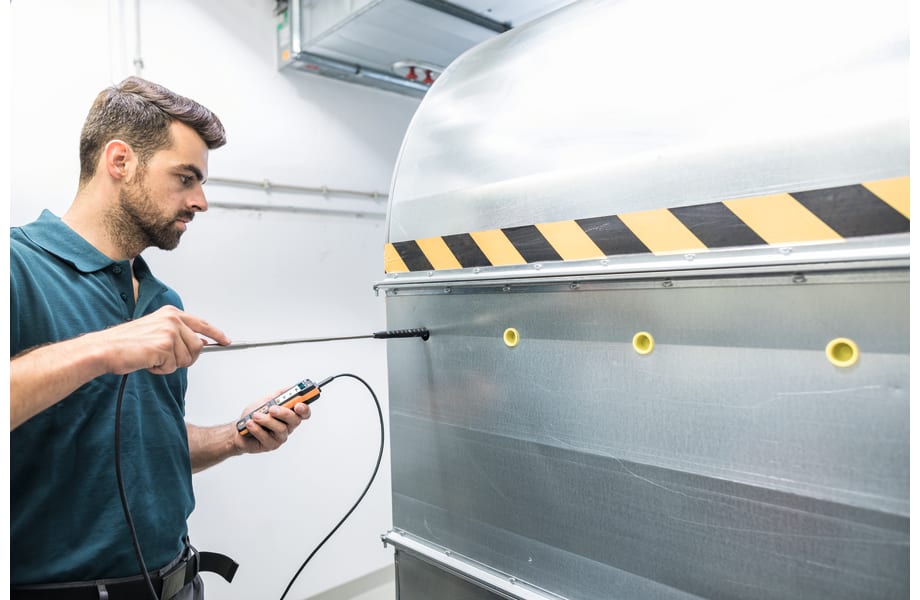

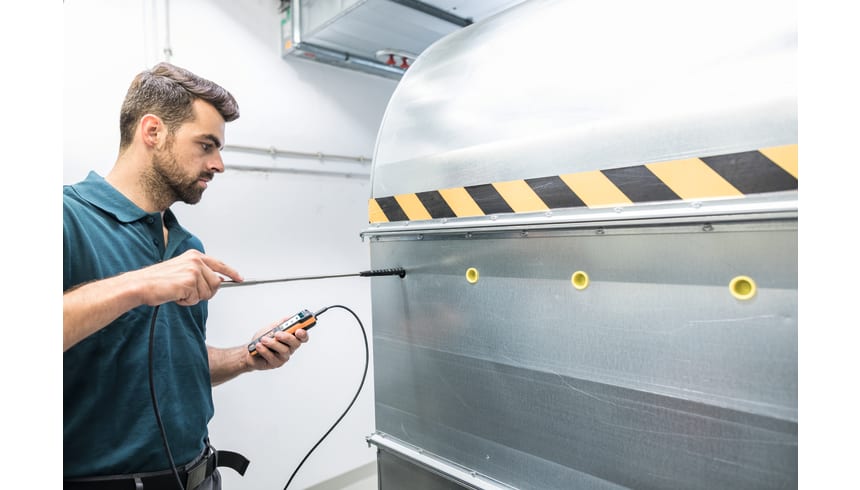

- Reliable air velocity measurement in ventilation ducts.
- Fast calculation of volume flow by configuring duct dimensions and geometry.
- Supports timed and multi-point mean calculation, average volume flow, current reading, and min./max. values (displayed on compatible measuring instrument).
Technical Details & Inclusions
What's Included
- Vane probe (Ø 16 mm) with fixed cable (1.7 m length).
- Integrated telescope (extendable to 0.85 m).
- Calibration protocol.
Technical Specifications
| Parameter | Value |
|---|---|
| Measuring range (Velocity / Volume flow) | 0.6 to 50 m/s (118.1 to 9843 fpm) |
| Accuracy (Velocity / Volume flow) | ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s) ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s) |
| Resolution (Velocity / Volume flow) | 0.1 m/s (19.7 fpm) |
| Storage temperature | -10 to +70 °C (14° to 158 °F) |
| Weight | 5.3 oz. |
| Dimensions | 330 x 16 x 16 mm (13.0 x 0.6 x 0.6 in.) |
| Operating temperature | -10 to +70 °C (14° to 158 °F) |
| Cable length | 1.7 m (5.577 ft.) |
| Telescope length | 850 mm (33.465 in.) |
| Probe head diameter | 16 mm (0.63 in.) |
| Telescope diameter | 12 mm (0.472 in.) |
| Product colour | Black; silver |
Enhance Your Toolkit
Tradie Pro Tip: For optimal results, ensure the vane probe is fully immersed in the airflow with the direction arrow aligned with the flow. This ensures the most accurate velocity and volume flow readings, crucial for balancing HVAC systems.
Pair with a compatible Testo multifunction measuring instrument like the Testo 400 or Testo 440 for a complete airflow measurement system. Consider Testovent Volume Flow Funnels for expanded application flexibility.
Invest in the Testo 0635 9532 digital vane probe to ensure precise and efficient airflow measurement in all your HVAC projects. Order yours today to elevate your diagnostic capabilities!
Common Questions for Testo Digital Vane Probe (Ø 16mm) - Wired
