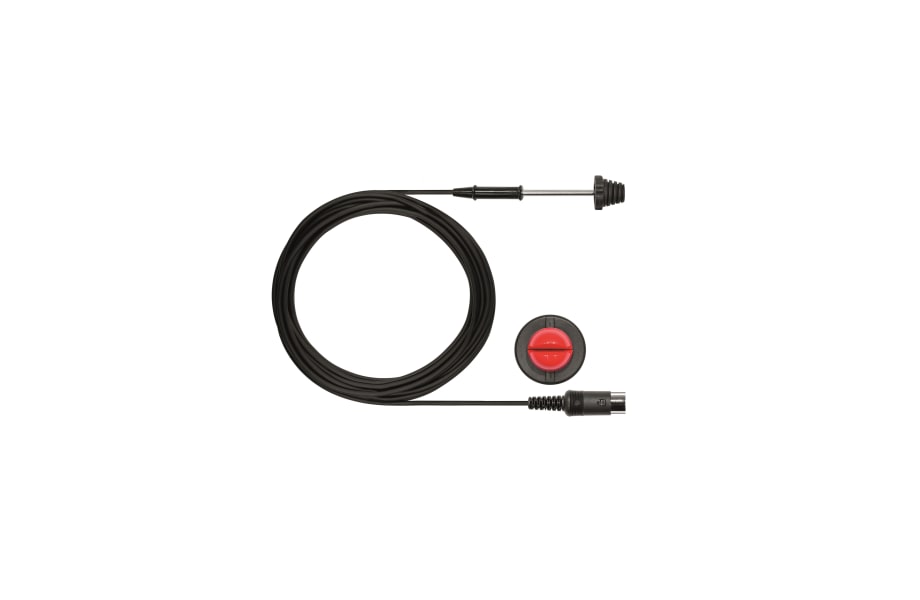

Testo Combustion Air Temperature Probe

This Testo combustion air temperature probe, SKU 0600 9797, is built for HVAC techs and service teams needing accurate air temperature readings for combustion analysis. It helps ensure your flue gas analyser delivers precise results by measuring incoming air.

Getting a solid combustion air temperature reading is crucial, especially when you're fine-tuning burners or diagnosing efficiency issues in Australian conditions, where ambient temperatures can swing widely.

Best For

• HVAC Service Technicians
• Boiler and Burner Specialists
• Industrial Maintenance Teams
• Refrigeration Apprentices learning combustion principles

Compatibility

This probe is designed to seamlessly integrate with Testo's range of combustion and flue gas analysers, ensuring accurate system diagnostics. It's compatible with:

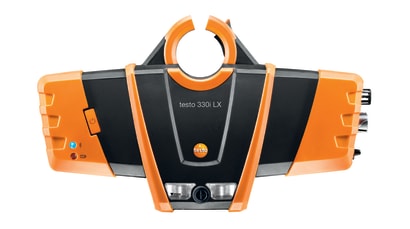

• Testo 330i LX - Advanced flue gas analyzer kit
• Testo 340 - Combustion Analyzer for Commercial and Industrial Applications
• Testo 340 - Boiler and Burner Combustion Analyzer Kit
• Testo 340 - Engine Kit (for tuning and combustion maintenance)
• Testo 340 - Mining Tuner Kit
• Testo 350 - Portable emission analyzer

If you're running a different model, check fittings and specs before ordering.

Features

• Precise 60 mm Immersion Depth: Ensures the sensor sits correctly within the combustion air stream for accurate readings.
• Wide Temperature Range: Measures accurately from 0 to +100°C, suitable for a variety of combustion air applications.
• Quick Reaction Time: Provides a 30-second response, so you get stable readings without unnecessary waiting.
• Durable Metal Housing: Built to withstand the demands of regular field use.
• Attachment Cone Included: Comes with a cone for secure and flexible positioning during measurements.

Technical Specifications

What's in the Box

• 1 x Testo Combustion Air Temperature Probe (0600 9797)
• 1 x Cone for Attachment

Using It on the Job

1. Connect to Analyser: Securely plug the probe into the designated port on your compatible Testo combustion analyser.
2. Position for Reading: Use the included cone to firmly position the probe into the combustion air intake, ensuring the 60 mm shaft is fully immersed where the measurement is required.
3. Stabilisation Time: Allow approximately 30 seconds for the probe to stabilise and provide an accurate reading on your analyser.
4. Monitor Readings: Observe the air temperature reading on your analyser, ensuring it's stable before logging or making adjustments.
5. Post-Use Care: After use, gently wipe the probe clean of any dust or debris and store it safely to prevent damage to the shaft.

Limitations & Safety Notes

• Designed for combustion air temperature measurement only; do not expose to corrosive gases or liquids.
• Ensure the probe is used within its specified temperature range of 0 to +100°C to prevent damage.
• Always follow the safety guidelines provided with your Testo combustion analyser.
• Only for the compatible Testo systems listed above. Check your analyser's manual for accessory compatibility.

Tradie Pro Tip

"When doing a flue gas analysis, make sure your combustion air temperature probe is properly seated and stable. A dodgy ambient air reading throws off all your O₂ corrections, making your analyser data next to useless for fine-tuning."

Pair With

This probe is an essential accessory for any Testo Flue Gas Analyser. Consider pairing it with a Testo 330i LX or Testo 340 combustion analyser for a complete diagnostics kit. You might also find an Extension Cable handy for those hard-to-reach spots.
