Testo 890 Professional Thermal Imaging Camera Kit - 0563 0890 X5

The testo 890 thermal imager means you are ideally equipped both for professional industrial thermography and for building thermography: e.g. for inspecting voltage systems, high-temperature measurement, circuit board analysis, control of solar plants, complete building shell thermography and building thermography for energy consultancy.

Key Features

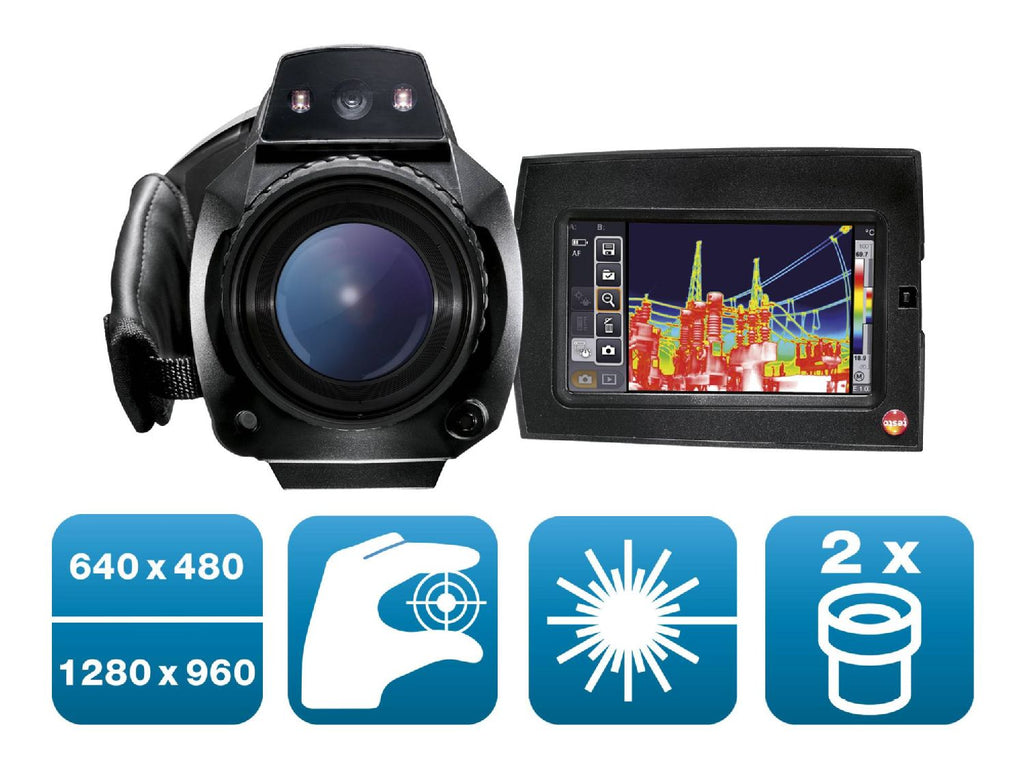

• testo 890 professional thermal imager: resolution 640 × 480 pixels, upgradable to 1280 × 960 pixels with SuperResolution technology, thermal sensitivity < 40 mK
• Choice of lens between standard, 25° and telephoto lens – you are free to choose two lenses
• Sequence capturing in the instrument a possible option, humidity calculation, SiteRecognition, panorama image assistant, JPEG storage function and other practical features
• Integrated digital camera, optionally exchangeable lenses, many more features, large scope of delivery including transport case, memory card, professional software, etc.

Features and Capabilities

All the important information about the testo 890 kit with two lenses

• Up to 307,200 temperature measuring points: a detector size of 640 x 480 pixels guarantees accurate detection. SuperResolution technology even boosts image quality to 1280 x 960 pixels!
• Thermal sensitivity < 40 mK: even the smallest temperature differences can now be seen
• You can also choose to save thermal images as JPEGs
• Process analysis package (optional): the combination of fully radiometric video and sequence capturing in the instrument enables wireless measurement and easier handling at the measuring location
• The camcorder design with wrist strap, along with the rotatable, fold-out display, makes taking images considerably easier. This makes it possible for a wide variety of camera angles, as well as one-hand operation
• Panorama image assistant: individual images are combined into a panoramic image as soon as they are taken. This means, for instance, that you can take thermal images of entire building shells without having to laboriously compile them or assess them individually
• SiteRecognition technology: with similar measurement objects, the thermal imager identifies measuring locations immediately, assigns them automatically and archives them accordingly
• High-temperature option: the measuring range can be extended up to 1,200°C
• Special measuring mode for detecting areas susceptible to mould: the dewpoint in the room is calculated by manually entering the ambient temperature and humidity. The surface temperature value measured by the camera is then compared to the dewpoint. The display now shows the risk of mould in traffic light colours (red, yellow, green). The optional radio humidity probe makes things easier: automatic transmission of readings means that manual input of humidity and ambient temperature is no longer needed
• FeverDetection (optional): use the assistant to check people for high body temperature in public places and in means of transport – for public health protection
• Lens can be exchanged
• Voice recording (as comments on the images) possible with headset which is included in the scope of delivery
• Integrated digital camera with power LEDs: you can take well-lit, real images to go with every thermal image - making documentation and assignment easier
• Auto-focus for easy one-hand operation and less blurred images
• Minimum focus distance 10 cm

Application

The testo 890 professional thermal imager means you are ideally equipped for the following applications:

Preventive maintenance
Ideal for the early identification of imminent malfunctions or defects on plants and machines: Reliably record temperature increases with a thermal imager.
 - Fast detection of critical thermal status (so-called HotSpots) during continuing operation
 - Avoid expensive damage, downtimes and fire risks on plants and machines
 - Electrical maintenance:
          Test switching cabinets, electrical conditions, photovoltaic plants
          Evaluate heat status in low, medium and high voltage plants
 - Mechanical maintenance:
          Identify wear on machines
         Test motors, bearings, shafts

Detecting structural defects and ensuring construction quality
- Detect potential building defects, prove quality and the implementation of construction measures without contact – with the help of thermal images
- Test air-tightness of windows and doors
- Locate insulation errors and cold bridges in a building shell
- Detect and visualize mould-risk areas

Professional energy consultation
- Analyze building shells, evaluate energy efficiency, identify energy-saving potential with a thermal imager from Testo
- Easy recording and documentation of energy loss from buildings
- Prove faulty insulation and cold bridges without contact, and visualize them in an infrared image
- Localize untight spots in new buildings quickly and easily in combination with Blower Door

Present and analyze building shells in an image
- Detailed thermography of large buildings
- Visualize thermal irregularities in a building shell – in a thermal image: The panorama assistant stitches several recordings together to one overall image

Preventing mould formation
- Localize mould-risk areas quickly and easily: These areas are presented in red in the imager display when the imager is in humidity mode

Easy checking of heating systems and installations
- Test heating and air conditioning/ventilation systems: Use a thermal imager to identify irregularities in the temperature distribution quickly and easily
- Localization of the course of heating loops in underfloor heating systems
- Testo radiators for silting
- Measure flow and return temperatures

Localize pipe ruptures
- Reliably determine pipe ruptures with the help of a thermal imager – without unnecessarily opening walls and floors
- Precise localization of leakages in underfloor heating and other inaccessible pipe systems

Locating leaks in flat roofs
- Detection of damp in roofs: Based on temperature differences (such as occur mainly in flat roofs), thermal imagers show areas on the roof with sealed-in moisture or damaged insulation

More reliability in quality assurance and production monitoring
- A Testo thermal imager supports process control and product quality assurance
 -Identify foreign bodies in production processes and anomalies in the heat distribution of components quickly and without contact
 -Fast and easy monitoring of filling level in closed liquid tanks

Safe high-temperature measurement
- Measure high temperatures safely from a distance: Some of the thermal imager models from Testo even measure up to 1200 °C with the high-temperature option
- Ideal for use in industrial maintenance
- Identify wear, insulation damage and coking in furnaces and smelters
- Thermography of large furnaces and machines on one thermal image – e.g. rotary kilns in cement production

Research and development
- Identify thermal anomalies and monitor cooling and heating processes in real time
- Precisely visualize critical temperatures on circuit boards: Thanks to the finest geometric resolution of the high-quality Testo thermal imagers
- Analyze heat occurrence and conduction in circuit boards, and optimize development processes: The process analysis package offers practical features such as video recording and image sequence storage for easy analysis of thermal processes

Energy supply (production and distribution)
- Thermographic testing of energy distribution plants: With thermal imagers, you can test thermal warming from a safe distance without contact, e.g. on high-voltage lines and in transformer stations
- Non-contact testing of photovoltaic plants: Using solar thermography, module defects and installation faults can be reliably detected

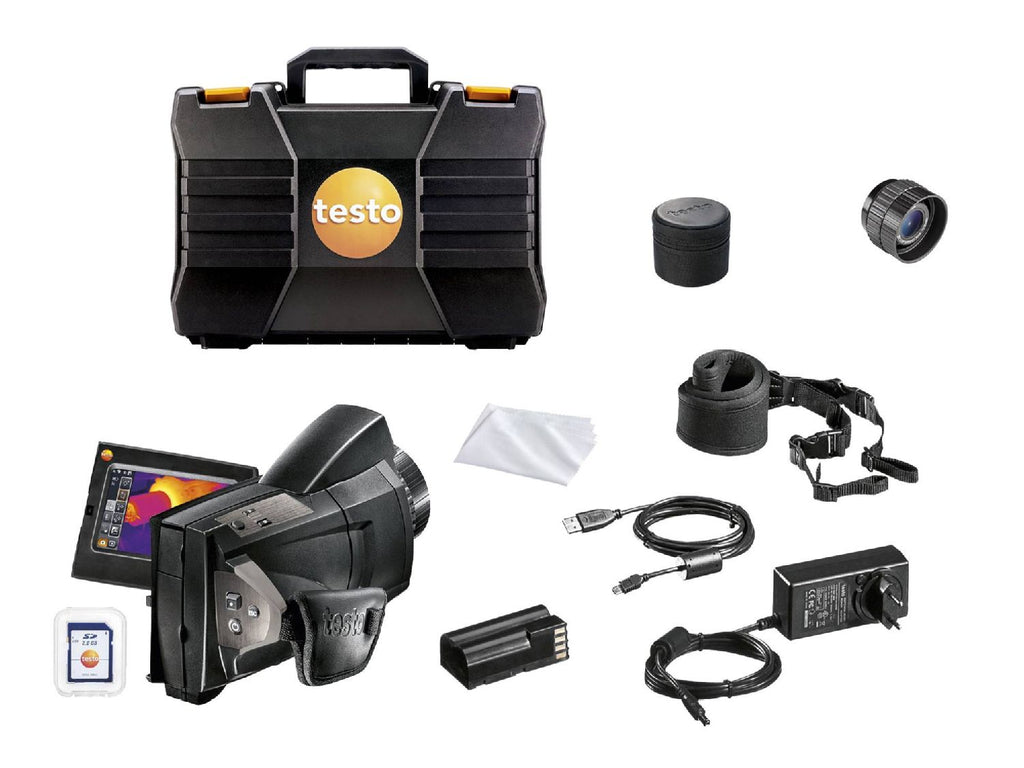

What's Included

• testo 890 thermal imager with SuperResolution

• 2 x lenses (choice between standard, 25° and telephoto lens)

• Transport case

• Pro software IRSoft (free download)

• Carrying strap for the thermal imager

• SD memory card

• USB cable for data transfer to the PC

• Lens cleaning cloth

• Mains unit

• Li-ion rechargeable battery

• Headset for voice recording

• Lens case

• Lens protective glass

• Spare rechargeable battery

• Fast battery charger

Note: You are free to choose TWO from a total of three lenses:

• 42° x 32° standard lens:
• Ideal for inspecting closer measurement objects
• Large field of view
• 25° x 19° lens:
• Ideal for use in applications involving preventive maintenance
• 15° x 11° telephoto lens:
• Makes it possible to take outstanding images of measurement objects at medium and longer distances

Please contact us for lens availability.
