Testo 890 Professional Thermal Imaging Camera with 1 Lens - 0563 0890 X1

Testo 890 Thermal Imager – One-Lens Kit

Overview

The Testo 890 delivers crisp thermal images for tough jobs in industry and buildings. It uses a 640 × 480 detector and boosts to 1280 × 960 with SuperResolution. Sensitivity is < 40 mK, so small temperature changes are easy to see.

Record fully radiometric video for process work. Every pixel is a measurement point for deep analysis on the PC.

Key Features

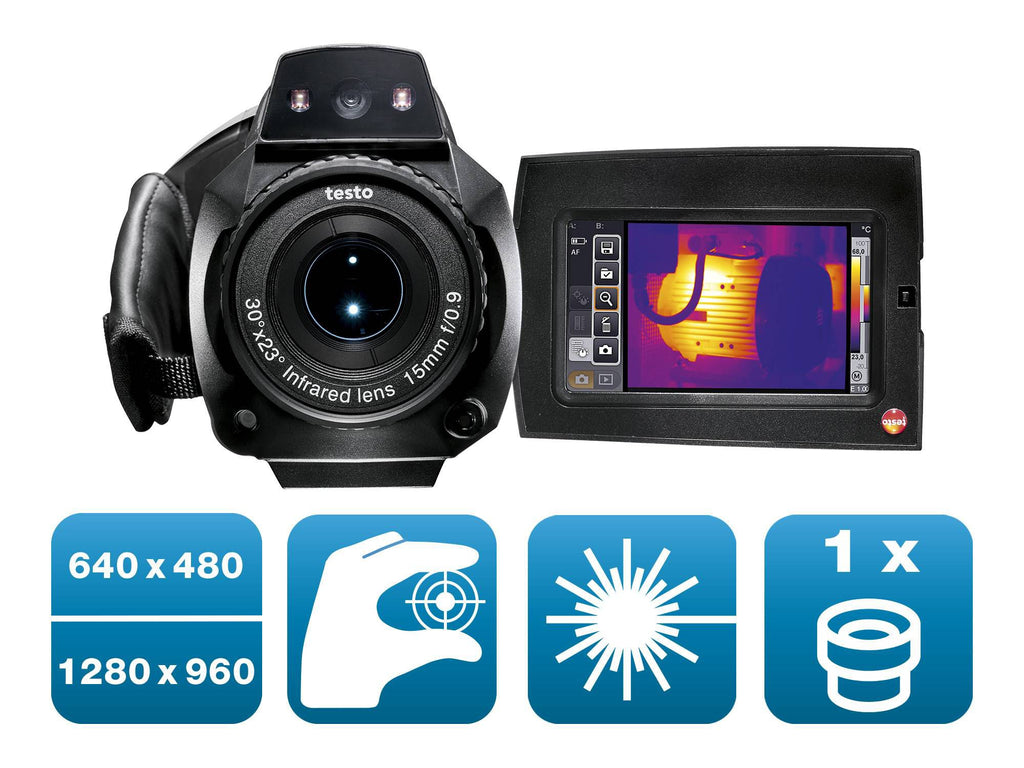

• High detail: 640 × 480 IR; SuperResolution up to 1280 × 960.
• High sensitivity: NETD < 40 mK @ 30 °C.
• Smart workflow: JPEG save, optional sequence capture, SiteRecognition, panorama assistant.
• Easy handling: camcorder grip, wrist strap, fold-out display, one-hand use.
• High-temp ready: optional range up to 1200 °C.
• Mould risk mode: dewpoint overlay (red / yellow / green). Works best with the optional radio humidity probe.
• Integrated visual camera: with power LEDs for clear documentation photos.
• Auto-focus + close focus: down to 10 cm.
• Voice notes: record comments via included headset.
• IRSoft software: pro reporting and analysis on PC.

Applications

Preventive Maintenance

• Find hot spots under load to cut downtime and fire risk.

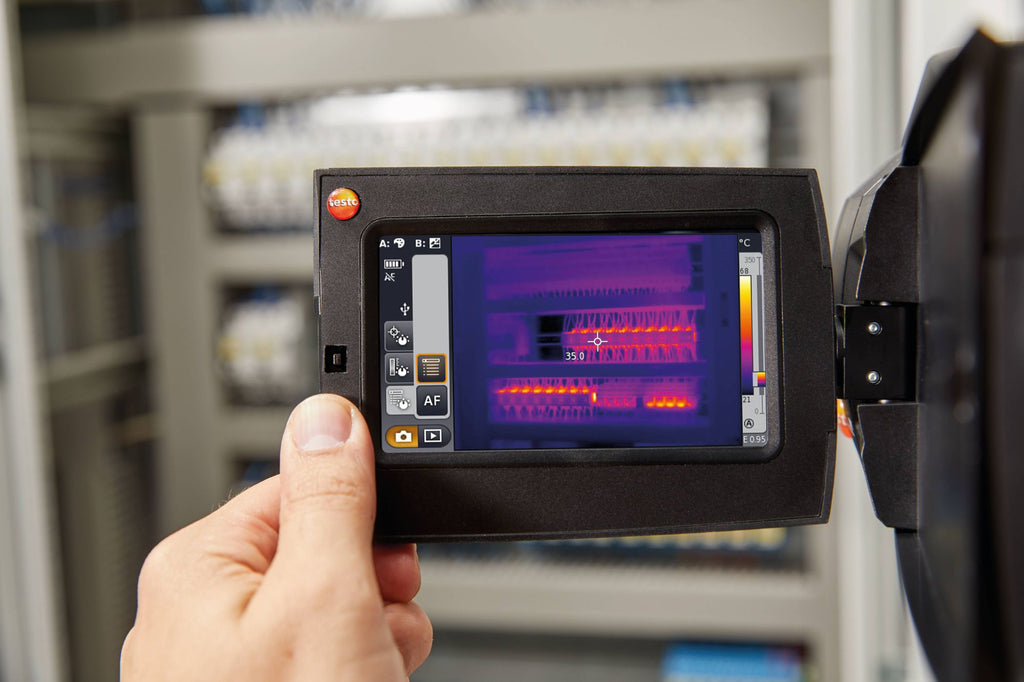

• Electrical: switchboards, PV arrays, LV/MV/HV gear.
• Mechanical: motors, bearings, shafts, rotating plant.

Building & Energy

• Spot insulation gaps, thermal bridges, and air leaks.
• Check windows and doors for air-tightness.
• Run energy audits and document losses with clear images.
• Use panorama assistant to stitch whole façades.
• Show mould risk areas with the humidity mode.

HVAC & Plumbing

• See temperature balance across coils, ducts, and rooms.
• Trace underfloor loops and compare flow/return temps.
• Pinpoint leaks and pipe breaks with minimal opening.

Roofs & Envelopes

• Detect trapped moisture and damaged insulation (flat roofs shine here).

Quality, R&D, and Process

• Monitor heat profiles and fill levels in closed tanks.
• Board-level hot spot checks; log thermal processes with radiometric video.

High-Temperature & Utilities

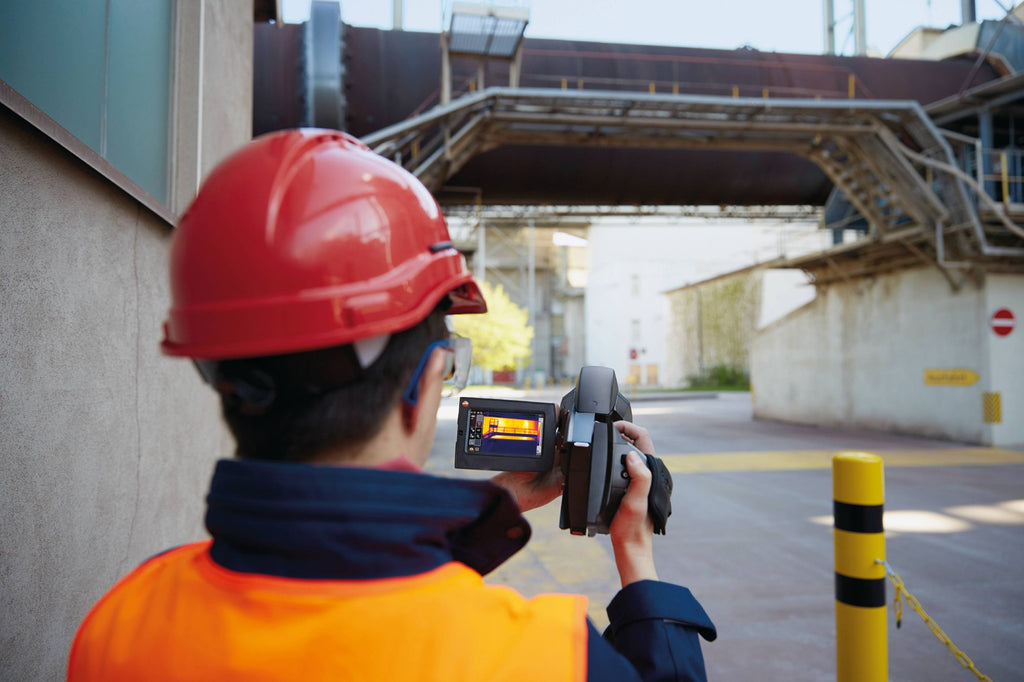

• Image furnaces, kilns, and smelters at a safe distance (option to 1200 °C).
• Scan transformers and lines; check PV modules for faults.

Choose Your Lens (One Included)

• 42° × 32° Standard: wide view for close inspections and façades.
• 25° × 19°: versatile mid-range lens for routine maintenance.
• 15° × 11° Telephoto: sharp detail at medium to longer distances.

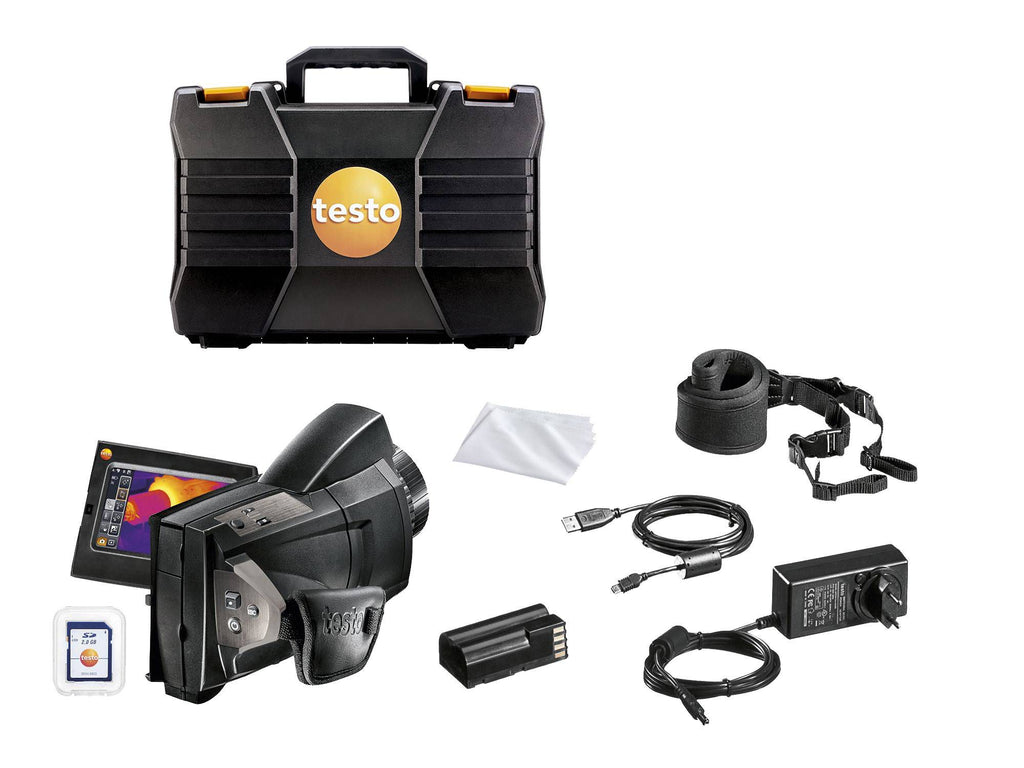

What’s Included

• Testo 890 thermal imager with SuperResolution
• One lens of your choice: Standard (42° × 32°), 25°, or 15° × 11° Telephoto
• Robust transport case
• IRSoft Pro software (free download)
• SD card (corrected from “cart”)
• USB cable, mains unit, carrying strap
• Lens cleaning cloth
• Li-ion rechargeable battery

Specifications (Selected)

Spectral range	7.5 – 14 µm
IR resolution	640 × 480 (to 1280 × 960 with SuperResolution)
Thermal sensitivity	< 40 mK @ +30 °C
Frame rate	33 Hz (EU units 9 Hz)
Field of view by lens	42°×32° (Std), 25°×19° (25°), 15°×11° (Tele), 6.6°×5° (Super-tele)
Min focus distance	0.1 m (Std), 0.2 m (25°), 0.5 m (Tele), 2 m (Super-tele)
SuperResolution IFOV	0.71 / 0.43 / 0.26 / 0.11 mrad (Std / 25° / Tele / Super-tele)
Temp ranges	−30…+100 °C; 0…+350 °C; 0…+650 °C; option to +1200 °C
Display	4.3″ LCD touchscreen (480 × 272); digital zoom 1×, 3×
Imaging I/O	IR + 3.1 MP visual; USB 2.0; Micro-HDMI; JPEG save
Analysis	Hot/Cold spot; up to 10 points; 5 areas (min/max/avg); isotherms; alarms
Assistants	Panorama, SiteRecognition, surface moisture distribution, Solar mode
Power	Fast-swap Li-ion (~4.5 h), charge in instrument/charger; mains capable
Environment	−15…+50 °C op.; −30…+60 °C storage; 20–80% RH; IP54; 2G vibration
Size / weight	253 × 132 × 111 mm; 1.63 kg; 1/4″-20 UNC tripod
Materials	ABS housing
Standards	EU directive 2004/108/EG
