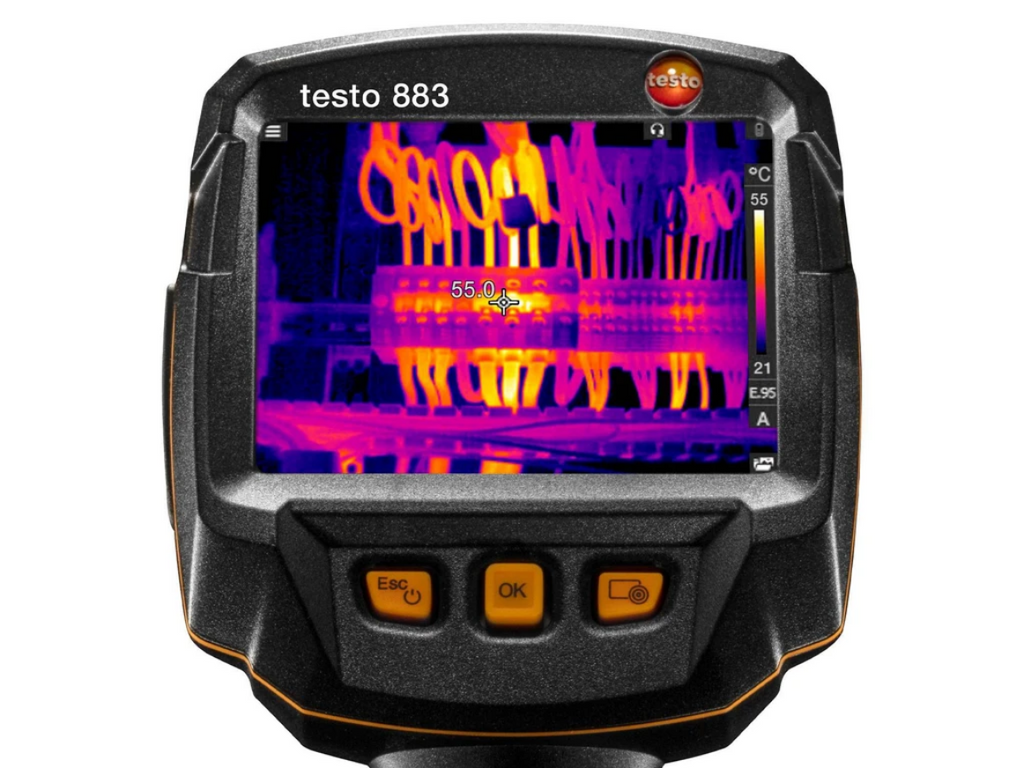

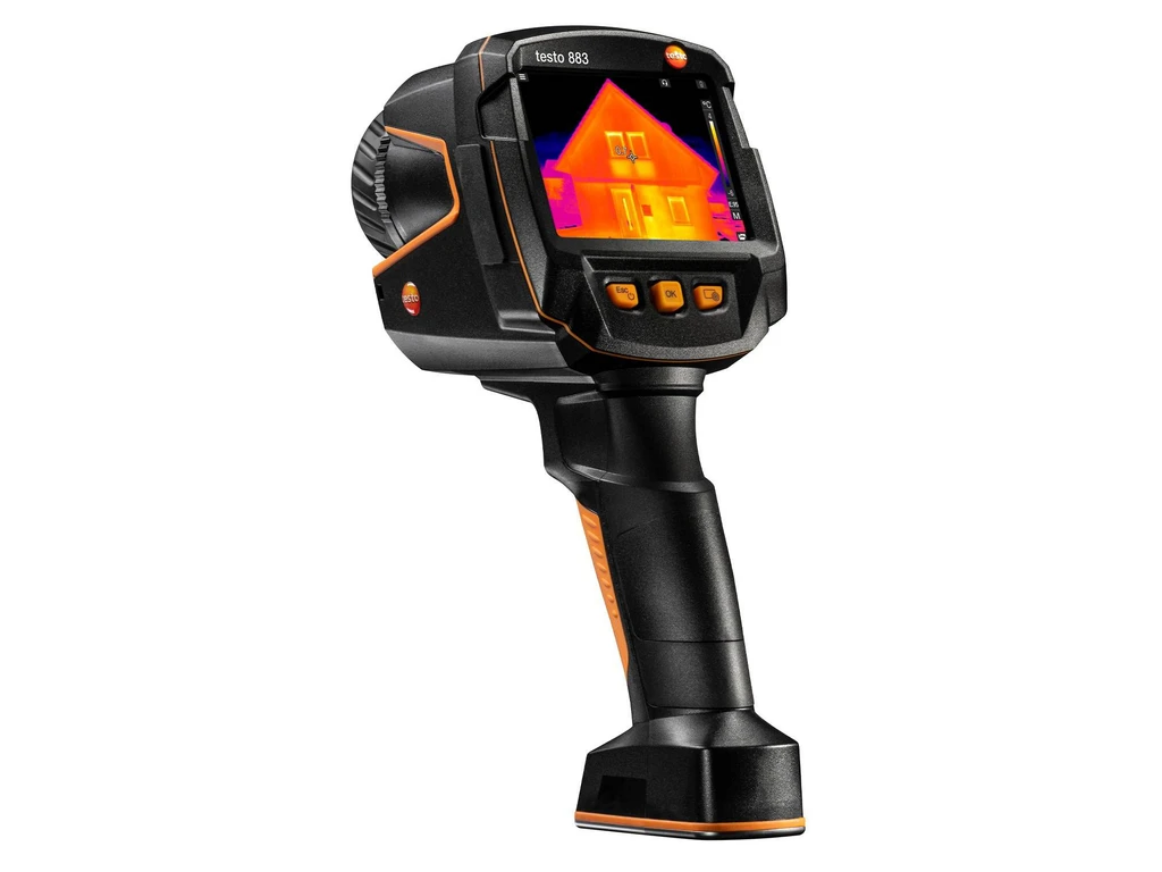

Testo 883 - Thermal Imaging Camera Kit 0563 8830

The testo 883 thermal imager was developed especially for maintenance staff, facility managers, and building energy consultants who wish to rely on the best thermal image quality and helpful features for their thermal measuring tasks. This saves time and ensures flawless work results.

In facility management and maintenance, testo Site Recognition technology pays off. This feature automatically assigns thermal images (e.g. of switching cabinets) to the correct measurement object, thus eliminating the need for tedious manual image management.

In building energy consulting, many experts appreciate the professional software testo IRSoft, included in the testo 883. With this, not only can thermal images be comprehensively analyzed, but they can also be summarized in impressive-looking reports. This reduces the time required and makes it easier to impress customers over the long term.

Key Features

• Best image quality: IR resolution of 320 x 240 pixels (with SuperResolution 640 x 480 pixels); NETD < 40 mk
• Helpful features: testo SiteRecognition intelligent image management and testo ScaleAssist automatic contrast adjustment
• testo SiteRecognition enables intelligent image management. Thermal images are automatically assigned to the correct measurement object based on the QR code at the measuring location – this eliminates the need for tedious, manual image assignment on the PC
• testo ScaleAssist: Automatic contrast adjustment for objectively comparable thermal images and easier detection of weak spots
• Testo IRSoft: Analyze thermal images comprehensively with the intuitive, professional PC software and create impressive reports within a short period
• Testo Thermography App: With the app, your smartphone/tablet becomes a second display and a remote control for your thermal imager. You can quickly create, send or save reports on site
• Interchangeable telephoto lens for distant objects and outdoor recording
• Manual focus for sharp thermal images from a distance of 10 cm
• Can be operated via touchscreen and joystick
• Wireless transmission of readings from a clamp meter or humidity probe directly into the thermal image via Bluetooth

Specifications

• Measuring range: -30 to +650°C
• Infrared Resolution: 320 x 240 pixels
• SuperResolution: 640 x 480 pixels
• Thermal sensitivty: < 40 mK
• Field of View: 30° x 23° (Standard lens), 12° x 9° (Telephoto lens)
• Image Size: 3 MP
• Storage device: Internal Memory (2.8 GB)
• Free Software
• Battery type: Fast-charging, Li-ion battery can be changed on-site
• Operating time: ≥ 5 hours
• Housing protection class: IP54
• Storage temperature: -30 to +60 °C
• Operating temperature: -15 to +50 °C
• Dimensions: 171 x 95 x 236 mm

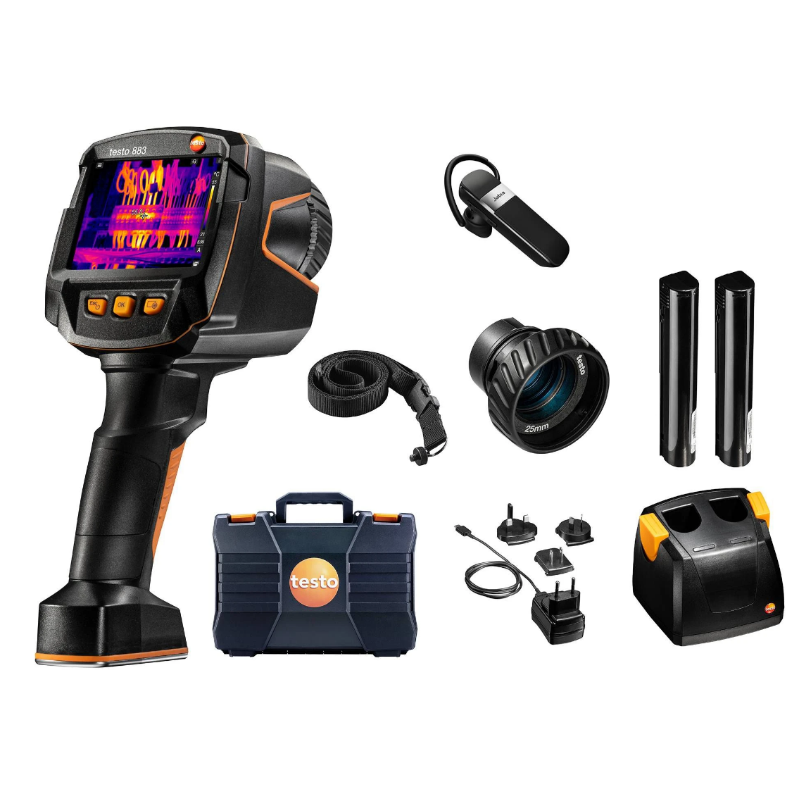

What's included

• Testo 883 thermal imager with standard lens 30° x 23°
• Telephoto lens 12° x 9°
• Robust case
• Professional software IRSoft (free download)
• USB-C cable
• USB mains unit
• Li-ion rechargeable battery
• Spare rechargeable battery
• Battery-charging station with USB cable
• Carrying strap for the thermal imager
• Bluetooth headset
• Short instructions
• Certificate of conformity

Instructions & Manuals

Testo 883 - Thermal Imaging Camera Kit 0563 8830 Data Sheet

Warranty

2 Years Manufacturer's warranty
