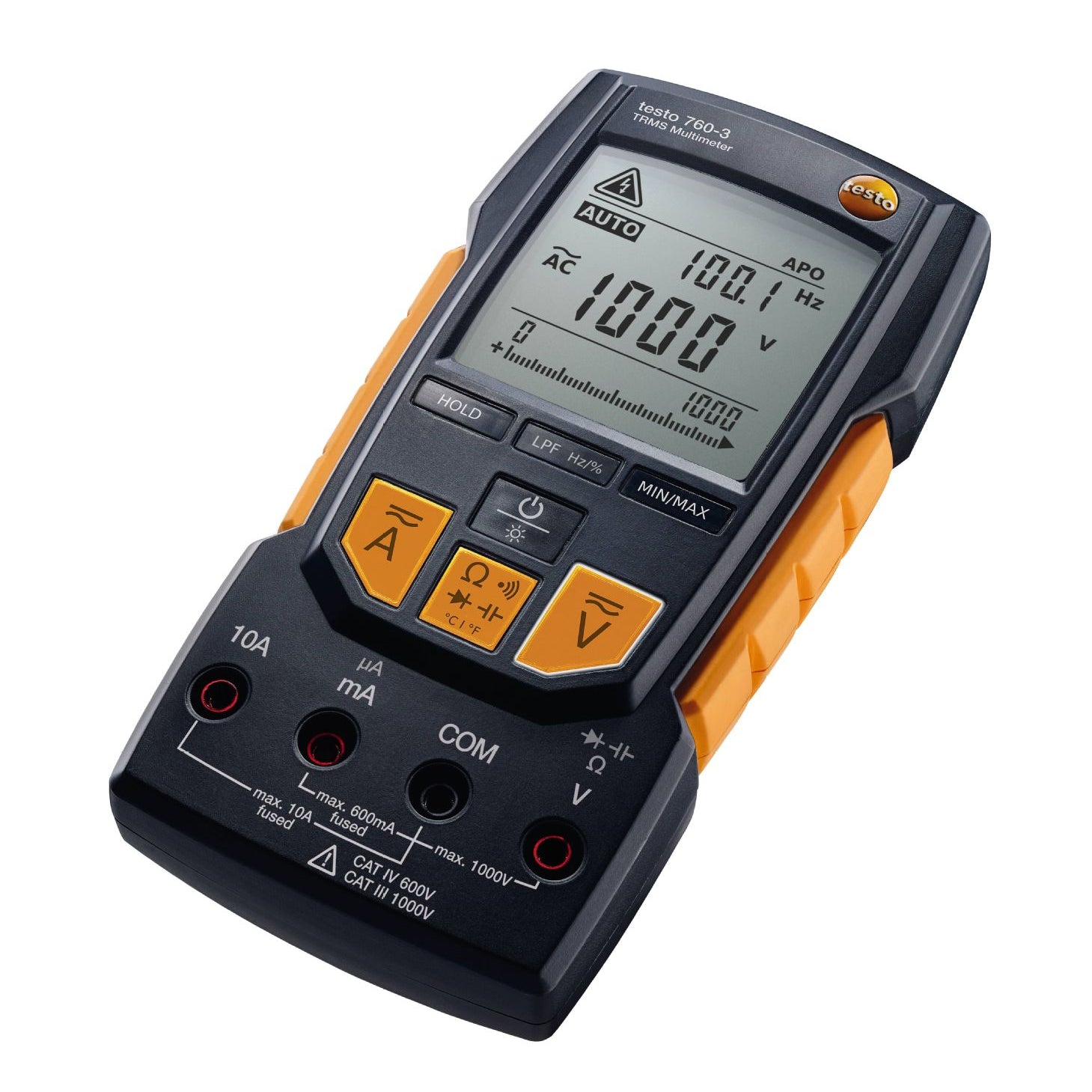

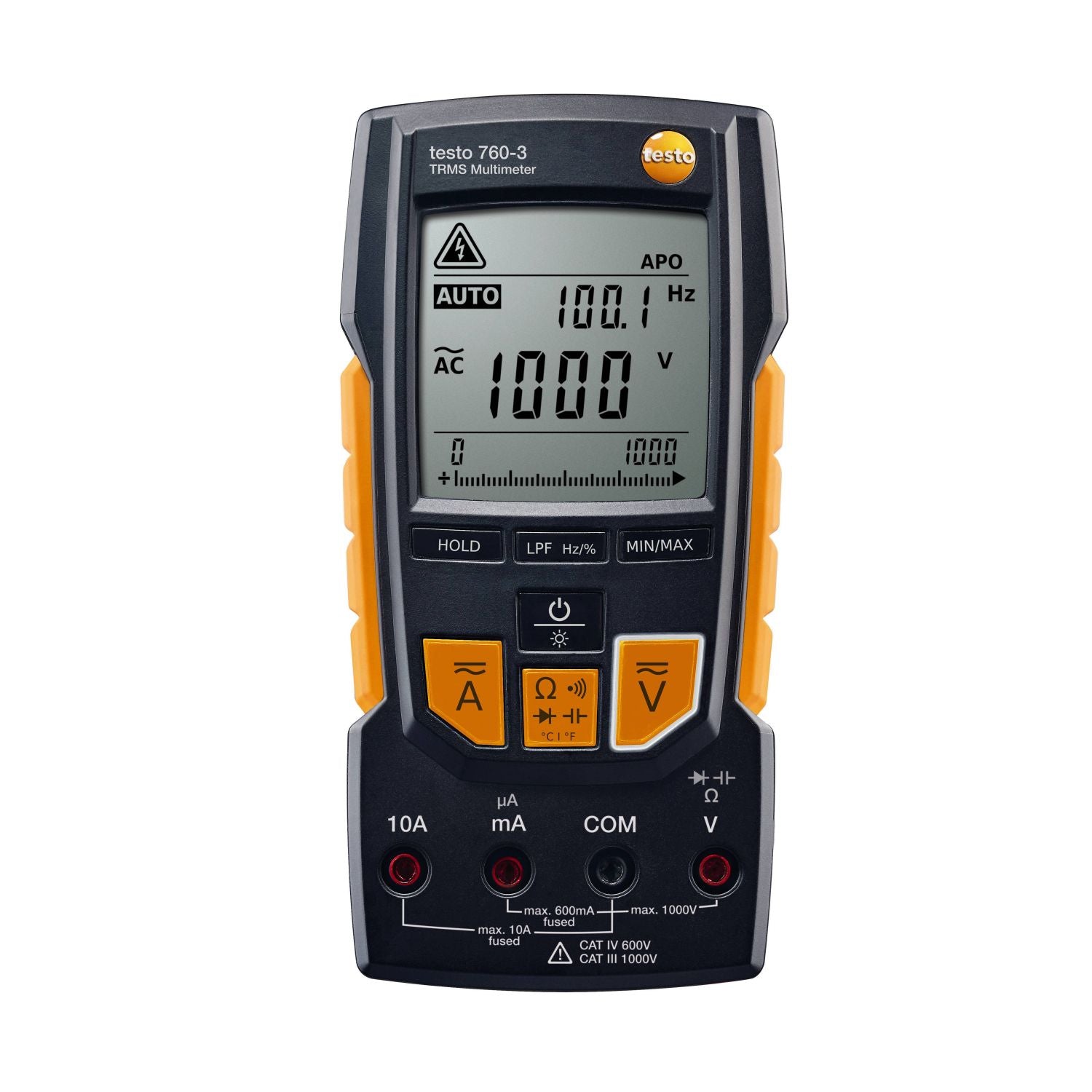

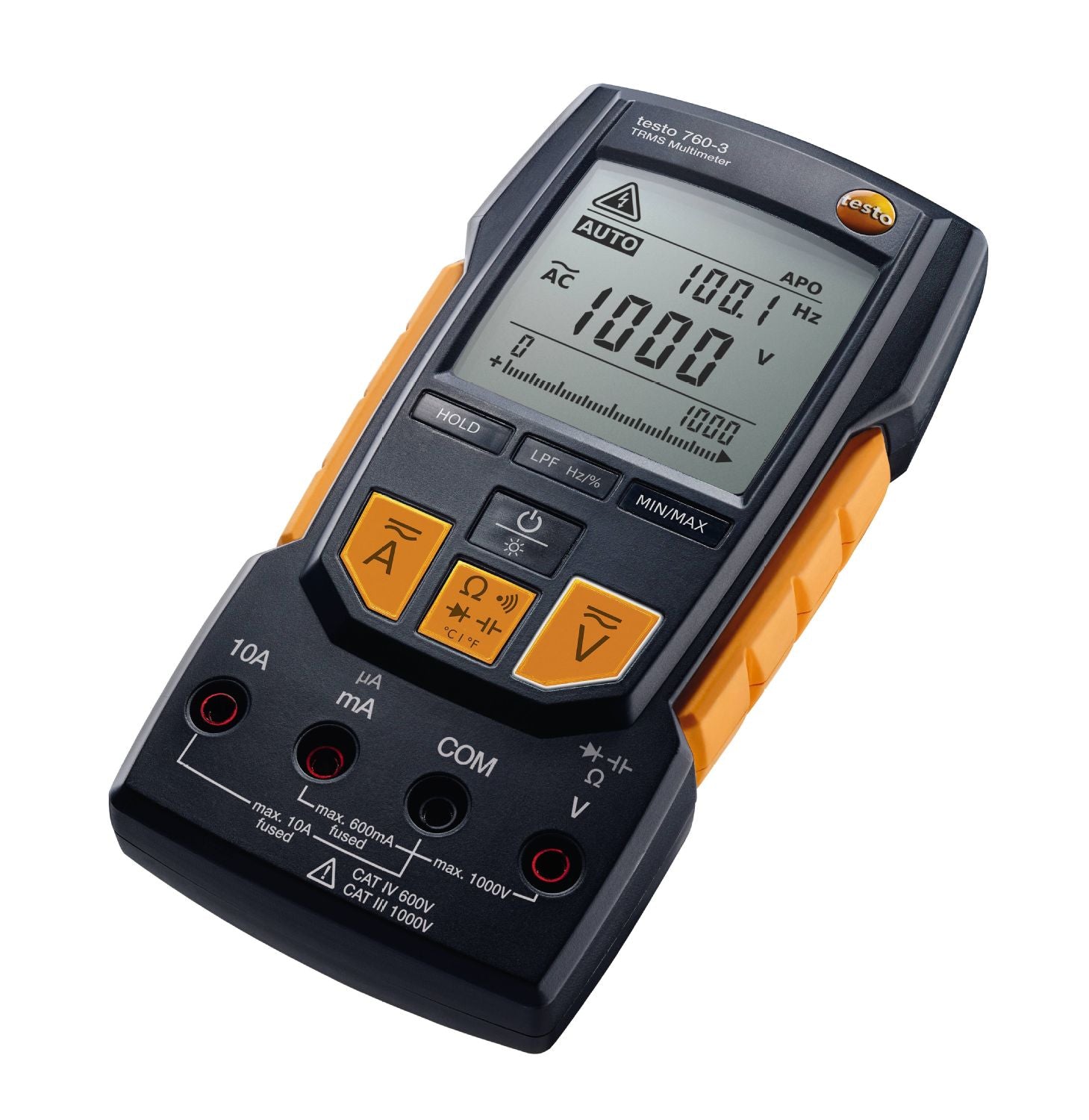

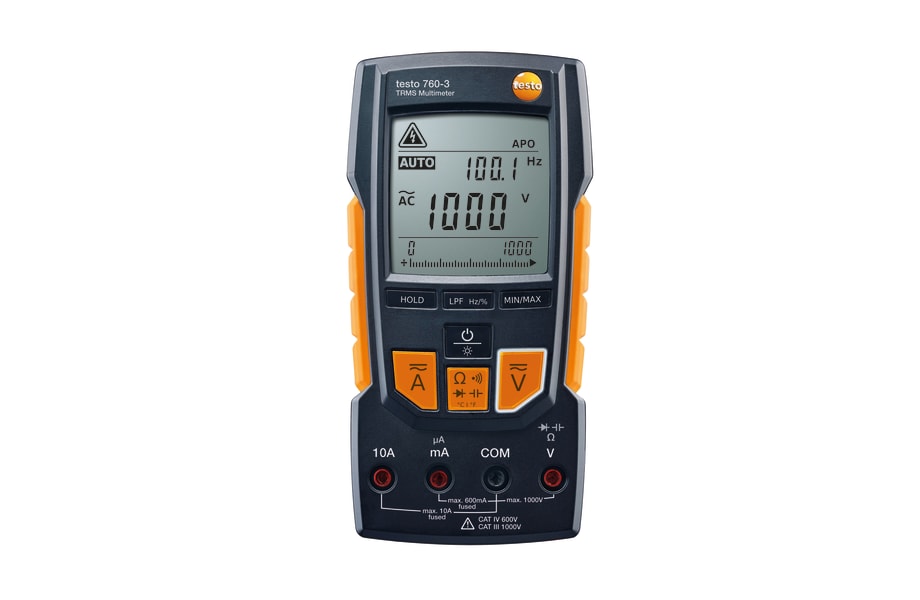

Testo 760-3 Digital Multimeter

The Testo 760-3 Digital Multimeter is a reliable workhorse for any HVAC tech needing to check electrical parameters and temperature on the job. In the Australian climate, consistent power and precise temperature readings are critical for fault finding and commissioning split systems, VRF, or commercial refrigeration.

I've seen too many fuses blown on cheap meters because leads were plugged into the wrong socket – this Testo unit's auto-test setup helps prevent that, saving you time and hassle on site.

Best For

HVAC service techs, refrigeration mechanics, electricians working on HVAC-R equipment, and anyone needing reliable electrical and temperature diagnostics in a rugged package.

Compatibility

This meter is ideal for testing voltage supply in live wires, current measurement in the lower ranges, checking voltage supply for frequency-controlled motors, measuring ionization flow of heating systems, continuity tests on switching components, and resistance measurement of sensors or motor windings. It accepts Type K thermocouples for temperature measurement.

Features

• 1,000 V AC/DC Voltage Range: Capable of handling high voltage measurements common in commercial and industrial HVAC setups.
• TRMS (True Root Mean Square): Provides accurate voltage and current readings even on non-sinusoidal waveforms, crucial for inverter-driven equipment.
• Auto-Test Setup: Detects lead connection and prevents incorrect switching between voltage and current, significantly reducing the risk of blowing the meter's fuse.
• Low Pass Filter: Ensures accurate measurements when working on variable frequency drives (VFDs) or other frequency-controlled motors.
• Type K Thermocouple Input: Allows for direct temperature measurement, expanding the meter's diagnostic capabilities.
• Rugged Overmold Housing: Designed to withstand the knocks and bumps of daily use on a busy worksite.
• Large, Backlit Display: Easy-to-read dual readout with an analog bar graph, even in dimly lit plant rooms or roof spaces.
• Auto Power Off (APO): Helps conserve battery life, so your meter is ready when you need it.

Technical Specifications

What's in the Box

• Testo 760-3 Digital Multimeter
• Test Leads
• 3 x AAA Batteries
• Instruction Manual
• Quick Start Guide
• Certificate of Conformity

Using It on the Job

1. Safety First: Before performing resistance or continuity checks on equipment, always isolate the power and implement appropriate lockout/tagout procedures.
2. Voltage Checks: When measuring live voltage, ensure your test leads are rated for the voltage and are correctly inserted into the meter's V/Ohm ports. The 760-3's auto-detection helps confirm this.
3. Temperature Measurement: Connect a suitable Type K thermocouple probe to the meter. Ensure solid contact with the surface or medium for the most accurate temperature readings.
4. TRMS Advantage: For equipment with variable speed drives or inverter controls, rely on the TRMS function to get true readings of complex waveforms, avoiding misleading averages.
5. Post-Use Care: After each job, wipe down the meter and leads to remove dust and grime. Store the leads neatly using the integrated holder to prevent damage.

Limitations & Safety Notes

• Always verify that the meter's CAT rating (e.g., CAT III 1000V) is appropriate for the electrical circuit you are testing.
• Never attempt to measure current by connecting the multimeter directly across a voltage source, as this can cause severe damage to the meter and create a safety hazard.
• Regularly inspect test leads for any signs of damage, such as cracked insulation or exposed wiring, and replace them if necessary.
• All electrical work should be performed in accordance with Australian electrical safety standards and Safe Work Australia guidelines.
• While the meter can check electrical components of refrigeration systems, any work involving opening the refrigerant circuit requires a current ARCtick licence.

Tradie Pro Tip

Even with smart meters like the 760-3, a quick visual check of your lead connections before you hit the 'on' button can save you a fuse and a trip back to the van. Keep your display clean, especially on dusty rooftop jobs, to avoid squinting at readings.

Pair With

Pair with a Testo clamp meter adapter for non-contact current measurement, or grab a range of Type K temperature probes (like the pipe clamp probe) for a comprehensive diagnostic kit. Check out our Testo Electrical Measuring or Temperature Measurement categories for more essential tools.
