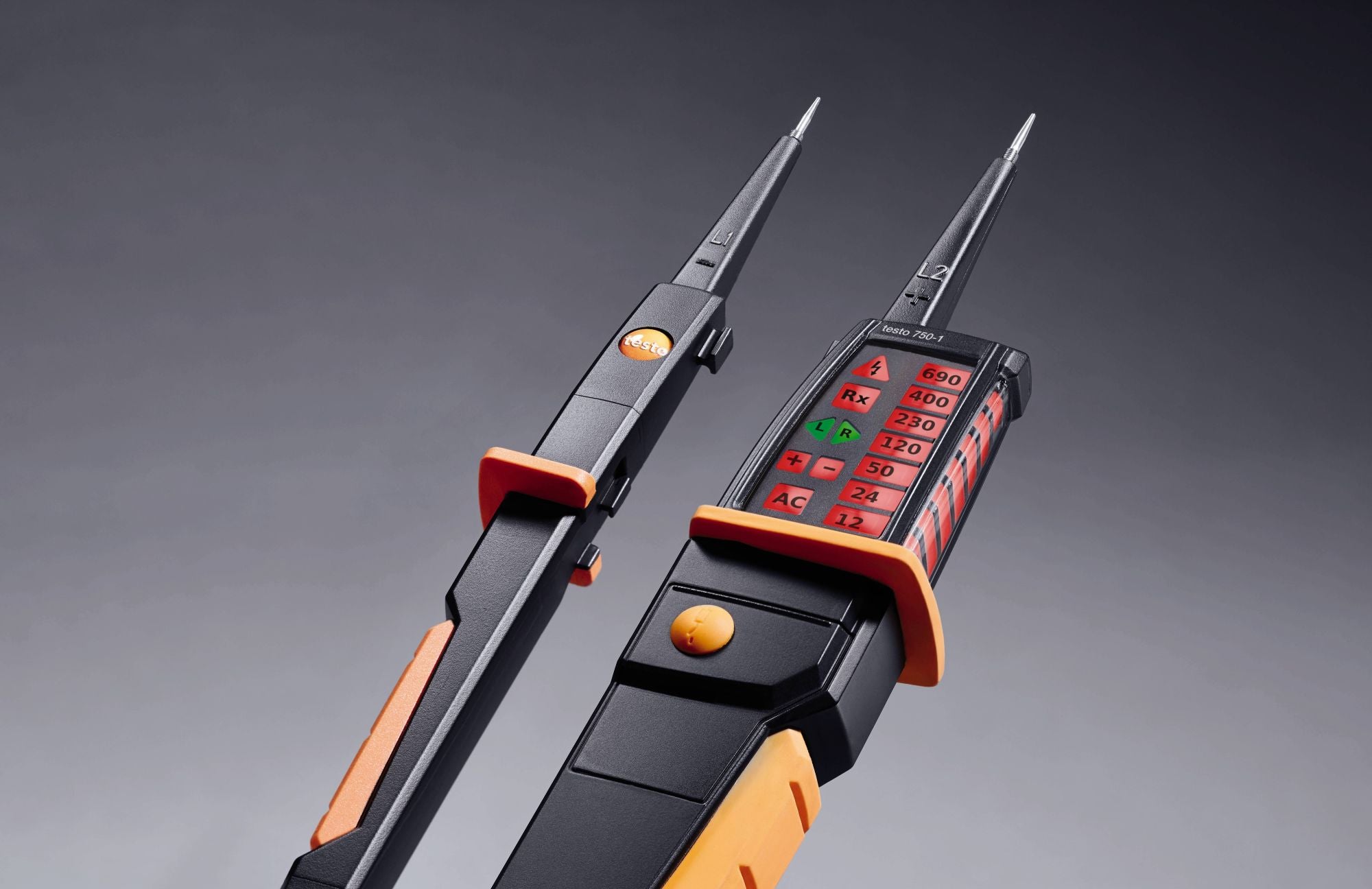

Testo 750-1 Voltage Tester - 0590 7501
Your reliable companion when it comes to testing electrical systems and equipment. The all-around LED display and unique fibre-optic technology mean the voltage indication can be seen clearly and distinctly from any position with this voltage tester.
In contrast to the standard voltage testers on the market, the testo 750-1 voltage tester has an extremely practical all-around LED display that can easily be seen in every work position and from any location. In addition, large fiber-optic illuminators show the presence of voltage clearly and distinctly. The deep-seated anti-slip ring, the ergonomic handle shape, and the robust housing provide greater comfort when working. The robust design means the voltage tester is durable and reliable, even when used intensively.
The testo 750-1 voltage tester enables voltage or de-energization on electrical circuits or systems to be determined reliably. The instrument meets the latest EN 61243-3:2010 voltage tester standard and has a safety specification according to CAT III. In addition, it is suitable for continuity testing and rotating magnetic field measurement.
Specifications
- Clear, patented all-round LED display
- Meets the latest DIN EN 61243-3:2010 voltage tester standard
- Safety specification according to CAT 3 & CAT 4
- Robust housing with ergonomic handle and anti-slip ring
TECHNICAL DATA |
TESTO 750-1 |
TESTO 750-2 |
TESTO 750-3 |
| Voltage testing | 12 to 690 V | 12 to 690 V | 12 to 690 V |
| Continuity testing | < 500 kΩ | < 500 kΩ | < 500 kΩ |
| Rotating magnetic field testing | 100 to 690 V at 50/60 Hz |
100 to 690 V at 50/60 Hz |
100 to 690 V at 50/60 Hz |
| Single pole phase testing | - | 100 to 690 V at 50/60 Hz |
100 to 690 V at 50/60 Hz |
| RDC/RC trigger function | - | YES | YES |
| LC display | - | - | YES |
| Measuring point illumination | - | YES | YES |
| Overvoltage category | CAT4/600 V CAT3/1,000 V |
CAT4/600 V CAT3/1,000 V |
CAT4/600 V CAT3/1,000 V |
| Protection class | IP 64 | IP 64 | IP 64 |
| Operating temperature | -10 to +50°C | -10 to +50°C | -10 to +50°C |
| Storage temperature | -15 to +60°C | -15 to +60°C | -15 to +60°C |
| Dimensions (L x W x H) | 270 x 65 x 35 mm | 270 x 70 x 35 mm | 270 x 70 x 35 mm |
| Weight | 119 g | 243 g | 243 g |
| Warranty | 2 years | 2 years | 2 years |
| Authorizations | TÜV, CSA, CE | TÜV, CSA, CE | TÜV, CSA, CE |
| Standard | EN 61243-3:2010 | EN 61243-3:2010 | EN 61243-3:2010 |
