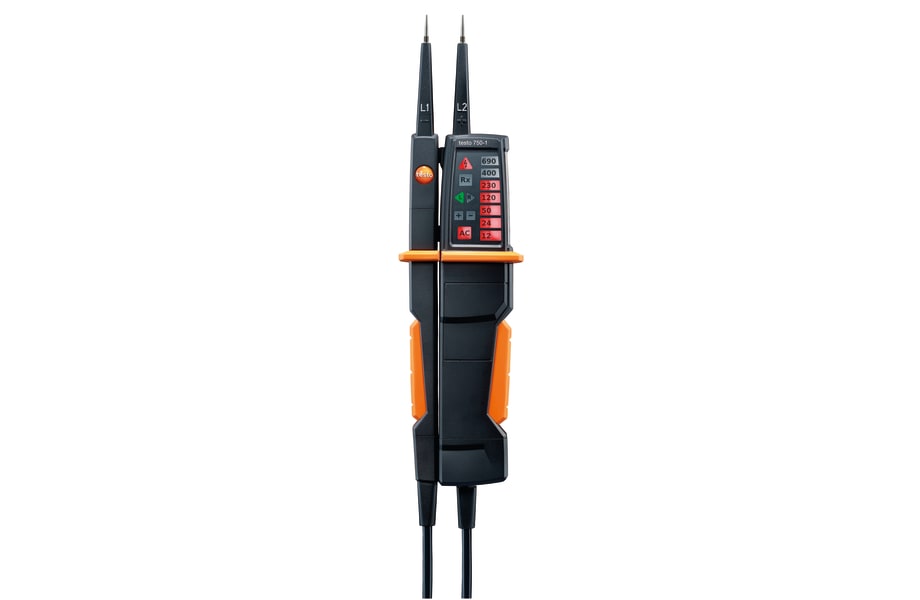

Testo 750-1 Digital Voltage Tester

The Testo 750-1 Digital Voltage Tester is a solid choice for any HVAC tech needing to quickly and safely verify electrical circuits. It gives you a clear, all-around viewable LED indication, which is a real lifesaver when you're perched on a ladder or working in a tight spot under a roof.

This tester helps you confirm de-energisation before you start work, keeping you safe on every job, from split system installs to commercial chiller maintenance across Australia.

Best For

• HVAC technicians
• Electricians
• Maintenance teams
• Refrigeration apprentices
• Competent DIY owners working on electrical systems

Compatibility

The Testo 750-1 is built for a wide range of electrical tasks, handling AC/DC voltage from 12V up to 690V. It's designed to meet CAT III 690 V and CAT IV 600 V safety standards, making it suitable for most domestic and light commercial electrical systems. If you're running a different model or system, check fittings and specs before ordering.

Features

• Patented all-around viewable LED voltage bar indication for clear readings from any angle.
• Measures AC/DC voltage from 12V to 690V, covering most common applications.
• Includes polarity detection for DC voltage measurements to ensure correct wiring.
• Integrated phase sequence test helps determine correct motor rotation for three-phase systems.
• Low input impedance helps prevent ghost voltages from providing false readings.
• Performs continuity testing for quick circuit checks.
• IP64 protection class ensures durability in dusty or damp working conditions.

Technical Specifications

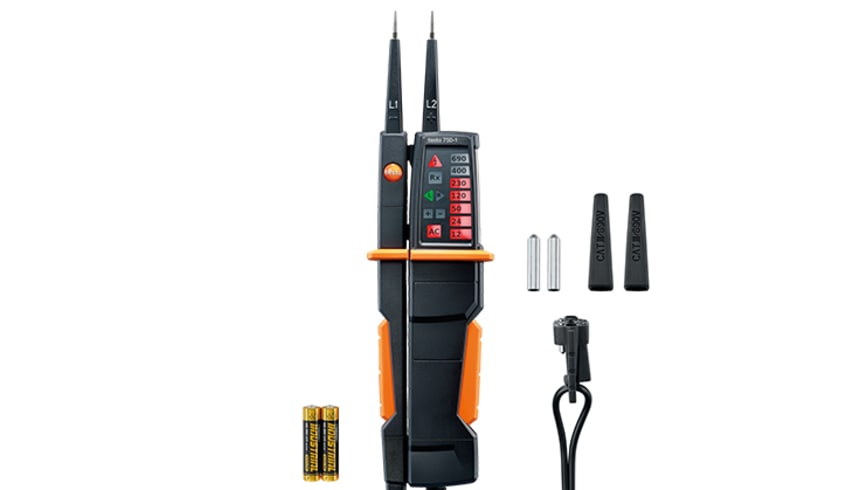

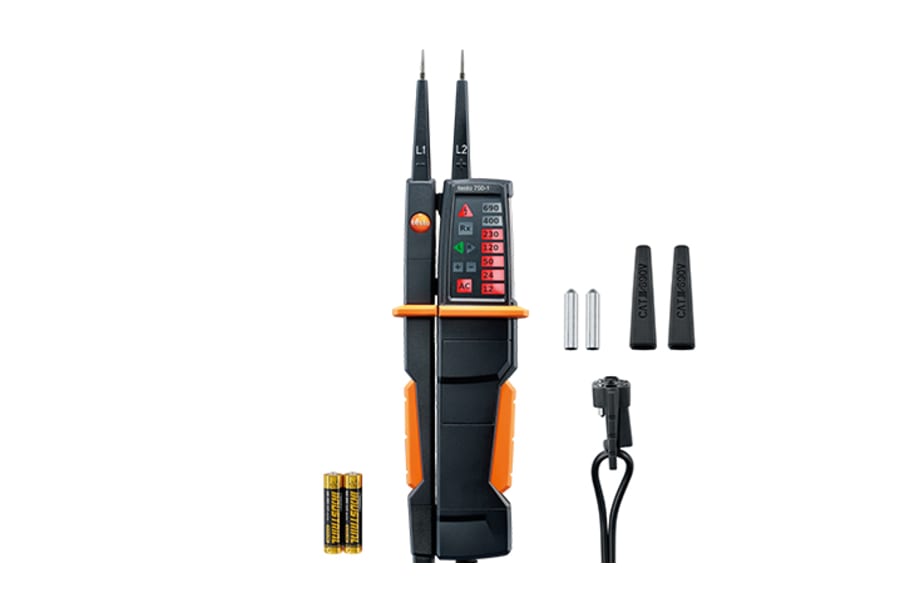

What's in the Box

• Testo 750-1 Digital Voltage Tester
• 2 x AAA Batteries
• Measuring tip protector
• Measuring tip caps

Using It on the Job

1. Always visually inspect the tester for any damage to leads or housing before use. Never use damaged electrical test equipment.
2. Verify the tester's function on a known live source before testing a de-energised circuit. This ensures the unit is working correctly.
3. Use the patented LED voltage bar for quick, clear readings, especially useful in varying light conditions or tight spaces.
4. Perform phase sequence tests before wiring up three-phase motors to ensure correct rotation and prevent damage.
5. After use, clean the tester as needed and store it in a protective case or bag to prevent damage and extend its lifespan.

Limitations & Safety Notes

• Always confirm power isolation and lockout procedures before commencing any work on electrical systems.
• Not for use beyond the specified CAT IV 600V / CAT III 690V ratings. Adhere strictly to these limits.
• Ensure a valid test on a known live source is conducted both before and after testing a circuit.
• Always follow Australian electrical safety standards and Safe Work guidance when working with electrical equipment.

When you're trying to read voltage on a high-mounted outdoor unit in the harsh Australian sun, that all-around LED display on the Testo 750-1 makes a huge difference. No more squinting or trying to shade the display with your hand. It just works.

Pair With

Pair with a good quality multimeter and a set of insulated hand tools for a complete electrical service kit. Don't forget an impact-resistant transport case to keep your gear safe and organised in the van.
