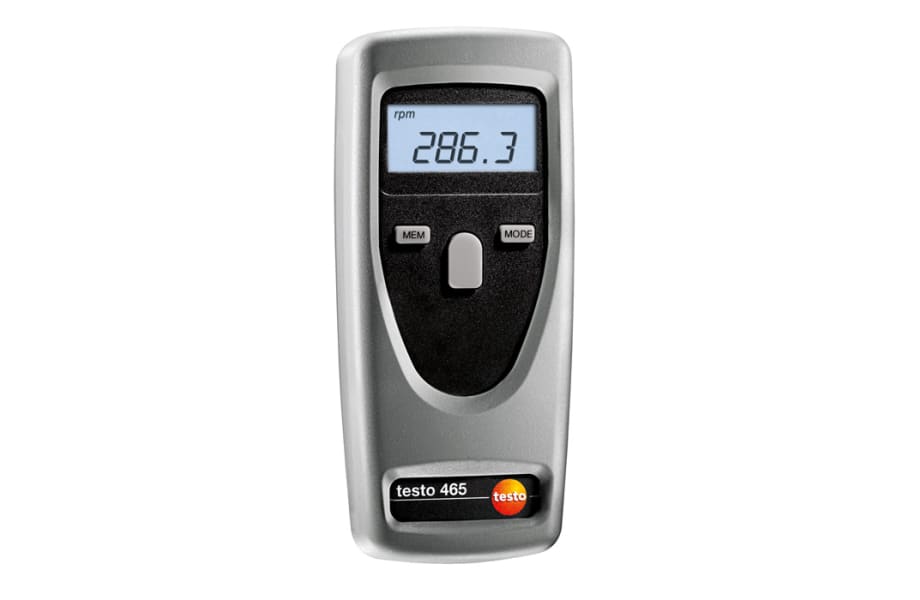

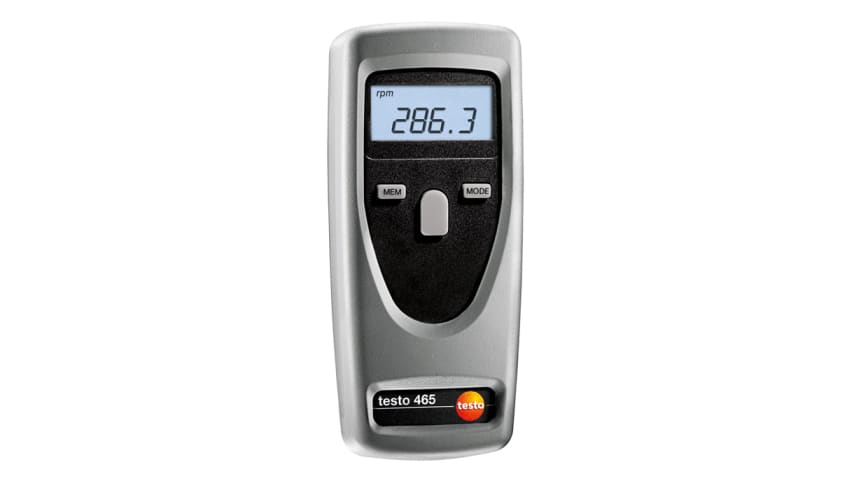

Testo 465 Tachometer

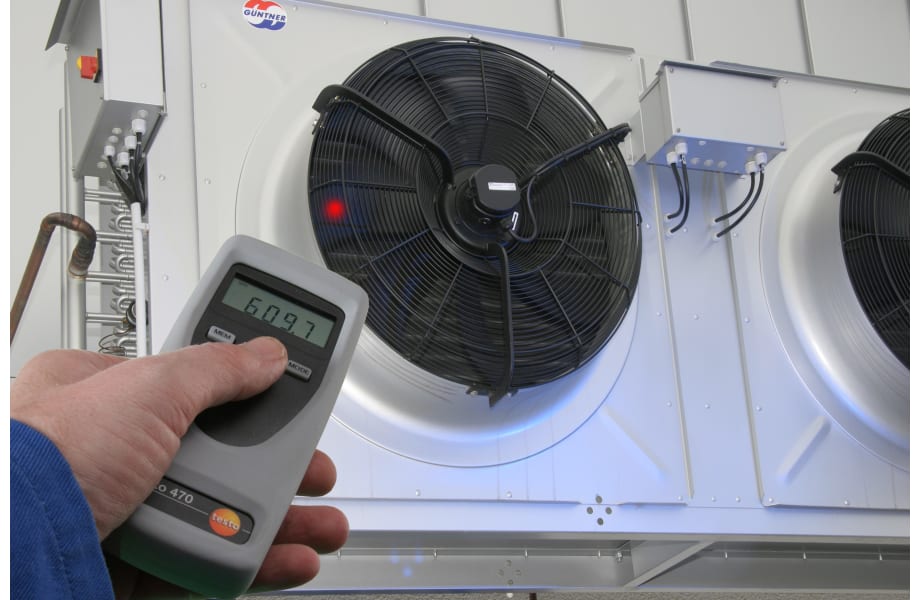

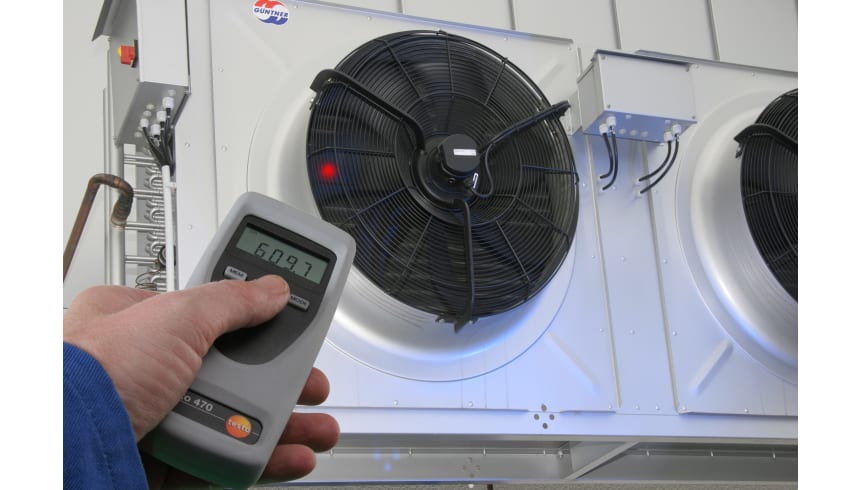

The Testo 465 Tachometer is a handy tool for HVAC techs needing quick, non-contact RPM measurements on rotating parts like fans and shafts, making fault diagnosis faster. Whether you're checking a condenser fan motor in the middle of summer or a ventilation fan in a dusty plant room, this unit gives reliable readings.

I've used these to check blower motor speeds without having to pull the whole assembly apart, saving a heap of time on site.

Best For

• HVAC service and maintenance teams
• Industrial ventilation system checks
• Motor and pump technicians
• General machinery diagnostics

Compatibility

This optical tachometer works with any rotating component where you can apply a reflective marker and maintain line-of-sight for the laser beam. It’s designed for non-contact measurement at distances up to 600 mm. If you're running a different model, check fittings and specs before ordering.

Features

• Non-contact, one-handed operation: Easy to use even in tight spots.
• Visible red beam: Pinpoint accuracy for aiming at reflective markers.
• Data storage: Saves mean, max, min, and the last measured value for easy review.
• Robust design: Supplied with a SoftCase protective case for durability on the job.
• Long measuring distance: Accurately reads RPM up to 600 mm away.
• Includes reflective markers: Ready to go right out of the box.

Technical Specifications

What's in the Box

• Testo 465 tachometer
• Plastic transport case
• SoftCase protective case
• Reflective markers
• Test protocol
• Batteries

Using It on the Job

1. Ensure the target surface on the rotating part is clean and dry where the marker will be applied.
2. Attach one of the self-adhesive reflective markers to the rotating component.
3. Power on the Testo 465 and aim the visible red beam directly at the reflective marker.
4. Hold the tachometer steady and allow it to display the stable RPM reading.
5. Use the save function to log minimum, maximum, mean, or the last measured value for later analysis or reporting.
6. After use, wipe down the unit to remove any dust or grime and store it in its SoftCase and transport case to protect it.

Limitations & Safety Notes

• Requires a reflective marker to be applied to the rotating object for accurate readings.
• Not suitable for obscured or hard-to-access rotating parts where a marker cannot be attached or seen.
• Always ensure safe access to machinery before applying markers or taking measurements.
• Do not stare directly into the red measurement beam.
• Follow Australian standards and Safe Work guidance for all machinery interaction.

Tradie Pro Tip

Keep a few spare reflective markers in your kit bag. They can peel off over time in dusty environments or if the surface isn't prepped right, and you don't want to get caught short on a job.

Pair With

Pair with vibration meters or amperage clamps for a full diagnostic picture of motors and fans. Also handy to have extra reflective markers on hand for continuous use from the HVAC Shop.
