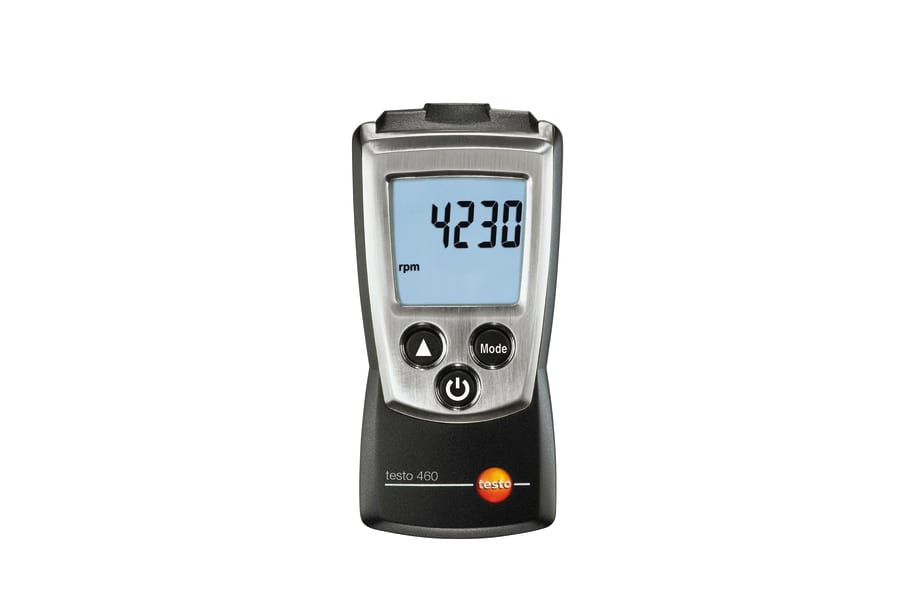

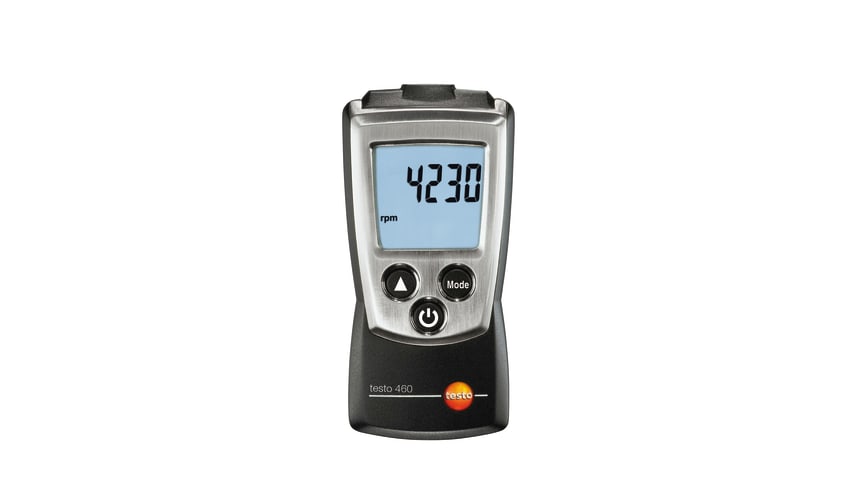

Testo 460 Optical Tachometer

The Testo 460 optical tachometer is a reliable tool for quick, non-contact RPM measurements on rotating machinery. For techs needing to check fan speeds in a rooftop unit or motor RPM on a plant room pump, this unit delivers accurate readings without stopping the gear. It’s a handy bit of kit for the service bag, especially when you need to diagnose issues on live equipment.

This compact meter uses self-adhesive reflective markers and an LED measuring spot, letting you quickly verify rotational speeds from a safe distance. No need to pull apart a system or guess if the motor is spinning right; just aim, read, and move on to the next job.

Best For

• HVAC fan and motor RPM checks
• Industrial machinery maintenance
• Automotive diagnostics (crankshafts, pumps)
• Preventative maintenance inspections

Compatibility

The Testo 460 is suitable for non-contact optical RPM measurement on a wide range of rotating objects, including fans, electric motors, and crankshafts. Its operation relies on attaching reflective markers to the rotating surface for the LED sensor to detect. If you're running a different model or need specific contact measurement, check alternative tools before ordering.

Features

• Optical RPM Measurement: Delivers quick and precise non-contact speed readings.
• LED Measuring Spot Marking: Clearly marks the centre of your measurement area for accurate alignment.
• Backlit Display: Ensures easy readability of results in dimly lit plant rooms or bright outdoor conditions.
• Hold Function: Freezes the last reading on the display for convenient recording.
• Min/Max Values: Quickly access the lowest and highest recorded RPM at the touch of a button.
• Compact and Lightweight Design: Easy to carry and handle for extended use on the job site.

Technical Specifications

What's in the Box

• Testo 460 tachometer
• Self-adhesive reflective markers
• Protective cap
• Test protocol
• Belt bag
• Batteries

Using It on the Job

1. Preparation: Secure the hand strap around your wrist to prevent accidental drops. Ensure the optical sensor is clean for accurate readings.
2. Apply Markers: Attach a self-adhesive reflective marker to the rotating object where you intend to measure RPM.

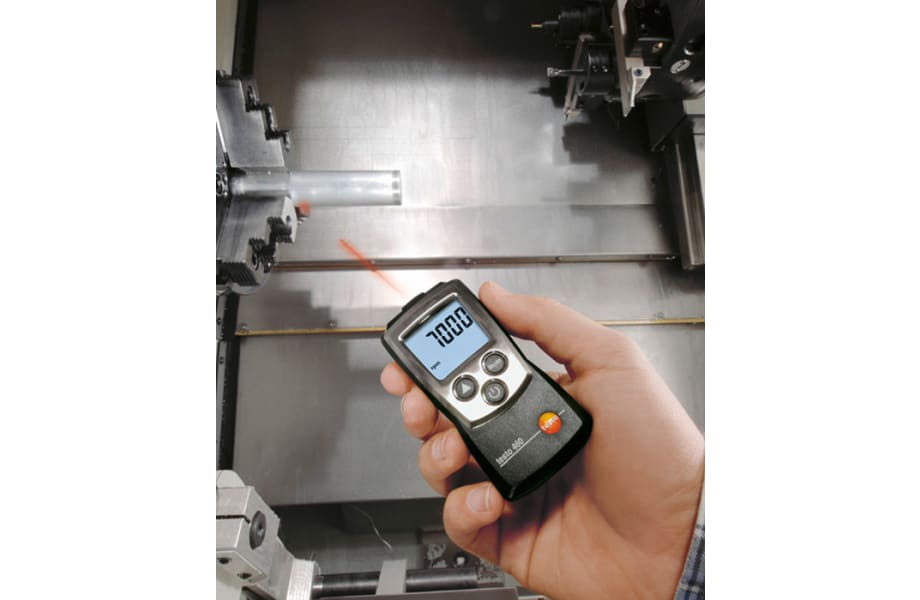

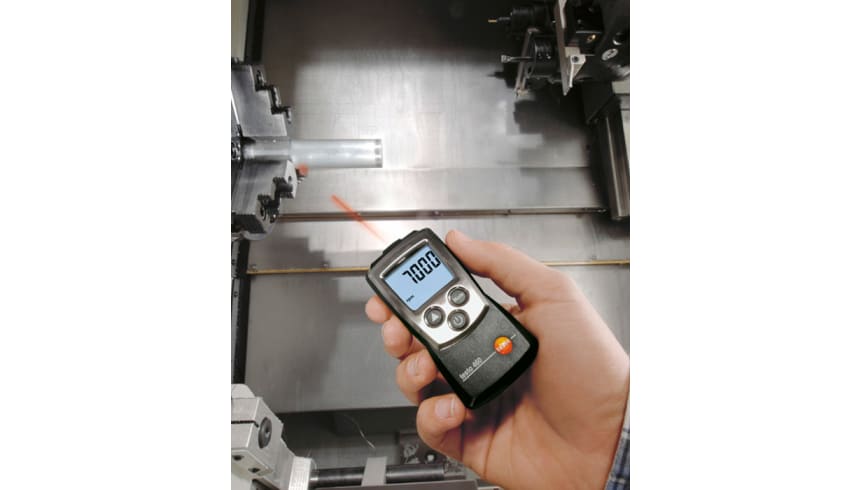

3. Align Measurement Spot: Point the Testo 460 at the marker. The integrated LED will project a spot, helping you align the sensor precisely with the reflective area.
4. Take Reading: Once aligned, the tachometer will display the RPM. Use the hold function to freeze the reading if needed for logging.
5. Check Min/Max: Press the Min/Max button to view the lowest and highest RPM recorded during the measurement period.
6. Storage: Replace the protective cap and store the meter safely in its belt bag when finished.

Limitations & Safety Notes

• This tool is for non-contact optical measurement only; it is not designed for physical contact with rotating parts.
• Always maintain a safe distance from moving machinery.
• The accuracy of optical measurement relies on clear line of sight to the reflective marker.
• Follow all Australian workplace safety standards and equipment lockout/tagout procedures when working around machinery.
• If working at heights, always secure the device with the provided hand strap.

Tradie Pro Tip

When dealing with very dark or irregular surfaces that don't take a sticker well, a quick dab of white correction fluid on the rotating part can work as a makeshift reflective marker in a pinch. Just make sure it dries quickly!

Pair With

Pair your Testo 460 with a general-purpose multimeter and a sound level meter for a comprehensive diagnostic kit when assessing machinery performance. Consider extra reflective markers for continuous use across multiple assets.
