Description

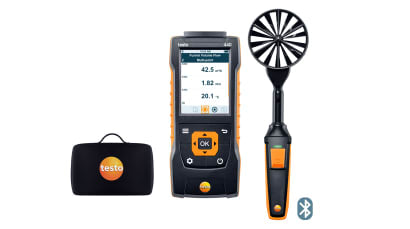

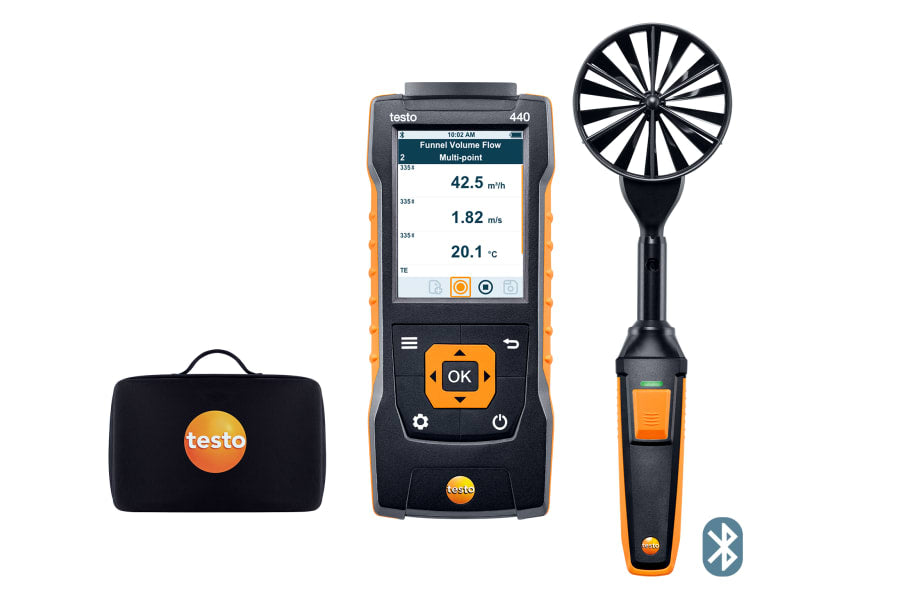

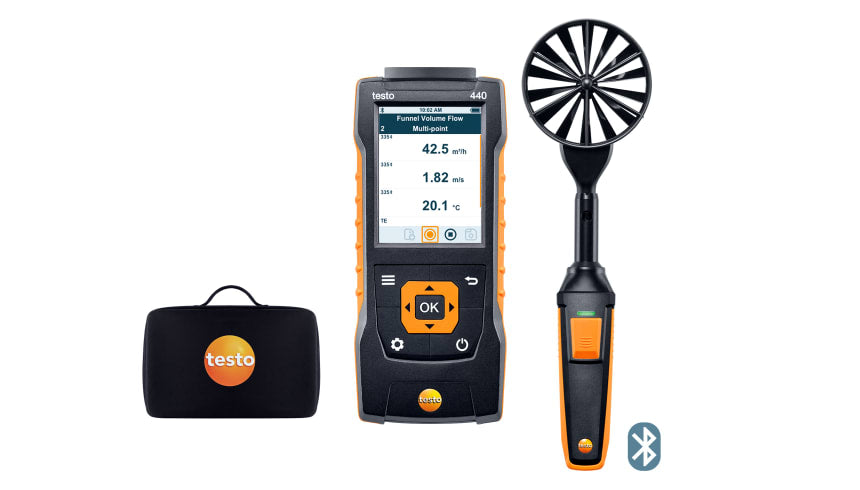

The Testo 440 Vane Kit with Bluetooth (Ø 3.9") is a comprehensive solution for HVAC professionals performing measurements at air outlets and within ventilation systems. This kit combines the versatile Testo 440 air velocity and IAQ measuring instrument with a high-precision 100 mm vane probe, complete with an integrated temperature sensor.
Designed for efficiency and accuracy, the kit ensures all components are safely stored in a durable case, making it ideal for on-site applications. It provides intuitive, clearly structured measurement menus for volume flow and parallel determination of air velocity, humidity, and temperature.
Why It Matters
Accurate air velocity and IAQ measurements are critical for optimising HVAC system performance, ensuring occupant comfort, and maintaining energy efficiency. This kit simplifies complex tasks with its intuitive operation and wireless capabilities, enabling tradies to quickly diagnose and verify system parameters without hassle.
What's Included
- Testo 440 Air Velocity and IAQ Measuring Instrument (0560 4401)
- 3 x AA Batteries for instrument
- USB Cable
- Calibration Protocol for instrument
- Vane Probe (Ø 3.9") with Bluetooth, including temperature sensor (0635 9431)
- Vane probe head (Ø 3.9")
- Handle adapter
- Bluetooth handle
- Bracket for testovent measurement funnel
- 4 x AA Batteries for probe
- Calibration Protocol for probe
- Basic Case for Testo 440 and 1 probe
Features & Benefits
- ✓ Comprehensive Measurement: Simultaneously determines air velocity, volume flow, humidity, and temperature.
- ✓ Intuitive Operation: Clearly structured measurement menus simplify setup and data acquisition for volume flow.
- ✓ Wireless Convenience: Bluetooth probes allow for flexible measurements without restrictive cables.
- ✓ Expandable System: Compatible with a wide range of additional probes for diverse HVAC applications.
- ✓ Data Export: USB interface enables easy export of measurement reports as CSV files for analysis and documentation.
- ✓ Precision Vane Probe: 3.9" (100 mm) vane probe with temperature sensor for accurate readings at air outlets.
Applications
- ✓ Measuring air velocity and volume flow at air outlets and ventilation grilles.
- ✓ Assessing Indoor Air Quality (IAQ) parameters like temperature and humidity.
- ✓ Commissioning and troubleshooting HVAC systems.
- ✓ Performing routine maintenance checks and performance verification.
Tradie Pro Tip: For precise volume flow measurements at ceiling or plate outlets, consider pairing this kit with Testo's optional telescope for ceiling outlets or funnel set. Proper accessory use ensures maximum accuracy in diverse scenarios.
Technical Specifications
| Parameter | Testo 440 Instrument | Vane Probe (Ø 100 mm) |
|---|---|---|
| Weight | 250 g (8.8 oz.) | 360 g (12.7 oz.) |
| Dimensions (L x W x H) | 154 x 65 x 32 mm (6.1 x 2.6 x 1.3 in.) | 375 x 105 x 46 mm (14.8 x 4.1 x 1.8 in.) |
| Operating Temperature | -20 to +50 °C (-4 to 122 °F) | -5 to +50 °C (23 to 122 °F) |
| Storage Temperature | -20 to +50 °C (-4 to 122 °F) | -20 to +60 °C (-4 to 140 °F) |
| Battery Type | 3 x AA 1.5 V | 4 x AA batteries |
| Battery Life | 12 h (typically vane measurement) | 60 h |
| Interface | Bluetooth®; USB | Bluetooth® |
| Radio Range | N/A | 20 m (65.616 ft.) |
| Probe Head Diameter | N/A | 100 mm (3.937 in.) |
| Temperature (NTC) Measuring Range | -40 to +150 °C (-40 to 302 °F) | -20 to +70 °C (-4 to 158 °F) |
| Temperature (NTC) Accuracy | ±0.3 °C (-25 to +74.9 °C) / ±0.5 °F (-13 to 166.8 °F) and others | ±0.5 °C (±0.9 °F) |
| Velocity Measuring Range | N/A | 0.3 to 35 m/s (59.1 to 6890 fpm) |
| Velocity Accuracy | N/A | ±(0.04 m/s + 5 % of mv) (0.3 to 35 m/s) |
Pair With
Enhance your measurement capabilities with these related HVAC Shop products:
- CO2 Probes
- Humidity Probes
- Testo 440 Air Flow ComboKit 2
Invest in the Testo 440 Vane Kit for reliable and efficient air velocity and IAQ measurements. This kit is your go-to solution for maintaining optimal indoor environments and HVAC system performance. Order yours today!
