Description
Overview
The Testo 440 Air Flow ComboKit 2 with Bluetooth is designed for comprehensive air velocity and IAQ measurements in various HVAC applications. This versatile kit ensures precise data collection in ventilation ducts and at air outlets, making it an essential tool for HVAC professionals.
It combines the Testo 440 measuring instrument with both 100mm Bluetooth and 16mm wired vane probes. All components are safely stored in a durable combi-case, providing convenience and protection for on-site work.
Why It Matters
Accurate air flow and IAQ measurements are crucial for maintaining efficient and healthy indoor environments. This kit helps technicians diagnose ventilation issues, verify system performance, and ensure compliance with comfort standards, ultimately enhancing occupant well-being and energy efficiency.

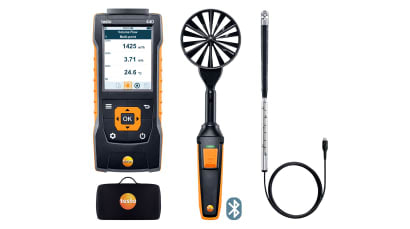

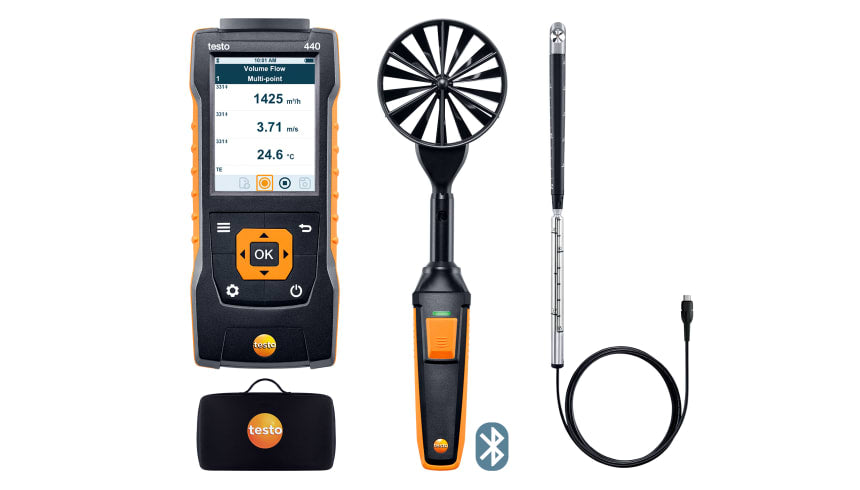

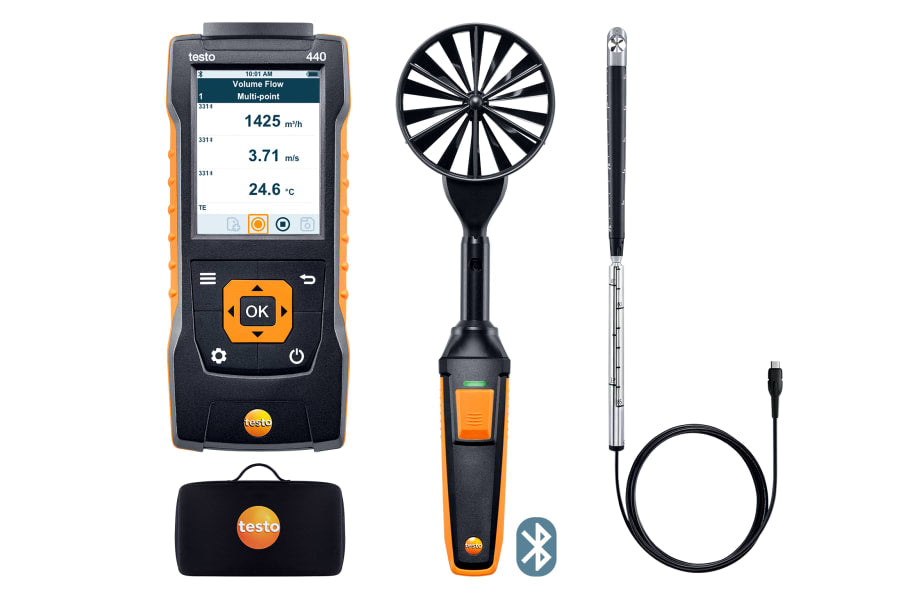

What's Included
- Testo 440 air velocity and IAQ measuring instrument (0560 4401)
- Vane probe (Ø 3.9") with Bluetooth, including temperature sensor (0635 9431)
- Vane probe (Ø 0.63") with fixed cable and telescope (0635 9532)
- Combi-case for Testo 440 and multiple probes (0516 4401)
- 3 AA batteries, USB cable, and calibration protocols
Features & Benefits
- All-in-one Measurement: Intuitive menus for volume flow, air velocity, humidity, and temperature.
- Flexible Probes: Includes both 100mm Bluetooth vane for larger outlets and 16mm wired vane with telescope for ducts.
- Wireless Convenience: Bluetooth connectivity for hassle-free measurements and reduced cable clutter.
- Data Management: USB interface allows easy export of measurement reports as CSV files for analysis and documentation.
- Extendable System: Compatible with a wide range of additional probes for future versatility.
Applications
- Measuring air velocity and volume flow in ventilation ducts.
- Assessing air flow and temperature at ventilation outlets (grilles and diffusers).
- Conducting indoor air quality (IAQ) spot checks.
- Verifying HVAC system performance and balancing.
Tradie Pro Tip
"Always ensure your vane probes are properly calibrated for precise readings. When measuring in ducts, take multiple readings across the duct cross-section and average them for a more accurate volume flow calculation. Use the telescope with the 16mm vane for hard-to-reach areas."
Technical Specifications
Testo 440 Air Velocity and IAQ Measuring Instrument (0560 4401)
| Parameter | Value |
|---|---|
| Temperature - NTC Measuring Range | -40° to 302 °F / -40 to +150 °C |
| Temperature - NTC Accuracy | ±0.5 % of mv (Remaining Range), ±0.7 °F (167° to 211.8 °F), ±0.5 °F (-13° to 166.8 °F), ±0.7 °F (-40° to -13.2 °F) |
| Temperature - NTC Resolution | 0.1 °F / 0.1 °C |
| Temperature - Type K TC Measuring Range | -328.0° to 2498.0 °F / -200 to +1370 °C |
| Temperature - Type K TC Accuracy | ±(0.5 °F + 0.3 % of mv) / ±(0.3 °C + 0.3 % of mv) |
| Temperature - Type K TC Resolution | 0.1 °F / 0.1 °C |
| Weight | 8.8 oz. / 250 g |
| Dimensions | 6.1 x 2.6 x 1.3 in. / 154 x 65 x 32 mm |
| Operating Temperature | -4.0° to 122.0 °F / -20 to +50 °C |
| Battery Type | 3 x AA 1.5 V |
| Battery Life | 12 h (typically vane measurement) |
| Interface | Bluetooth®; USB |
| Storage Temperature | -4.0° to 122.0 °F / -20 to +50 °C |
Vane Probe (Ø 100 mm, digital) - with Bluetooth® (0635 9431)
| Parameter | Value |
|---|---|
| Storage Temperature | -4° to 140 °F / -20 to +60 °C |
| Weight | 12.7 oz. / 360 g |
| Dimensions | 14.8 x 4.1 x 1.8 in. / 375 x 105 x 46 mm |
| Operating Temperature | 23° to 122 °F / -5 to +50 °C |
| Probe Head Diameter | 3.937 in. / 100 mm |
| Battery Type | 4 x AA batteries |
| Battery Life | 60 h |
| Data Transfer | Bluetooth® |
| Radio Range | 65.616 ft. / 20 m |
| Temperature - NTC Measuring Range | -4° to 158 °F / -20 to +70 °C |
| Temperature - NTC Accuracy | ±0.9 °F / ±0.5 °C |
| Temperature - NTC Resolution | 0.1 °F / 0.1 °C |
| Velocity / Volume Flow Measuring Range | 59.1 to 6890 fpm / 0.3 to 35 m/s |
| Velocity / Volume Flow Accuracy | ±(0.04 m/s + 5 % of mv) (0.3 to 35 m/s) / ±(7 fpm + 5% of mv) (59 to 6890 fpm) |
| Velocity / Volume Flow Resolution | 1 fpm / 0.01 m/s |
Vane Probe (Ø 16 mm, digital) - wired (0635 9532)
| Parameter | Value |
|---|---|
| Velocity / Volume Flow Measuring Range | 118.1 to 9843 fpm / 0.6 to 50 m/s |
| Velocity / Volume Flow Accuracy | ±(39.4 fpm + 1 % of mv) (118.1 to 7874 fpm) / ±(0.2 m/s + 1 % of mv) (0.6 to 40 m/s) |
| Velocity / Volume Flow Resolution | 19.7 fpm / 0.1 m/s |
| Storage Temperature | 14° to 158 °F / -10 to +70 °C |
| Weight | 5.3 oz. |
| Dimensions | 13.0 x 0.6 x 0.6 in. / 330 x 16 x 16 mm |
| Operating Temperature | 14° to 158 °F / -10 to +70 °C |
| Cable Length | 5.577 ft. / 1.7 m |
| Length Telescope | 33.465 in. / 850 mm |
| Probe Head Diameter | 0.63 in. / 16 mm |
| Diameter Telescope | 0.472 in. / 12 mm |
Combi-case for Testo 440 and Multiple Probes (0516 4401)
| Parameter | Value |
|---|---|
| Weight | 49.4 oz. / 1400 g |
| Dimensions | 20.3 x 5.3 x 10.1 in. / 516 x 135 x 256 mm |
Pair With
Pair with Testo Smart Probes for extended measurement capabilities. Consider adding CO₂ probes or Humidity probes for comprehensive IAQ analysis. Explore our range of Data Logger Accessories for enhanced reporting.
Optimise Your HVAC Diagnostics
Elevate your HVAC diagnostics with the Testo 440 Air Flow ComboKit 2. Invest in precision, versatility, and efficiency for every job. Contact HVAC Shop today for expert advice and to place your order!
