Testo 417 Kit 2 Vane Anemometer

This Testo 417 Kit 2 vane anemometer is your go-to for checking air flow, volume flow, and temperature on air conditioning and ventilation systems. It’s built tough for Aussie conditions, helping you dial in balanced residential ventilation efficiently.

We've all seen dodgy installs where air balancing is an afterthought; this kit helps you get it right from the start, making sure that balanced system performs as it should, particularly with those tricky swirl outlets.

Best For

• HVAC technicians and installers
• Residential ventilation specialists
• Building maintenance teams
• Air balancing professionals

Compatibility

Designed for use on air inlets and outlets, including plate and swirl outlets found in residential and commercial air conditioning and ventilation systems. The included measurement funnels and flow straightener make it suitable for various grille types and ensure accurate volume flow readings.

If you're running a different model or system, check fittings and specs before ordering.

Features

• Integrated 100 mm vane for quick, accurate air velocity measurements.
• Automatic calculation of time and point average values and volume flow directly on the instrument.
• Testo Smart App connectivity for configuration, second display, data storage, and documentation on your smartphone.

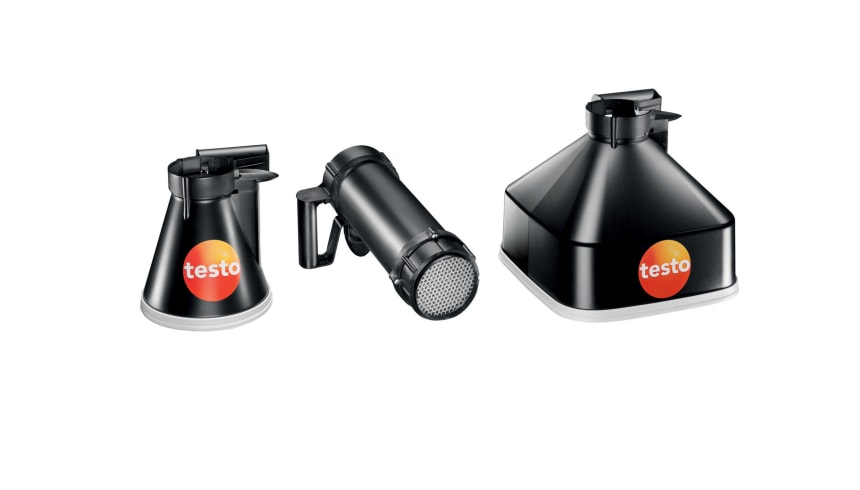

• Includes two dedicated measurement funnels (for plate outlets and ventilation grilles) and a flow straightener for accurate results, even at swirl outlets.
• Measures temperature via NTC sensor alongside flow parameters for comprehensive readings.
• Robust ABS + PC / TPE housing designed for the realities of trade use.

Technical Specifications

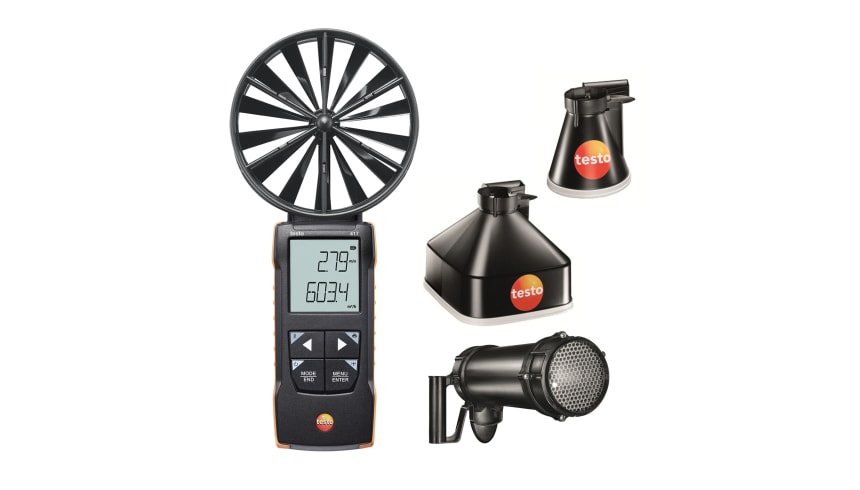

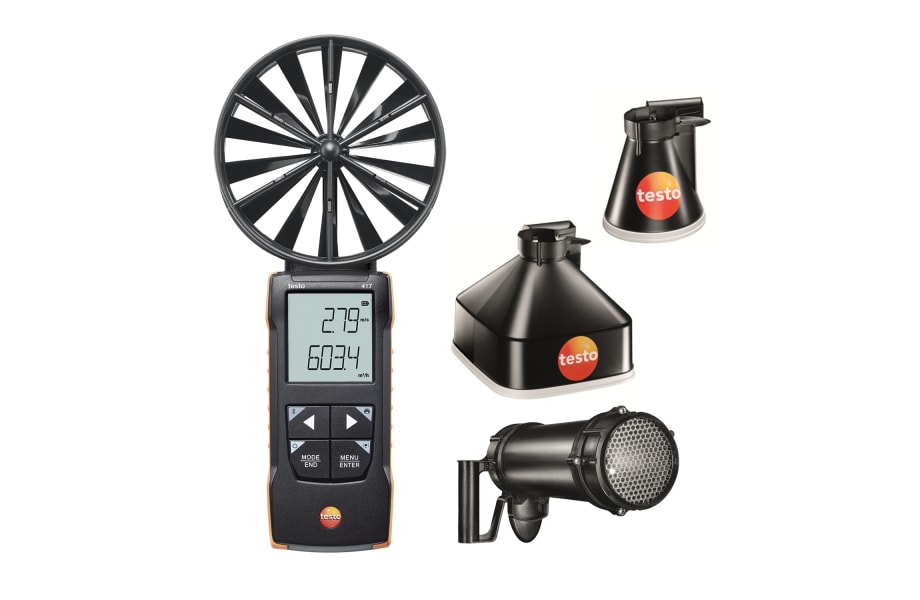

What's in the Box

• testo 417 Digital 100 mm vane anemometer
• Measuring funnel for plate outlets
• Measuring funnel for ventilation grilles
• Flow straightener
• Transport bag
• Test protocol
• 3 x AA batteries

Using It on the Job

1. Insert the 3x AA batteries and power on the testo 417. Connect to the testo Smart App on your smartphone for enhanced display and data logging.

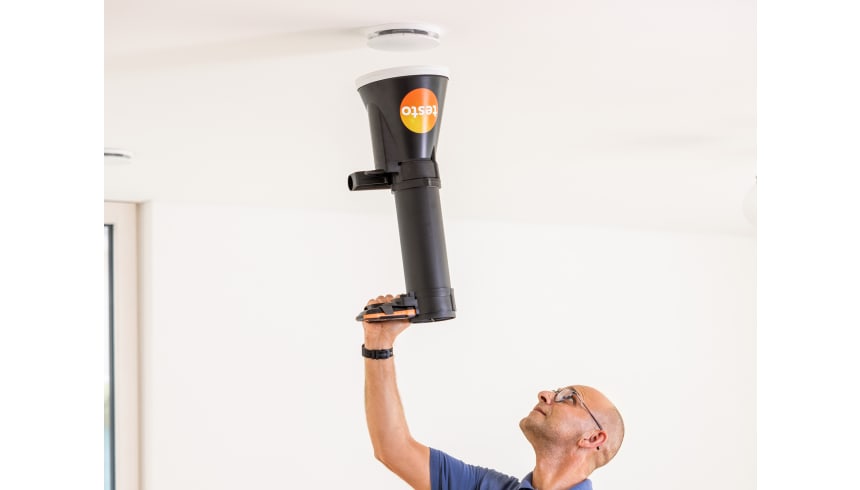

2. Attach the appropriate measurement funnel (plate outlet or grille) or the flow straightener, especially for swirl outlets, to ensure accurate volume flow readings.
3. Position the vane securely at the air inlet or outlet you're testing, ensuring full coverage to capture the entire flow.
4. Take your readings. The instrument calculates time and point averages, as well as volume flow, automatically. Use the App for real-time monitoring and saving data.
5. Document your findings via the testo Smart App for quick reporting and compliance checks for residential ventilation systems.

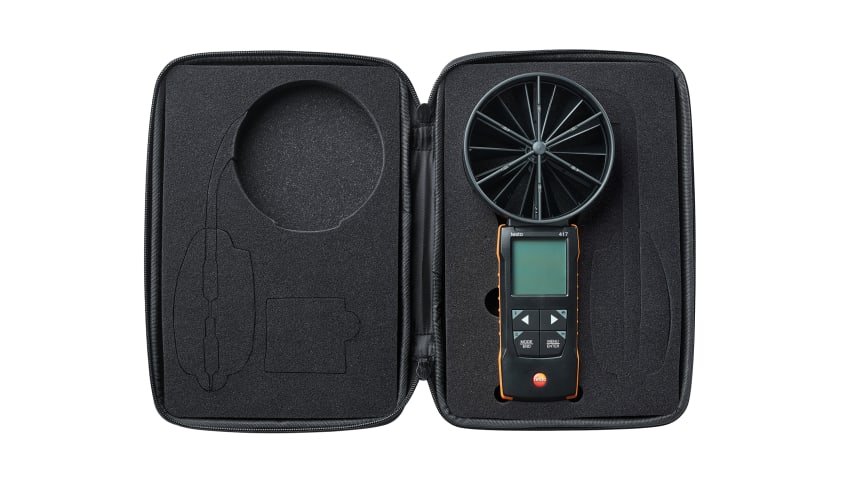

6. After use, store the anemometer and accessories in the transport bag to protect them from dust and knocks on site.

Limitations & Safety Notes

• This instrument is designed for air velocity and volume flow measurement; do not use it for measuring liquid flow or extreme gas pressures.
• Ensure the vane is clear of obstructions and debris before and during operation to prevent damage and maintain accuracy.
• Handle the funnels and straightener carefully to avoid distortion, which can affect measurement precision.
• Follow manufacturer guidelines for battery replacement and disposal.
• The device has an IP10 protection class, meaning it's not protected against dripping water or dust ingress beyond very basic protection. Keep it dry and clean.

Tradie Pro Tip

When you're balancing a residential system, especially after an upgrade, always check both supply and return. Those funnels are a godsend for getting consistent readings off different grille types, saving you a heap of re-dos.

Pair With

Pair with a digital manifold gauge for refrigerant system checks or a duct cleaning kit to ensure your ventilation system is ready for optimal air flow and efficiency.
