Testo 300 Basic Kit Flue Gas Analyser

The Testo 300 Basic Kit flue gas analyser is your essential tool for checking heating systems, giving you accurate readings for O₂ and CO up to 4,000 ppm. It's built tough for daily work on Australian boiler rooms and plant rooms.

This kit packs a fast-response Smart-Touch display and intuitive menus, making your diagnostics quicker and helping you get the job done right the first time, even in dusty conditions.

Best For

• HVAC service and maintenance technicians
• Heating system installers and commissioning teams
• Boiler and hot water plant specialists
• Apprentices learning combustion analysis

Compatibility

This Testo 300 Basic Kit is designed for comprehensive flue gas analysis on heating systems. It comes equipped for O₂ and CO measurements up to 4,000 ppm, covering typical domestic and light commercial boilers and heaters. It also performs differential pressure, draught, and temperature measurements.

If you're running a different model or need to measure other parameters like ambient CO, check specific probes and accessories required before ordering.

Features

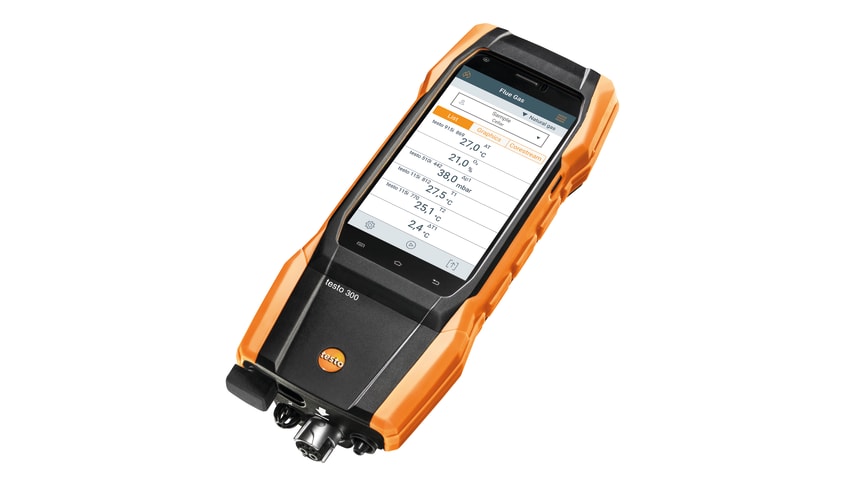

• Smart-Touch Display: Fast-response, intuitive operation similar to a smartphone for quick navigation through measurement menus.
• O₂ and CO Sensor: Integrated sensors for oxygen and carbon monoxide up to 4,000 ppm, essential for combustion efficiency and safety checks.

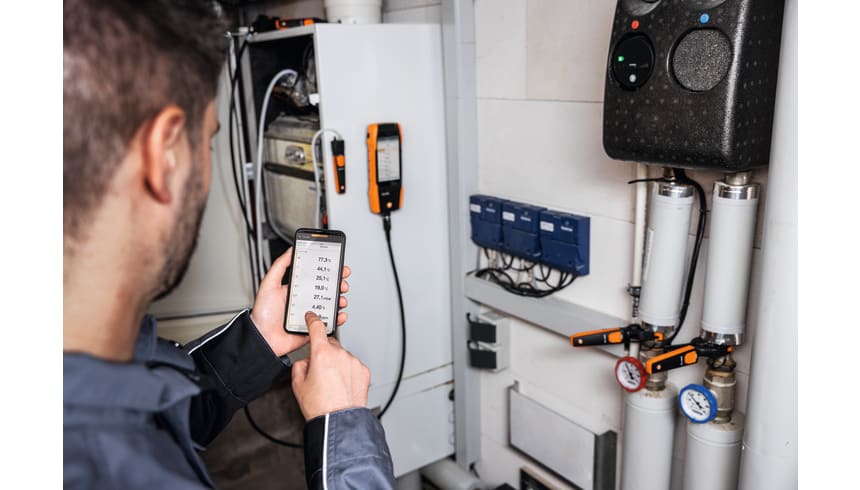

• Wireless Connectivity: Efficient, wireless parallel measurement with up to four Testo Smart Probes (sold separately) for expanded capabilities.
• Data Management: Practical second screen function and easy data integration into user-specific software like EasyHeat for report generation.
• Robust Basic Probe: Includes a 300 mm, Ø 6 mm basic flue gas probe, rated for temperatures up to 500 °C.
• TÜV-Tested: Certified according to 1st German Federal Immission Control Ordinance (BImSchV) EN 50379, Parts 1-3 for reliable performance.

Technical Specifications

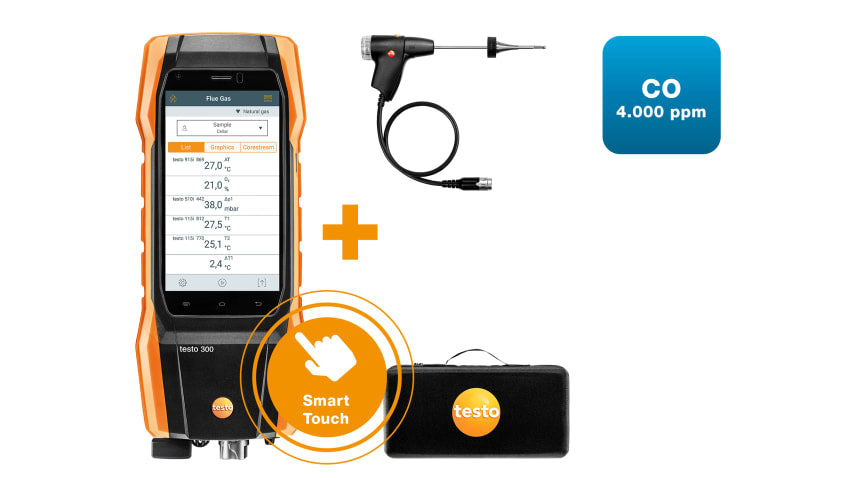

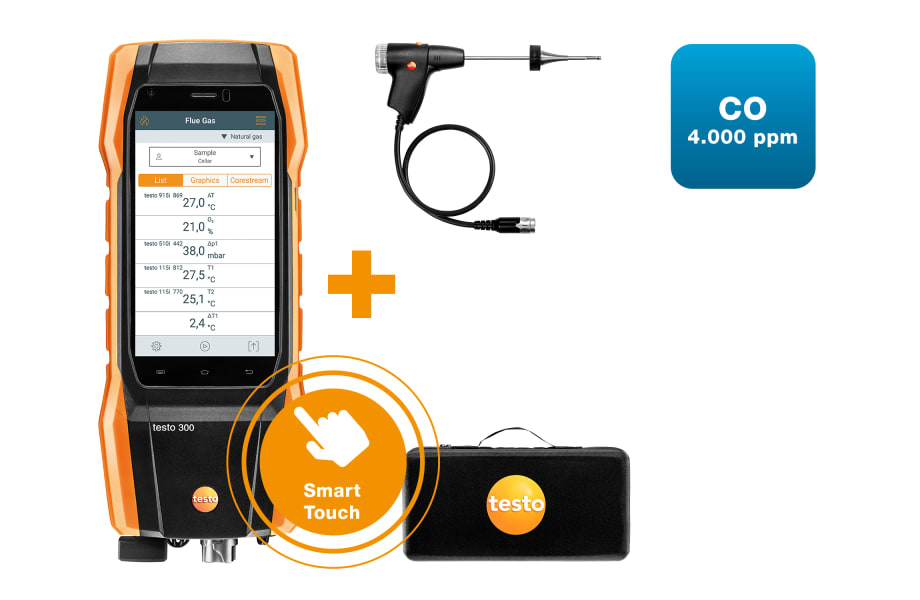

What's in the Box

• Testo 300 NEXT LEVEL flue gas analyser (O₂, CO up to 4,000 ppm)
• USB mains unit with cable (2 m cable)
• Compact basic flue gas probe (300 mm, Ø 6 mm)
• Spare dirt filters (10 off)
• EasyHeat software
• Instrument case (520 x 400 x 130 mm)

Using It on the Job

1. Pre-Check: Ensure the analyser battery is charged and sensors are calibrated. Check dirt filters for blockage.
2. Connect Probe: Insert the basic flue gas probe securely into the analyser's single probe coupling.
3. Position Probe: Place the probe tip in the flue gas stream at the recommended test point, typically in the centre of the flue pipe.
4. Select Measurement: Use the Smart-Touch display to select the appropriate measurement menu (e.g., flue gas analysis, draught, temperature).
5. Perform Analysis: Allow the analyser to stabilise and perform the measurement. Observe O₂, CO, and other relevant parameters on the display.
6. Document Results: Use the EasyHeat software to create and store reports on-site, or email them directly from the device.
7. Post-Use Care: Clean the probe and replace dirt filters as needed. Store all components in the instrument case to protect them from damage.

Limitations & Safety Notes

• Refrigerant work requires a current ARCtick licence in Australia. This tool is for combustion analysis, not refrigerant circuits.
• Ensure the flue gas probe temperature rating (500 °C max) is not exceeded to prevent damage.
• Always follow manufacturer's instructions for operation and maintenance to ensure accurate readings and extend tool life.
• For gas flow pressure, pipe tests, or ambient CO measurements, additional specific probes or accessories are required and not included in this kit.
• Adhere to Australian standards and Safe Work guidance when performing combustion analysis on heating systems.

Tradie Pro Tip

"Before you start a flue gas analysis, always make sure your dirt filter on the probe is clean. A blocked filter will mess with your draught readings and give you inaccurate results, making you scratch your head wondering what's wrong with the burner."

Pair With

For comprehensive diagnostics, consider pairing this kit with Testo Smart Probes for additional measurements, or a gas leak detector to ensure system integrity. Check out our range of combustion analysis accessories for expansion options.
