Can the vane probe's telescope be extended?

Yes, the vane probe includes a telescope extendable to 1 meter. It can optionally be extended further to a total length of 2 meters with a separately available telescope extension.

Testo 16mm Vane Probe Bluetooth Temperature Sensor 0635 9571

Name: Testo 16mm Vane Probe with Bluetooth and Temperature Sensor
Brand: Testo
SKU: 0635 9571
Price: 2849.65 AUD
Availability: InStock

🛠️ Need the Right HVAC Tool for the Job?

Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.

Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.

📩 Request a Quote

Overview

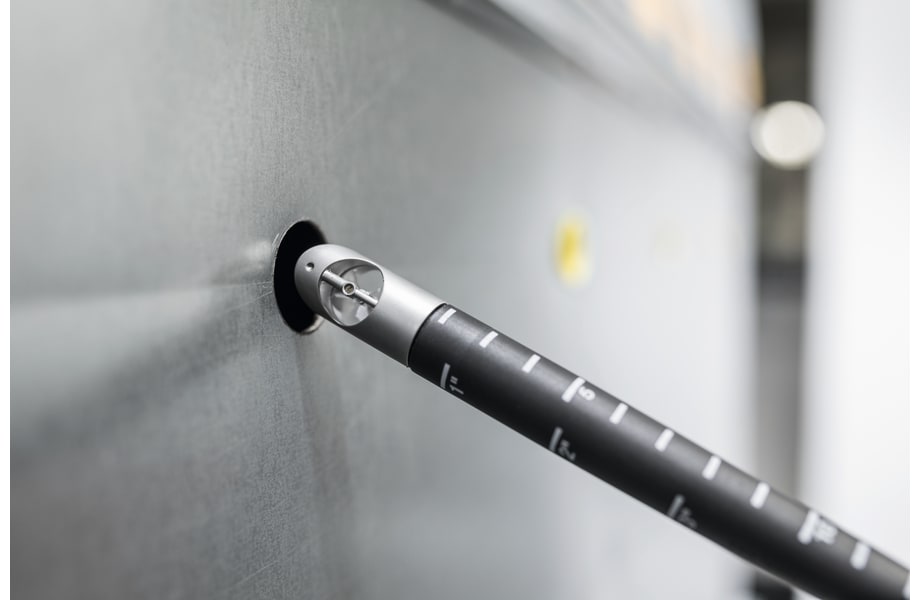

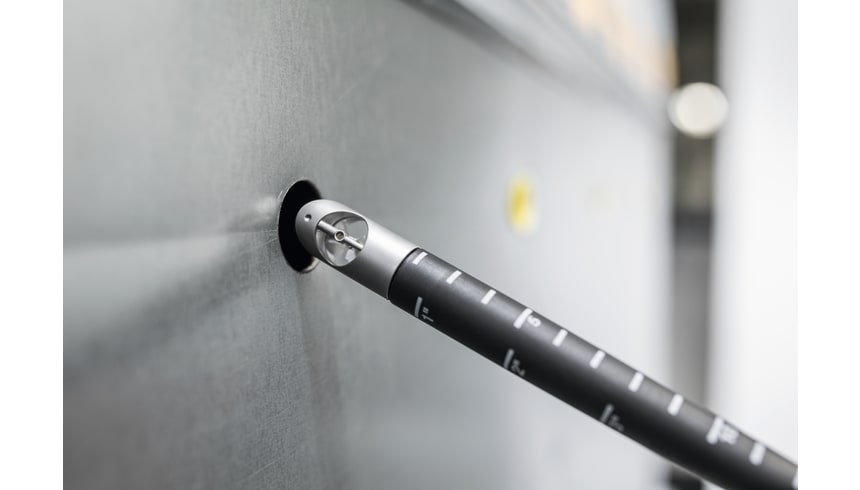

This Testo 16mm Vane Probe is an essential tool for HVAC professionals, designed for precise measurements in ventilation ducts. It accurately determines air velocity, volume flow, and air temperature, transmitting all readings directly to your compatible measuring instrument via Bluetooth for maximum convenience.

Its digital nature ensures reliable data, making complex airflow analysis straightforward and efficient for various HVAC applications.

Why It Matters

Accurate airflow measurement is crucial for optimizing HVAC system performance, ensuring energy efficiency, and maintaining occupant comfort. This vane probe simplifies the process, providing reliable data for commissioning, troubleshooting, and balancing ventilation systems without cumbersome cables.

What's Included

16 mm vane probe head
1 m long extendable telescope
Handle adapter and Bluetooth handle
4 x AA batteries
Calibration protocol

Features & Benefits

Wireless Convenience: Bluetooth® connectivity allows data transmission up to 20 meters, reducing cable clutter and enhancing mobility.
Accurate Measurements: Provides precise results for air velocity from +0.6 to +50 m/s and accurate air temperature.
Intuitive Operation: Features a clearly structured measurement menu for volume flow and a practical button on the handle for storing individual readings.
Extendable Telescope: Comes with a scaled telescope extendable to 1 meter, with optional extension to 2 meters for large duct access.
Intelligent Calibration: Only the probe head needs calibration, ensuring your main measuring instrument remains continuously available.
Versatile System: Part of Testo's universal handle system, allowing compatibility with various probe heads for diverse applications.

Applications

Measuring air velocity and air temperature in ventilation ducts.
Calculating volume flow in various duct cross-sections.
Performing measurements in hard-to-access areas and large ventilation systems (with optional telescope extension).
Commissioning, balancing, and troubleshooting HVAC systems.

Tradie Pro Tip

For efficient workflow, leverage Testo's intelligent calibration concept. By sending only the probe head for calibration, your main measuring instrument remains available, minimizing downtime on critical jobs and ensuring continuous productivity.

Technical Specifications

Temperature - NTC

Measuring range	-10 to +70 °C / 14° to 158 °F
Accuracy	±1.8 °C / ±3.2 °F
Resolution	0.1 °C / 0.1 °F

Velocity / Volume flow

Measuring range	0.6 to 50 m/s / 118.1 to 9843 fpm
Accuracy	±(0.2 m/s + 1 % of mv) (0.6 to +40 m/s) ±(0.2 m/s + 2 % of mv) (40.1 to 50 m/s)
Resolution	0.1 m/s / 19.7 fpm

General Technical Data

Storage temperature	-20 to +60 °C / -4° to 140 °F
Weight	425 g / 15.0 oz.
Dimensions	790 x 50 x 40 mm / 31.1 x 2.0 x 1.6 in.
Operating temperature	-5 to +50 °C / 23° to 122 °F
Length probe shaft	230 mm / 9.055 in.
Diameter probe shaft	16 mm / 0.63 in.
Length telescope	1,000 mm / 39.37 in.
Probe head diameter	16 mm / 0.63 in.
Product colour	black/orange
Battery type	4 x AA batteries
Battery life	70 h
Data transfer	Bluetooth®
Radio range	20 m / 65.616 ft.

Pair With

Pair with Testo 400 Air Flow Kit, Testo 440 Air Velocity and IAQ Measuring Instrument, or a Telescope Extension for Flow Probes to enhance your measurement capabilities.

Get Yours Today

Enhance your HVAC diagnostic capabilities with the Testo 16mm Vane Probe with Bluetooth. Order yours today to experience unparalleled precision and convenience in airflow measurement.

Common Questions for Testo 16mm Vane Probe with Bluetooth and Temperature Sensor

What does the Testo 16mm Vane Probe measure?

This vane probe measures air velocity, volume flow, and air temperature, providing comprehensive data for ventilation system analysis.

What is the range of the Bluetooth connection?

The readings from the vane probe are transmitted to your measuring instrument via Bluetooth, up to a distance of 20 meters.

How does the intelligent calibration concept work?

With the intelligent calibration concept, only the probe head needs to be sent in for calibration, allowing your main measuring instrument to remain in continuous use.
