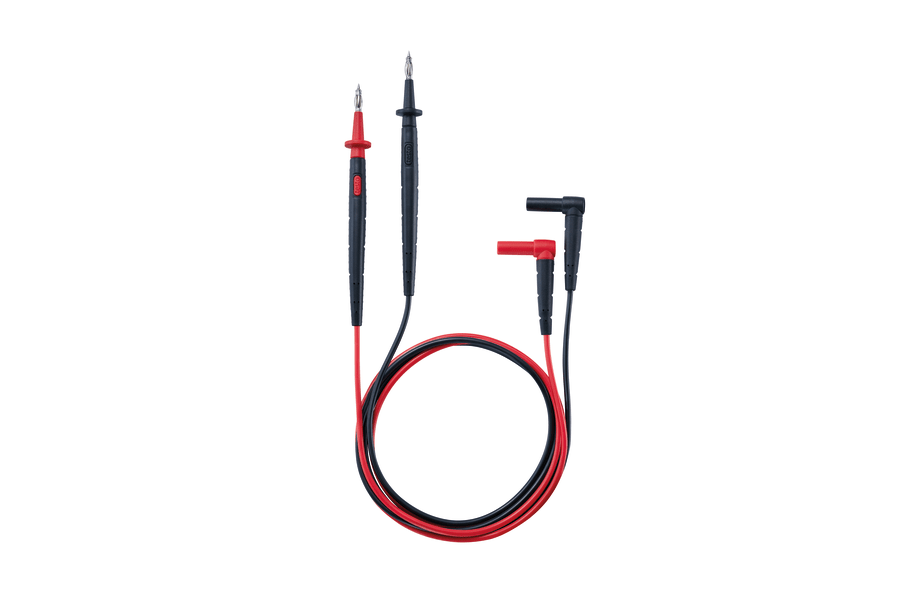

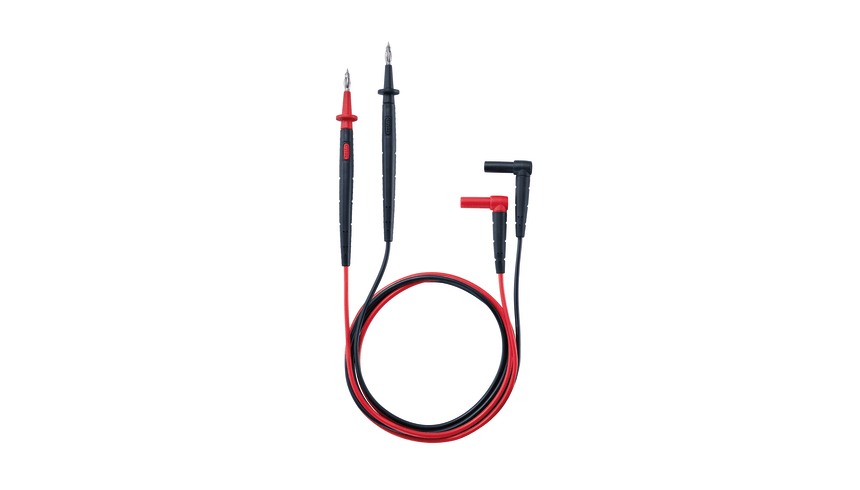

Standard Measuring Cables (Angled Plug)

These Testo standard measuring cables with angled plugs are designed for HVAC and electrical techs needing reliable connections for their multimeters and clamp meters. They provide a secure grip, making electrical parameter measurements simpler and safer on the job. Good leads are essential; trying to wrangle cheap, flimsy cables in a tight switchboard is a pain no one needs.

Whether you're checking control circuits, testing motor windings, or diagnosing power issues, these cables are built to handle daily use in Australian conditions.

Best For

• HVAC electricians and service technicians
• Refrigeration mechanics performing electrical diagnostics
• Apprentices learning electrical troubleshooting
• Competent DIY owners maintaining electrical components

Compatibility

These standard measuring cables are designed to connect seamlessly with Testo clamp meters and digital multimeters, including models like the Testo 760-1, 760-2, 760-3, and 770-1. Their universal 4 mm tip diameter also means they'll work with most other brands of multimeters on the market. If you're running a different model, check fittings and specs before ordering.

Features

• Angled Plug Design: Provides better strain relief and easier access in tight spots compared to straight plugs.
• Rubber-Coated Grips: Ensures a secure, non-slip hold, even with oily hands or in humid conditions.
• 4 mm Tip Diameter: Standard size (18 mm length) for broad compatibility with various electrical test points and terminals.
• CAT II 1000 V Rated: Suitable for measurements on general power circuits, appliances, and permanently installed equipment.
• Durable Construction: Built to withstand the rigours of daily trade use, resisting wear and tear.

Technical Specifications

What's in the Box

• 1 set of standard measuring cables (angled plug)
• Tip diameter: 4 mm
• Tip length: 18 mm

Using It on the Job

1. Safety First: Always ensure the circuit you're testing is de-energised and locked out if working on mains power. Confirm your multimeter's function and range settings are correct before connecting.
2. Connect to Meter: Insert the angled plugs firmly into the appropriate input jacks on your multimeter or clamp meter, observing correct polarity (usually black for common, red for voltage/resistance).
3. Secure Grips: Use the rubber-coated grips to maintain a firm hold while making contact with test points. The angled plug helps manage cable routing.
4. Measure Parameters: Carefully apply the 4 mm tips to the test points, ensuring good contact for accurate readings. Avoid touching bare metal parts of the tips during live measurements.
5. Post-Use Care: Disconnect leads from the meter and coil them neatly to prevent kinks or damage. Store them in a tool bag away from sharp objects.

Limitations & Safety Notes

• These cables are rated for CAT II 1000V. Do not use them for measurements exceeding this category or voltage level.
• Always inspect cables for cuts, cracks, or exposed wiring before each use. Damaged leads can pose a severe electrical hazard.
• Follow Australian standards and Safe Work guidance for all electrical testing procedures.
• Ensure a current calibration on your measuring instrument for accurate and reliable results.

Tradie Pro Tip: Don't just chuck your leads in the bottom of your toolbox. Coil them properly after each job – it'll save you headaches with tangled wires and extend their lifespan, especially with these angled plugs.

Pair With

Pair these Testo measuring cables with a reliable Testo digital multimeter or a Testo clamp meter from our extensive range of electrical testing tools. Consider adding a set of safety crocodile clips for hands-free testing where appropriate.
