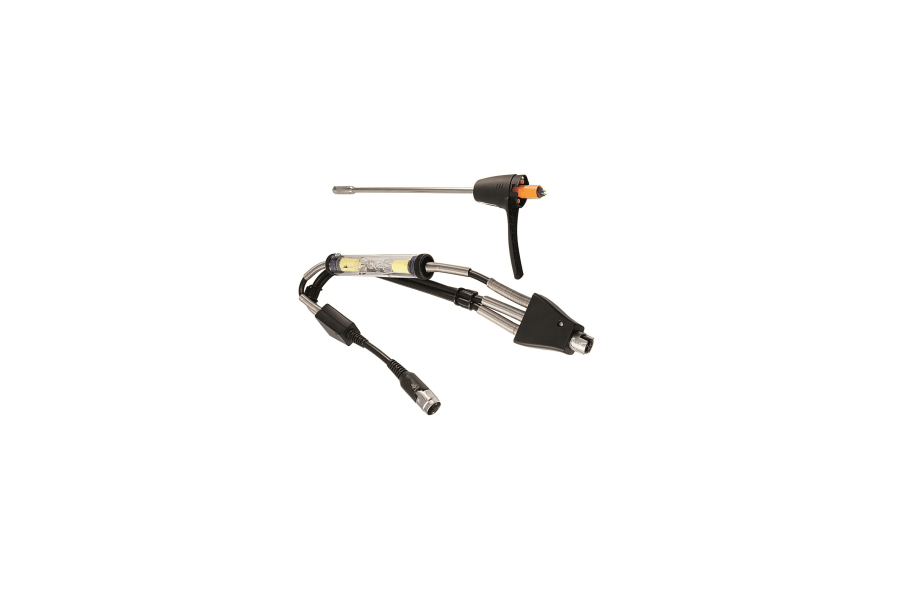

Solid Fuel Flue Gas Probe Kit

This Testo solid fuel kit, SKU 0600 9765, gives you the right gear for accurate flue gas measurements in solid fuel appliances. It's built for trades who need to check emissions from wood heaters, slow combustion stoves, and other solid fuel systems.

Anyone working on wood heaters or solid fuel boilers knows how important it is to get a clean sample without condensate messing up your readings. This kit helps you do just that, ensuring reliable data every time.

Best For

• HVAC technicians
• Plumbers
• Boiler service teams
• Energy auditors working on solid fuel systems

Compatibility

This kit is designed to work seamlessly with the Testo 300 range of flue gas analysers, including the 'Smart', 'Ultra-Smart', and 'Advanced' kits. If you're running a different model, check fittings and specs before ordering.

Features

• Modular probe shaft (290 mm length, 8 mm diameter) for fitting into tight spots.
• Integrated pre-filter on the probe to protect your analyser from soot and particulates.
• Gas sampling hose features an integrated condensate trap, keeping moisture out of your sensor.
• Rated for temperature measurements up to 300°C, suitable for most solid fuel applications.
• Includes a solid fuel adapter and cone for secure, accurate positioning in the flue.

Technical Specifications

What's in the Box

• 1 x modular probe shaft with pre-filter
• 1 x solid fuel adapter
• 1 x cone
• 1 x gas sampling hose with integrated condensate trap (750 mm length)

Using It on the Job

1. Ensure your Testo 300 flue gas analyser is calibrated and ready.
2. Connect the modular probe shaft and solid fuel adapter to your analyser's inlet.
3. Insert the probe into the flue, using the cone to seal the opening and get a stable sample point.
4. Allow the analyser to stabilise, then take your readings for O2, CO, and other parameters.
5. After use, carefully remove the probe and hose, and clean any soot or debris from the pre-filter.

Limitations & Safety Notes

• Always ensure the probe is securely fitted before taking measurements to avoid leaks or inaccurate readings.
• Do not exceed the maximum rated temperature of 300°C for the probe.
• Regularly check and clean the pre-filter to maintain probe integrity and prevent analyser damage.
• This kit is specific to solid fuel applications; ensure it's appropriate for your particular setup.

When you're pulling a sample from a solid fuel flue, give it a few minutes to stabilise after inserting the probe. Those readings can jump around a bit initially, and you want to be sure you're getting a true average.

Pair With

Pair with a Testo 300 Flue Gas Analyser and replacement filters for ongoing maintenance.
