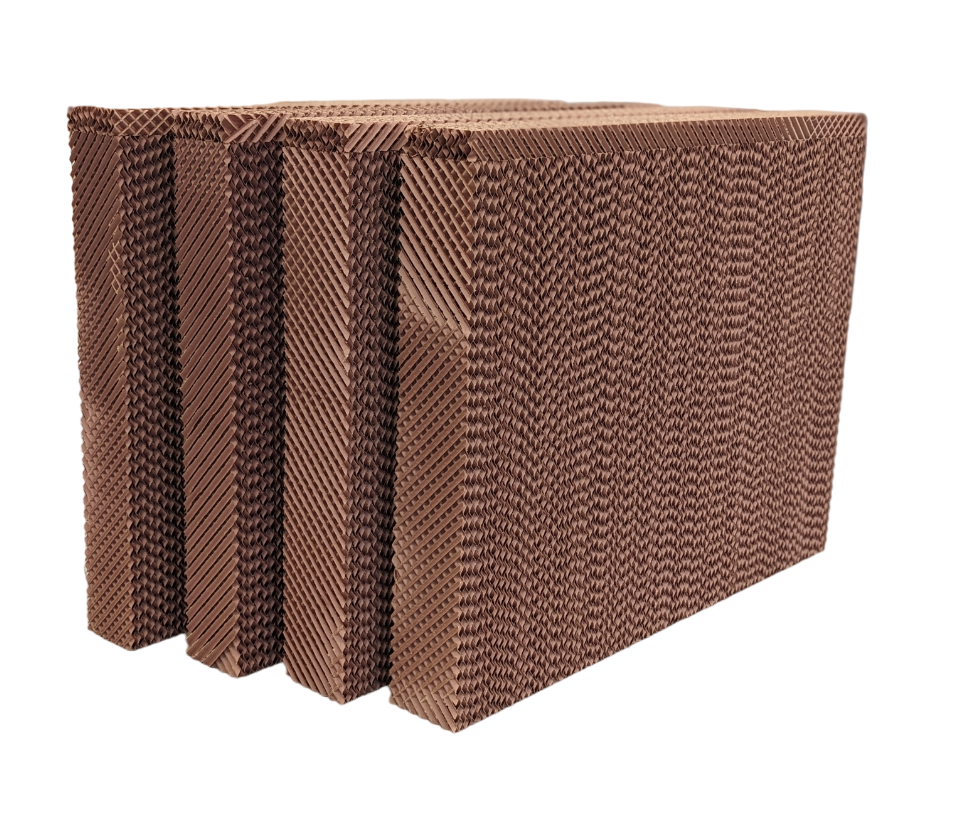

Seeley Large Breezair Series Evaporative Cooler Filter Pad

When the hot Australian summer hits, your evaporative cooler needs to be running at its best. This Seeley Large Breezair Series replacement filter pad (SY122595) is designed to keep your unit efficient, delivering clean, cool air.

As anyone who's pulled apart a dirty cooler knows, a fresh set of pads makes a huge difference to airflow and cooling performance, cutting down on dust and ensuring peak cooling through those long, hot spells.

Best For

• Routine maintenance of Seeley evaporative coolers.
• Replacing worn, damaged, or mineral-clogged filter pads.
• HVAC technicians and competent DIY owners.

Compatibility

This filter pad is an exact fit for various Seeley Large Breezair Series evaporative coolers, including:

• EXD, EM145, EM190, ES145, ES190
• EV195, EV215, EX145, EX190, EZ195, EZ215
• EXH150, EXH170, EXQ150, EXQ170

If you're running a different model, check fittings and specs before ordering.

Features

• Precision Fit: Engineered to the exact dimensions for specified Seeley Breezair models, ensuring optimal seal and performance.
• Optimal Filtration: Designed to maximise air filtration, reducing dust and allergens in the cooled air stream.
• Efficient Cooling: Ensures even water distribution over the pad surface for consistent and efficient evaporative cooling.
• Durable Construction: Built to withstand typical operational conditions and provide reliable service through the season.

Technical Specifications

What's in the Box

• 1 x Seeley Large Breezair Series Evaporative Cooler Filter Pad (800x635x90mm)

Using It on the Job

1. Isolate Power: Always switch off and isolate power to the evaporative cooler at the mains before starting any work. Consider lockout/tagout procedures if applicable.
2. Drain and Clean: Completely drain the water reservoir and give it a thorough clean, removing any sludge or mineral build-up.
3. Remove Old Pads: Carefully unclip or unseat the old, worn filter pads. Inspect the frame for any damage or corrosion.
4. Install New Pad: Position the new Seeley filter pad (SY122595) securely in its frame, ensuring it's oriented correctly for water flow and a snug fit.
5. Test Operation: Refill the reservoir, restore power, and run the cooler through a full cycle. Check for proper water distribution over the pad and efficient cooling.
6. Final Check: Listen for any unusual noises and visually inspect for leaks after reassembly.

Limitations & Safety Notes

• Always isolate electrical power before performing any maintenance or replacement on the unit.
• Ensure the dimensions of this filter pad (800x635x90mm) match your specific evaporative cooler model.
• While replacing pads improves performance, regular cleaning of the water reservoir and other components is also essential.
• Dispose of old filter pads responsibly, following local waste disposal guidelines.

Tradie Pro Tip: When you've got the cooler open to swap out filter pads, take a moment to inspect the water pump and float valve. A blocked pump or a sticking float can lead to bigger headaches and costly call-outs down the track.

Pair With

Pair with a quality evaporative cooler cleaner to sanitise the reservoir and a new float valve if yours is showing wear. Browse our full range of Seeley Spares for other essential maintenance components.
