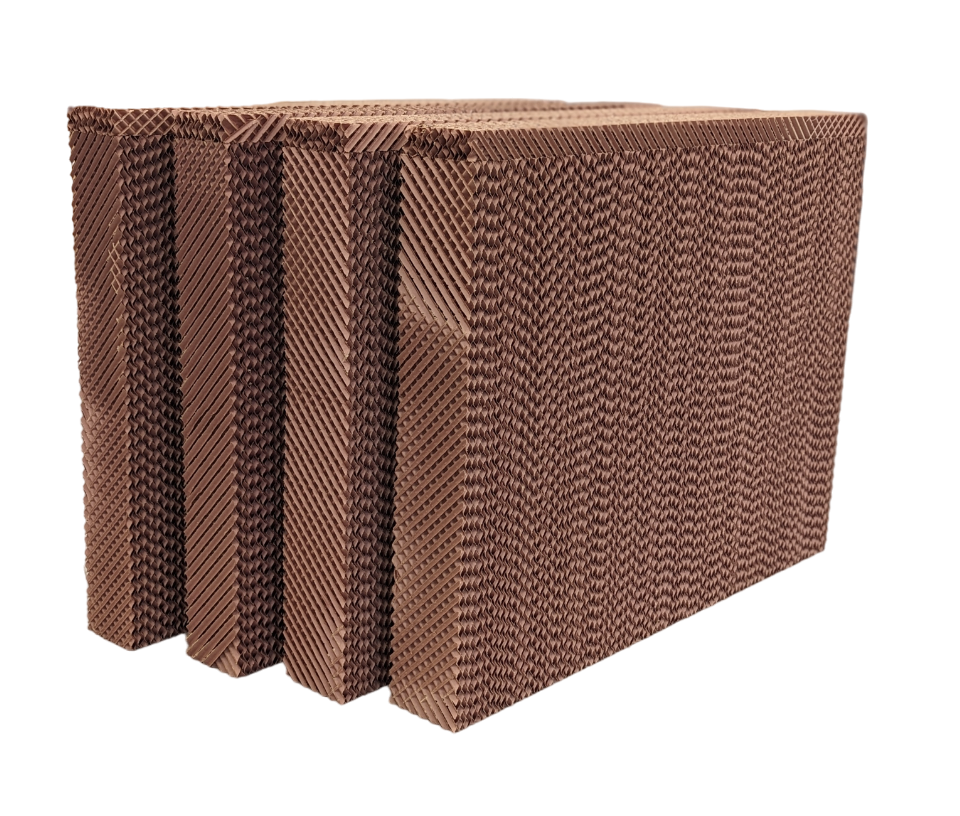

Seeley Filter Pads Large Breezair Series

This set of four Seeley filter pads (SY114620) is designed to keep your large Breezair evaporative cooler running clean and efficient. Properly maintained pads are crucial for good air quality and system performance, especially heading into a long Australian summer.

You'll know it's time to replace them when airflow drops or the pads start feeling brittle – don't wait for your cool air to disappear completely.

Best For

• Maintaining Seeley Breezair evaporative coolers.
• Replacing worn or dirty filter pads on large Seeley units.
• HVAC techs, maintenance teams, and competent DIY owners.

Compatibility

These filter pads are specifically made for a range of large Seeley Breezair evaporative coolers. They are a direct replacement for Seeley Part Number 114620.

They suit models including: EXD, EM105, EM125, ES105, ES125, EV130, EV160, EX125, EZ130, EZ160, EXH130, EZH175, EXQ130, EZQ155, EZQ175. If you're running a different model, check fittings and specs before ordering.

Features

• Direct replacement for Seeley P/N 114620.
• Dimensions of 800mm x 436mm x 90mm for a snug fit.
• Supplied as a complete set of four pads to refresh your unit.
• Designed for optimal water absorption and air filtration.

Technical Specifications

What's in the Box

• 4 x Seeley Filter Pads, 800mm x 436mm x 90mm (SY114620)

Using It on the Job

1. Isolate power to the evaporative cooler at the mains and confirm zero voltage with a meter before commencing work.

2. Remove the old, dirty filter pads, taking note of their orientation and any clips or retaining mechanisms.

3. Clean out any accumulated dust, debris, or mineral deposits from the cooler's sump and water distribution system.

4. Install the new Seeley filter pads, ensuring they are seated correctly and securely within their frames.

5. Restore power and test the unit, checking for even water distribution and proper airflow across all pads.

Limitations & Safety Notes

• Always isolate power to the unit before performing any maintenance.
• Ensure correct pad orientation for optimal performance and drainage.
• Not suitable for evaporative coolers other than the specified Seeley Breezair models.
• Regular inspection and cleaning of the water system are still required, even with new pads.

Tradie Pro Tip

When you're swapping out these pads, take the time to inspect the water pump and float valve. A blocked pump or sticky float valve can quickly ruin new pads and lead to bigger issues down the line.

Pair With

Pair with evaporative cooler pumps and float valves for a complete system overhaul, or check out our range of antimicrobial treatments to keep your water system clean.
