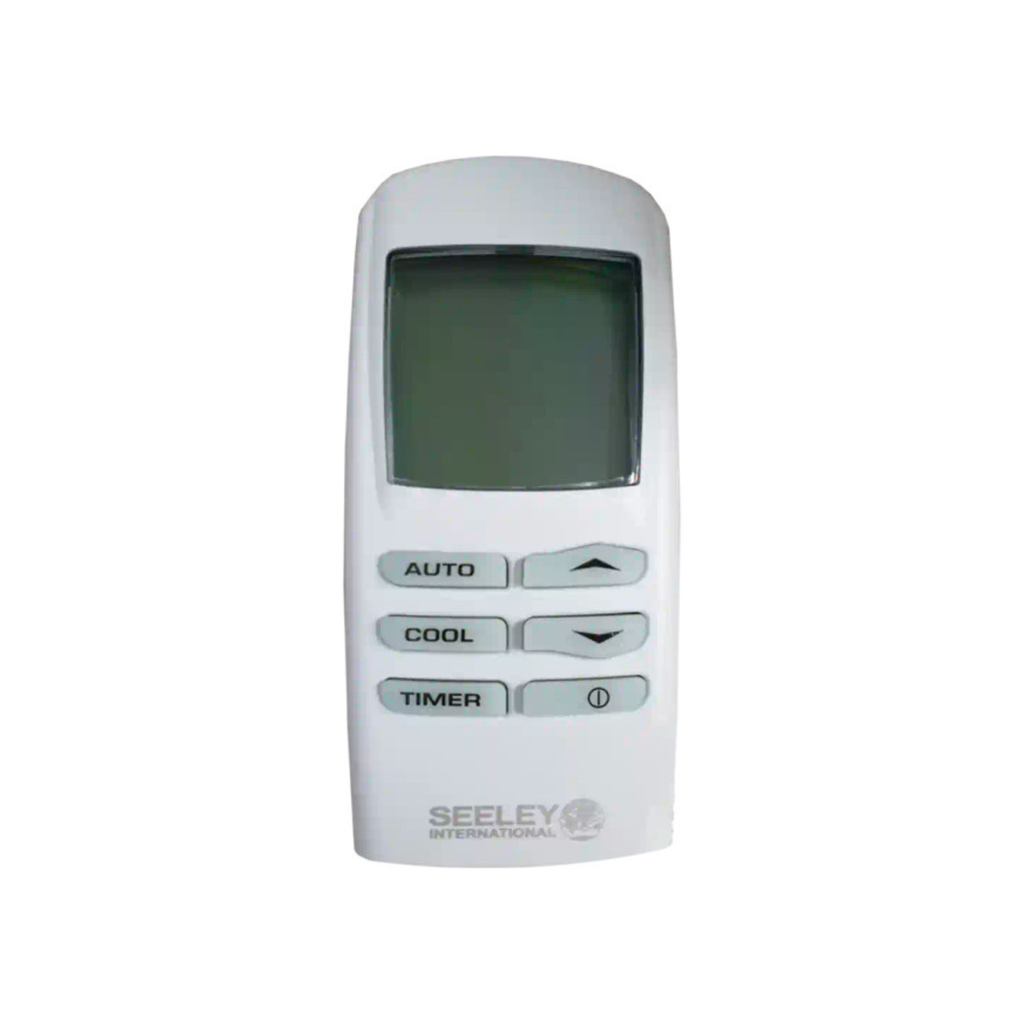

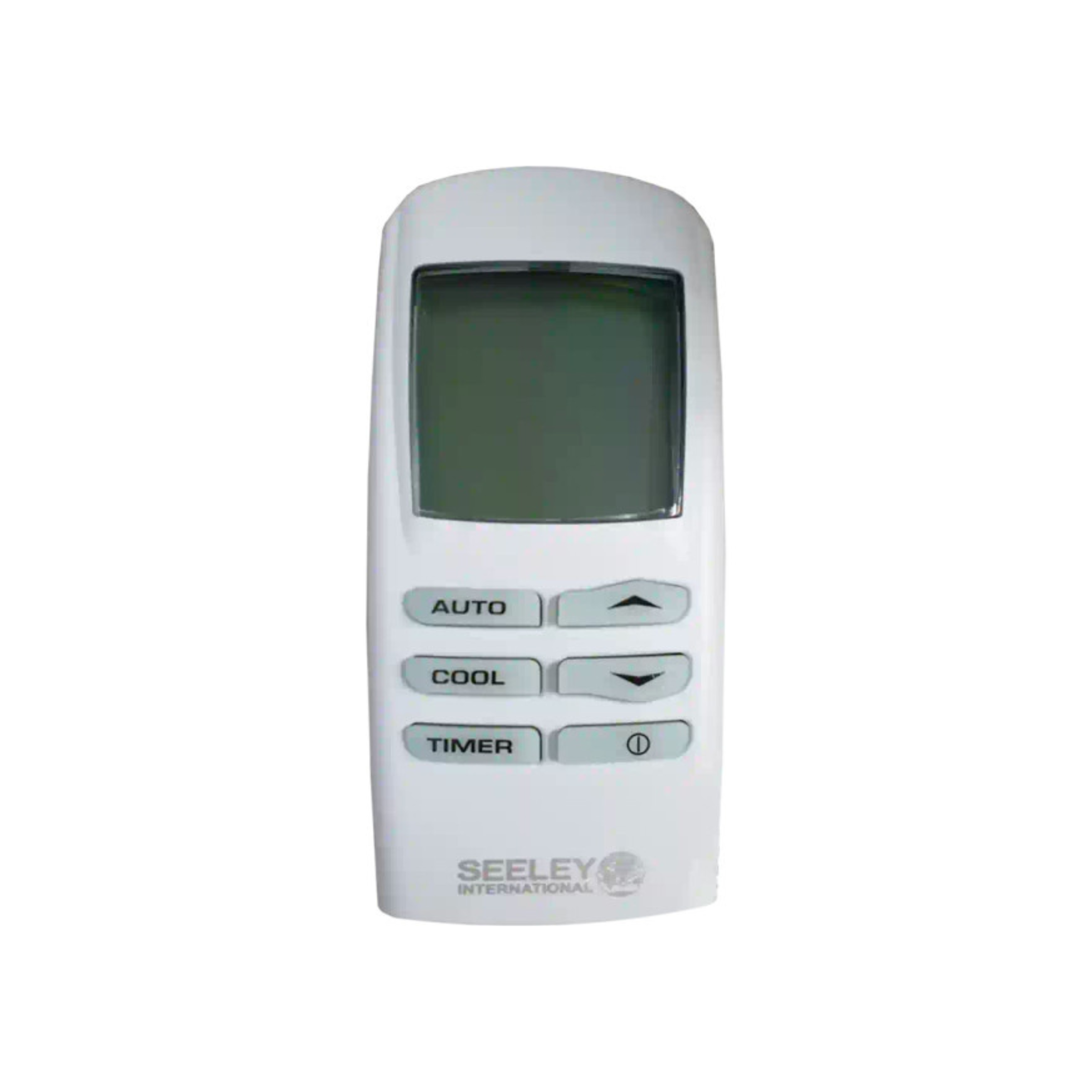

Seeley Coolair Digital Wall Controller & Thermostat

This Seeley Digital Wall Controller and Thermostat (SY117782RP) is your go-to replacement for maintaining comfort in Coolair evaporative cooling systems. Keeping the air moving and the temperature right is crucial, especially during those long Aussie summer days.

A well-functioning controller ensures your evaporative cooler runs efficiently, providing consistent cooling without hassle. Nothing's worse than an evap cooler acting up when the mercury really climbs, so getting the controls sorted quickly makes all the difference.

Best For

• HVAC Service Technicians
• Evaporative Cooler Repairers
• Competent DIY Homeowners maintaining Seeley Coolair systems

Compatibility

The SY117782RP is a direct replacement for older Seeley part numbers 110196, 113449, and 113432. It's designed to suit specific Seeley Coolair Evaporator models. If you're running a different model, check fittings and specs before ordering.

Features

• Digital Display: Provides clear and easy-to-read operational feedback and temperature settings.
• Integrated Thermostat: Allows for automatic temperature control, maintaining desired comfort levels.
• Direct Replacement: Engineered to match the fit and function of superseded Seeley Coolair controllers.
• Reliable Performance: Ensures consistent and effective operation of your evaporative cooler system.

What's in the Box

• 1x Seeley Digital Wall Controller And Thermostat (SY117782RP)

Using It on the Job

1. Isolate Power: Always begin by safely isolating power to the evaporative cooler system at the main switchboard. Use a lockout tagout procedure if available.
2. Remove Old Controller: Carefully detach the old wall controller. Take photos of the existing wiring configuration or label each wire before disconnecting, especially if not colour-coded.
3. Mount New Controller: Position and mount the new SY117782RP controller on the wall. Ensure it sits flush and is level for a professional finish.
4. Connect Wiring: Reconnect the system wiring to the new controller according to the relevant wiring diagram or your labelled connections. Double-check all terminals are secure and correctly matched.
5. Test Functionality: Restore power to the system. Test all functions of the new controller, including fan speeds, water pump operation, and thermostat temperature settings, to ensure proper working order.

Limitations & Safety Notes

• This controller is specifically for compatible Seeley Coolair Evaporator models as listed. It will not work with other HVAC system types.
• Installation involves electrical wiring; ensure power is isolated before commencing work. If unsure, consult a licensed electrician or HVAC technician.
• Always follow Australian electrical safety standards and Safe Work Australia guidance when performing any electrical installation or maintenance.

Before you start pulling wires, snap a quick photo of the existing connections on the old controller. Even if they're colour-coded, it's a handy reference to prevent a rework or blown fuse on start-up.

Pair With

Pair with electrical multimeters for testing circuits, and a good set of insulated hand tools for safe installation. You might also find general evaporative cooler spare parts useful for a full service.
